Quick Details
-
Country of Origin:
-
China
-
Brand:
-
MinewSemi
-
Channels:
-
Supports UWB Channels 5 (6.5 GHz) and 9 (8 GHz)
-
ranging accuracy:
-
within 10-30cm
-
Point to point distance:
-
80m(line of sight)
-
UWB Data rates:
-
850 kbps, 6.8 Mbps
-
BLE 5 data rate:
-
2Mbps,1Mbps, 500 kbps,125kbps
-
Flas/RAM:
-
512 KB/128 KB
-
Module size:
-
26.12*19.13*3.2mm
-
Antenna:
-
Integrated PCB and Ceramic antenna
-
. Integrated PCB and Ceramic antenna:
-
With 3-axis Accelerometer
-
Supports:
-
ToF, DS:TWR, TDOA, PDOA schemes
Quick Details
-
Model Number:
-
MS01SF17
-
Chipset:
-
nRF52833 & DW3120
-
Application:
-
IoT Medical devices Real Time Location System
-
Country of Origin:
-
China
-
Brand:
-
MinewSemi
-
Channels:
-
Supports UWB Channels 5 (6.5 GHz) and 9 (8 GHz)
-
ranging accuracy:
-
within 10-30cm
-
Point to point distance:
-
80m(line of sight)
-
UWB Data rates:
-
850 kbps, 6.8 Mbps
-
BLE 5 data rate:
-
2Mbps,1Mbps, 500 kbps,125kbps
-
Flas/RAM:
-
512 KB/128 KB
-
Module size:
-
26.12*19.13*3.2mm
-
Antenna:
-
Integrated PCB and Ceramic antenna
-
. Integrated PCB and Ceramic antenna:
-
With 3-axis Accelerometer
-
Supports:
-
ToF, DS:TWR, TDOA, PDOA schemes
Products Description

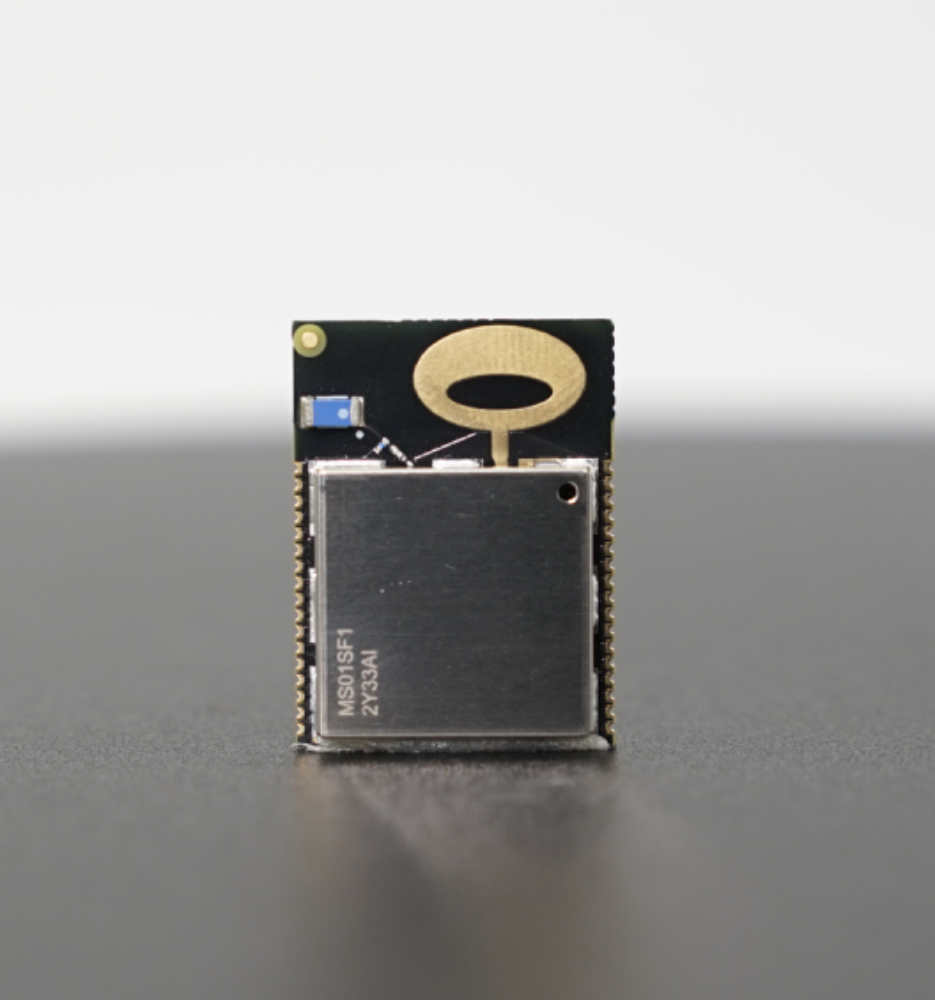

MS01SF1 is an Ultra-Wideband(UWB) transceiver & Bluetooth low energy 5.2 module
MS01SF1 module integrated with the latest Decawave DW3120 SoC for indoor positioning and the advanced Nordic Semiconductor nRF52833 SoC as the central processor with an acceleration sensor, which can meet the requirements of industrial intelligence, production safety, warehousing and logistics, smart cities, public procuratorate and law division.
The nRF52833 supports 23 IO ports, which can be configured as UART, SPI, I2C, PWM and other interfaces, simplify the development for customers.
|
Antenna
|
PCB+ceramic
|
|
SoCset
|
UWB:DW3120
BLE:nRF52833 |
|
Dimension(mm)
|
26.12x19.13x3.2mm
|
|
Ranging Accuracy
|
10-30cm
|
|
Flash/RAM
|
128kB
|
|
Transmission Power
|
-40-+8dBm
|
|
UWB Emission Current
|
150mA
|
|
UWB Receives Current
|
55mA
|
|
BLE Emission Current
|
0dBm-4.6mA
|
|
BLE Receiving Current
|
4.8mA
|
|
GPIO
|
BLE:23 + UWB:4
|
