- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
boyaiot
-
Model Number:
-
BOY-SW02, BOY-SW02
-
Material:
-
Stainless steel, 304 Stainless Steel
-
Application:
-
Water Level Controller
-
Measuring Range:
-
80cm,160cm,240cm,320cm,400cm
-
Resolution:
-
0.5cm
-
Response Time:
-
≤5s
-
Output:
-
RS485
-
Working Current:
-
≤8mA
-
Slave Protection class:
-
IP68
-
Working temperature:
-
-20℃~70℃
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
boyaiot
-
Model Number:
-
BOY-SW02, BOY-SW02
-
Material:
-
Stainless steel, 304 Stainless Steel
-
Application:
-
Water Level Controller
-
Measuring Range:
-
80cm,160cm,240cm,320cm,400cm
-
Resolution:
-
0.5cm
-
Response Time:
-
≤5s
-
Output:
-
RS485
-
Working Current:
-
≤8mA
-
Slave Protection class:
-
IP68
-
Working temperature:
-
-20℃~70℃

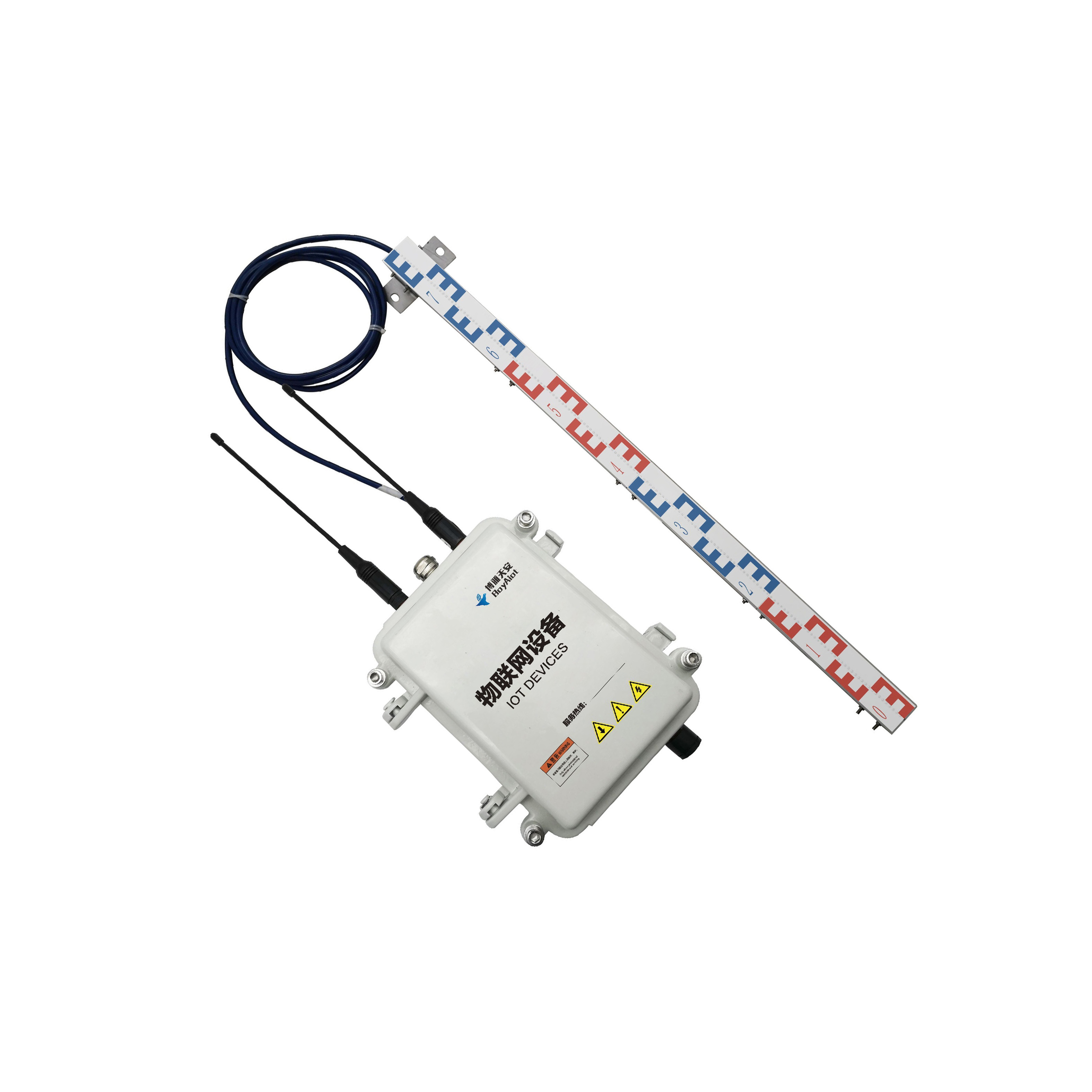

Electronic water
level gauge
is a kind of equipment that uses the principle of water micro-conductivity to measure water level, IP68 waterproof grade, can be splicing a variety of ranges, with stable and reliable, convenient installation, automatic measurement and reporting characteristics.
|
Product name
|
Electronic water level sensor
|
|
Dc power supply (default)
|
DC 10~30V
|
|
Accuracy of water level measurement
|
5mm (full range equal precision)
|
|
Resolution
|
0.5cm
|
|
Output mode
|
RS485 (Modbus protocol)
|
|
Parameter setting
|
Use the provided configuration software to perform configuration through port 485
|
|
Maximum power consumption of main engine
|
0.8w
|
|
Range
|
80cm, 120cm, 160cm, 200cm, 240cm, 320cm,400cm
electronic water gauge section in any combination |
|
Maximum power consumption of a single water-saving ruler
|
0.05w
|
|
Installation mode
|
Wall mounted
|
|
Punch size
|
5mm
|
|
Protection class
|
Slave IP68
|
The electronic water gauge measures the water level height of river, irrigation area and underpass in real time through the induction contact principle, and reports it to the cloud server through 4G/NB-IoT and other communication methods, providing data support for the command and decision-making of industry users, and improving the hydrological measurement capability.
The Wall-mounted vertical installation is often used in the measurement scenarios of road water, culvert water, reservoir, river and lake.
The Wall-mounted inclined installation is often used in agricultural channels, irrigation channels, DAMS and other measurement scenarios。
Q: How fast can you delivery goods?
A: Always 7-15 working days since order confirmed, if need goods urgently, we can arrange expedited production.
Q: How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.Besides calibartion, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. Formore goods we can arrange by air or by Sea.
A: Always 7-15 working days since order confirmed, if need goods urgently, we can arrange expedited production.
Q: How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.Besides calibartion, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. Formore goods we can arrange by air or by Sea.
