Ningbo Master Soken Electrical Co., Ltd. established in 1999, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-

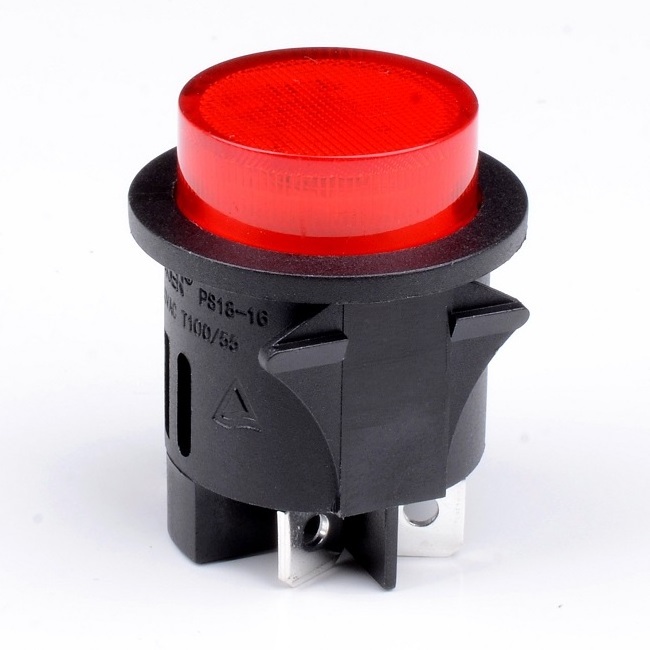

PS18-16-2
-
Product type:
-
Push button switch
-
Operation type:
-
Self-locking or reset
-
Housing color:
-
Black, white
-
Lamp color:
-
neon bulb, rice bulb, Led
-
Button color:
-
red, orange, green, blue
-
Shell Material:
-
PA66
-
contacts:
-
silver plated
-
Certificate:
-
ROHS CQC TUV
-
Insulationresistance:
-
≥100mΩ
-
Contact Resistance:
-
≤100mΩ
-
Certification:
-
TUV
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
16A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
PS18-16-2
-
Product type:
-
Push button switch
-
Operation type:
-
Self-locking or reset
-
Housing color:
-
Black, white
-
Lamp color:
-
neon bulb, rice bulb, Led
-
Button color:
-
red, orange, green, blue
-
Shell Material:
-
PA66
-
contacts:
-
silver plated
-
Certificate:
-
ROHS CQC TUV
-
Insulationresistance:
-
≥100mΩ
-
Contact Resistance:
-
≤100mΩ
-
Certification:
-
TUV
|
Rating
|
16(10)A 250VAC (TUV)
|
|
Contact Resistance：
|
100mΩ Max
|
|
Insulation Resistance：
|
500VDC，100MΩ Min
|
|
Dielectric Strength：
|
Terminal and terminal：1500VAC 5s
|
|
|
Terminal and ground：3000VAC 5s
|
|
Operating Temperature：
|
-25～85°C
|
|
Electrical Life：
|
10000 Cycles
|
|
Applicable standard
|
IEC61058-1
|
|
Contact leg
|
Brass T=0.8mm
|
|
|
|
|
Contact
|
Silver alloy
|
|
|
|
|
Terminals
|
Brass T=0.8mm
|
|
|
|
|
Case
|
PA66
|
|
|
|
|
Gear
|
PA66
|
|
|
|
