2.How to strip and strip length?(Assistant) strip method as below picture.
Please contact us for further recommendations
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WL-8150
-
Name:
-

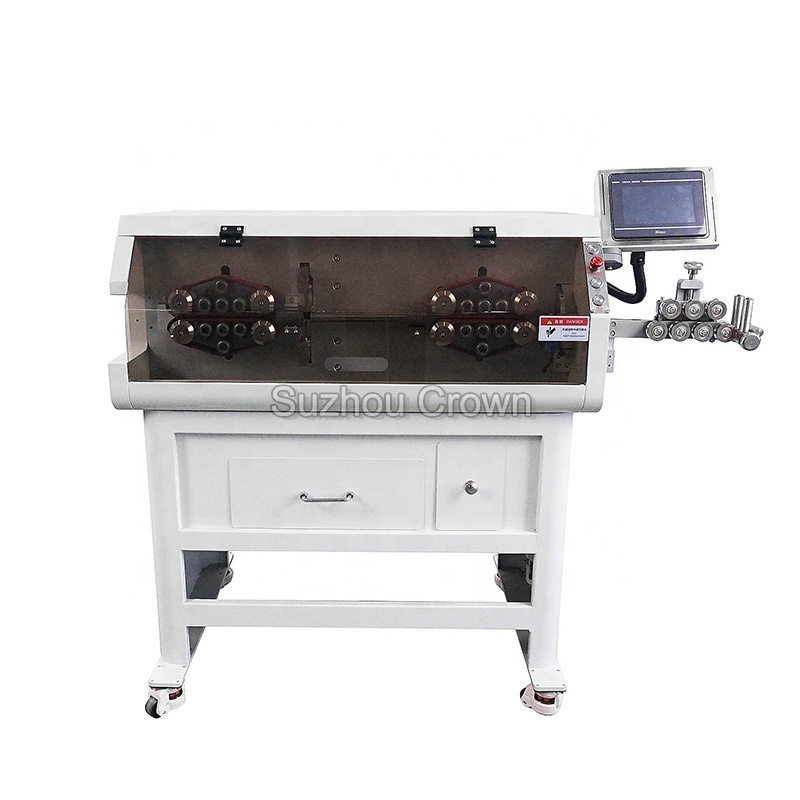

Automatic wire cable cutting and stripping machine
-
Function:
-
Cutting and stripping
-
Conductor Cross-Section:
-
10-150mm²
-
Stripping Length:
-
Head 1-800mm Tail 1-400mm
-
Max. Conduit Diameter:
-
33mm
-
Production Rate:
-
1800pcs/h (based on wire size)
-
Wire Feed Method:
-
Belt feeding wire, no indentation on cable.
-
Cutting Length:
-
1-99999.99mm
-
Air Pressure:
-
0.5-0.8 Mpa (Clean air source)
-
Full Load Current:
-
30A ((min.18A allowed)
Quick Details
-
Usage:
-
Stripping
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CROWN
-
Model Number:
-
WL-8150
-
Name:
-
Automatic wire cable cutting and stripping machine
-
Function:
-
Cutting and stripping
-
Conductor Cross-Section:
-
10-150mm²
-
Stripping Length:
-
Head 1-800mm Tail 1-400mm
-
Max. Conduit Diameter:
-
33mm
-
Production Rate:
-
1800pcs/h (based on wire size)
-
Wire Feed Method:
-
Belt feeding wire, no indentation on cable.
-
Cutting Length:
-
1-99999.99mm
-
Air Pressure:
-
0.5-0.8 Mpa (Clean air source)
-
Full Load Current:
-
30A ((min.18A allowed)
Product Paramenters
Automatic battery cable wire cutting stripping machine thick wire stripping machine
Function : cutting and stripping
Application : Sheathed cables, PVC cables,BV cable ,battery cable ,new energy cable and other cable under 16mm diameter .
Strip : Strip outer sheath of single conductor cables or multi-conductor cables
Applicable wire sizes: 10 to 150 mm2
|
Model
|
WL-8150
|
|
Function
|
Cable cutting and stripping
|
|
Conductor Cross-Section
|
10-150mm²
|
|
Cutting Length
|
1-99999.99mm
|
|
Cutting Length Tolerances
|
≤(0.002*L) mm L=cutting length
|
|
Stripping Length
|
Head 1-800mm
Tail 1-400mm RV cable full strip max 120mm, Sheathed wire max 500mm |
|
Max. Conduit Diameter
|
Φ33mm
|
|
Production Rate
|
1800pcs/h (based on wire size)
|
|
Dispplay Screen
|
7 inch touch screen
|
|
Drive Method
|
32 wheels drive
|
|
Wire Feed Method
|
Belt feeding wire, no indentation on cable.
|
|
Power Supply
|
110/220VAC, 50/60Hz
|
|
Power
|
6900W
|
|
Dimensions
|
147*76*134cm
|
|
Full Load Current
|
30A ((min.18A allowed)
|
|
Air Pressure
|
0.5-0.8 Mpa (Clean air source)
|
|
Special Function 1
|
Special cable customizable according to sample wire
|
|
Special Function 2
|
Strip pressure increase, front end fully stripped catheter, and include encoder
|
|
Auxiliary Function
|
Material holding clamp, material holding robot, wire collecting holder
(please add module isolation when using) |
Self select (confirm )model
1.Wire diameter (Most important )
Product Description
Main Features
* Applicable wire sizes: 10 to 150 mm2
* Long stripping length than normal machines
* Belt feeding cables, no embossing and scratches
* Uses specific axial positioning and advanced tool holders, improving accuracy and production rate
* Optional auxiliary equipment: automatic wire feeder, wire collector, etc
* Full servo motor equipment, upgrated configuration.
Sample
Related Products
|
Model
|
WL-30HT
|
WL-70
|
WL-120S
|
WL-120XZ
|
|
Name
|
Big square sheathed wire stripping machine
|
Wire stripping machine
|
Wire stripping machine (Tool holder is screw)
|
Wire stripping machine (Rotary knife type)
|
|
Front stripping
|
sheathing wire full stripping MAX 120mm
|
RV cable full stripping MAX 120mm ,sheathing wire full stripping MAX500mm
|
RV cable full stripping MAX 120mm ,sheathing wire full stripping MAX500mm
|
Cable full stripping MAX 120mm （Special custom can stripping ≥1000mm）
|
|
Rear stripping
|
sheathing wire full stripping MAX 240mm
|
Cable full stripping MAX 260mm
|
Cable full stripping MAX 260mm
|
Cable full stripping MAX 270mm
|
|
Wire available
|
Wire, cable, sheathing wire etc
|
Cable, sheathing wire,pvc etc
|
Cable, sheathing wire,pvc etc
|
Cable, sheathing wire,pvc etc
|
|
Stripping range
|
4-30mm2 (with 5 cores or less sheathed wire)
|
10-70mm2
|
10-120mm2
|
10-120mm2
|
|
Cutting length
|
1mm-99999.99mm
|
1mm-99999.99mm
|
1mm-99999.99mm
|
1mm-99999.99mm
|
|
Max diameter of catheter
|
Φ16
|
Φ25
|
Φ30
|
7MM～30MM
|
Certifications
Our Factory
Packing & Delivery
FAQ
Our Services
1, One year guarantee for the whole machine except blade and belt.
2, 24 hours technical support on line .
3, User-friendly English software and user manual.
-Purchase guidance
If you are not sure which model is the best option within your budget, please send us your detailed requirements , it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help. We provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed, such as parameter meter set-up for difficult-to process wires. Our engineers are here for your assistance.
---Others
Compensation: If any unqualified product is found, we’ll pay the compensation or send newly qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
