Quick Details
-
Product Name:
-
20W 136-174MHz VHF Power Amplifier for Radio Repeater
-
Frequency Range:
-
136-174MHz
-
Gain:
-
50dB
-
Output Power:
-
43dBm
-
In-Band Ripple:
-
≤2dB
-
Input/Output VSWR:
-
≤1.3
-
Working Voltage:
-
12VDC
-
Working Current:
-
6A
-
Connector:
-
SMA-Female
-
Size:
-
150*90*25 (mm)
Quick Details
-
Brand Name:
-
XINLUN
-
Model Number:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
20W 136-174MHz VHF Power Amplifier for Radio Repeater
-
Frequency Range:
-
136-174MHz
-
Gain:
-
50dB
-
Output Power:
-
43dBm
-
In-Band Ripple:
-
≤2dB
-
Input/Output VSWR:
-
≤1.3
-
Working Voltage:
-
12VDC
-
Working Current:
-
6A
-
Connector:
-
SMA-Female
-
Size:
-
150*90*25 (mm)

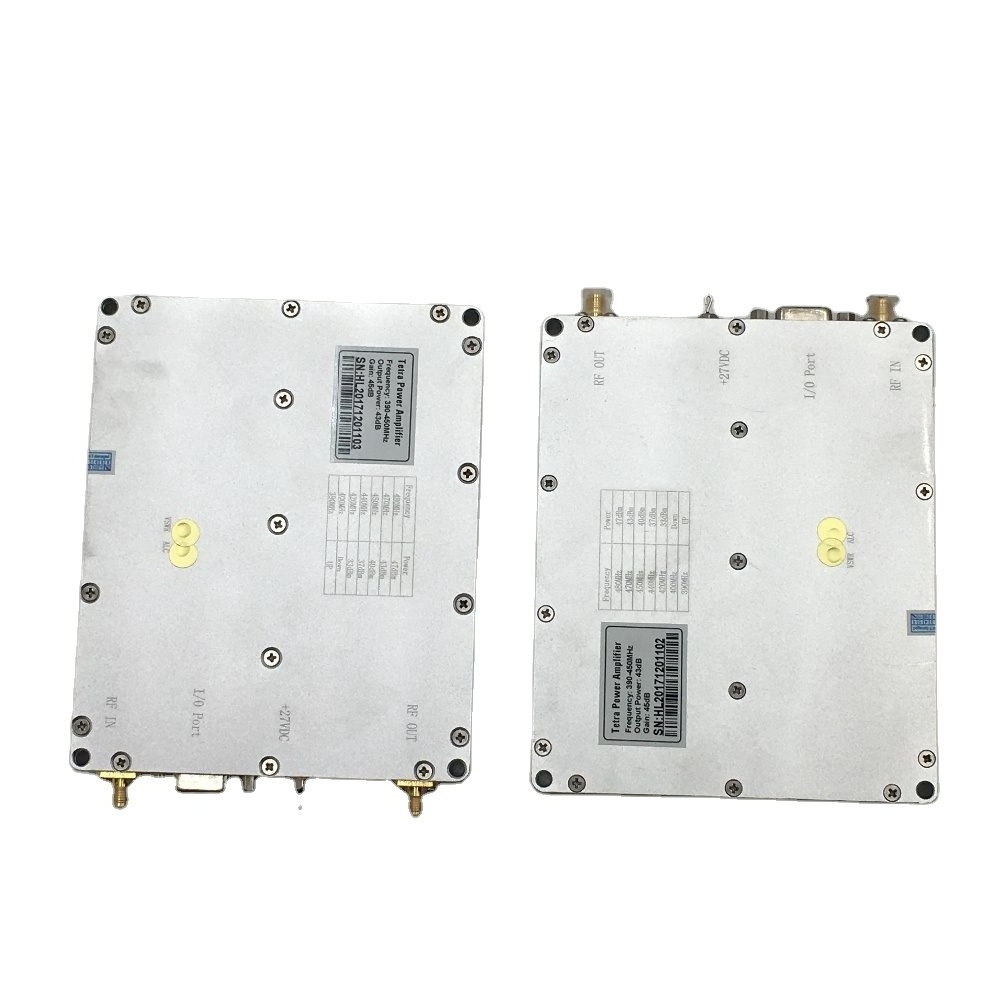

20W VHF UHF Power Amplifier for Radio Repeater
Feature:
* High Efficiency, More than 50% Efficiency
* Bottom of Red Copper, for good radiation
* Shutdown over High-Temperature, over High-VSWR, Over High-Power
* Auto Reset after 30s from shutdown of over-temperature,over High-VSWR, Over High-Power
* I/O Port is compatible with DB15 Serial Port and RS485
* Dimension, gain, and Output Power can be customized
Specifications:
|
Electrical Specifications |
||
|
Frequency Range |
VHF |
136-174MHz |
|
UHF |
400-470MHz |
|
|
Gain |
50dB |
|
|
Output Power |
10W |
40dBm |
|
20W |
43dBm |
|
|
Gain Adjustable |
31dB |
|
|
In-Band Ripple |
≤2dB |
|
|
Input/Output VSWR |
≤1.3 |
|
|
Working Voltage |
12VDC |
|
|
Working Current |
10W |
4A |
|
20W |
6A |
|
|
RF Input/ Output Ports |
SMA-Female |
|
|
Power Supply |
Pull-core Capacitance |
|
|
To Monitoring function (DB10,Male) |
PIN1: GND |
|
|
PIN3:P/L (Output RF Power; Max voltage:4V) |
||
|
PIN5: VSWR (Reflected RF Power, Max voltage:4V) |
||
|
PIN7: LE :Enable, High Level: OFF; Low Level: ON |
||
|
PIN9: +8V Output |
||
|
PIN2: 1dB |
||
|
PIN4:2dB |
||
|
PIN6:4dB |
||
|
PIN8:8dB |
||
|
PIN10:16dB |
||
|
Mechanical Specifications |
||
|
Dimensions |
150*90*25 (mm) |
|
|
Weight |
About 1kg |
|
|
Operating Temperature |
-20 ℃ ~+65 ℃ |
|
|
Store Temperature |
-30 ℃ ~+75 ℃ |
|
