Quick Details
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8200-24P-2FM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 Ports L2 Managed PoE Switch
-
Device Type:
-
Switch - 24 Ports - Managed
-
Condition:
-
100% Original Brand
-
Application:
-
Telecommunication
-
Port:
-
24*1000M RJ45+2*Fiber SFP
-
Power supply:
-
AC100~240V,50~60Hz
-
Power consumption:
-
400W
-
Warranty:
-
1 Years
-
Keywords:
-
24 port PoE switch
-
Certification:
-
CE RoHS FCC
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56Gbps
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8200-24P-2FM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 Ports L2 Managed PoE Switch
-
Device Type:
-
Switch - 24 Ports - Managed
-
Condition:
-
100% Original Brand
-
Application:
-
Telecommunication
-
Port:
-
24*1000M RJ45+2*Fiber SFP
-
Power supply:
-
AC100~240V,50~60Hz
-
Power consumption:
-
400W
-
Warranty:
-
1 Years
-
Keywords:
-
24 port PoE switch
-
Certification:
-
CE RoHS FCC

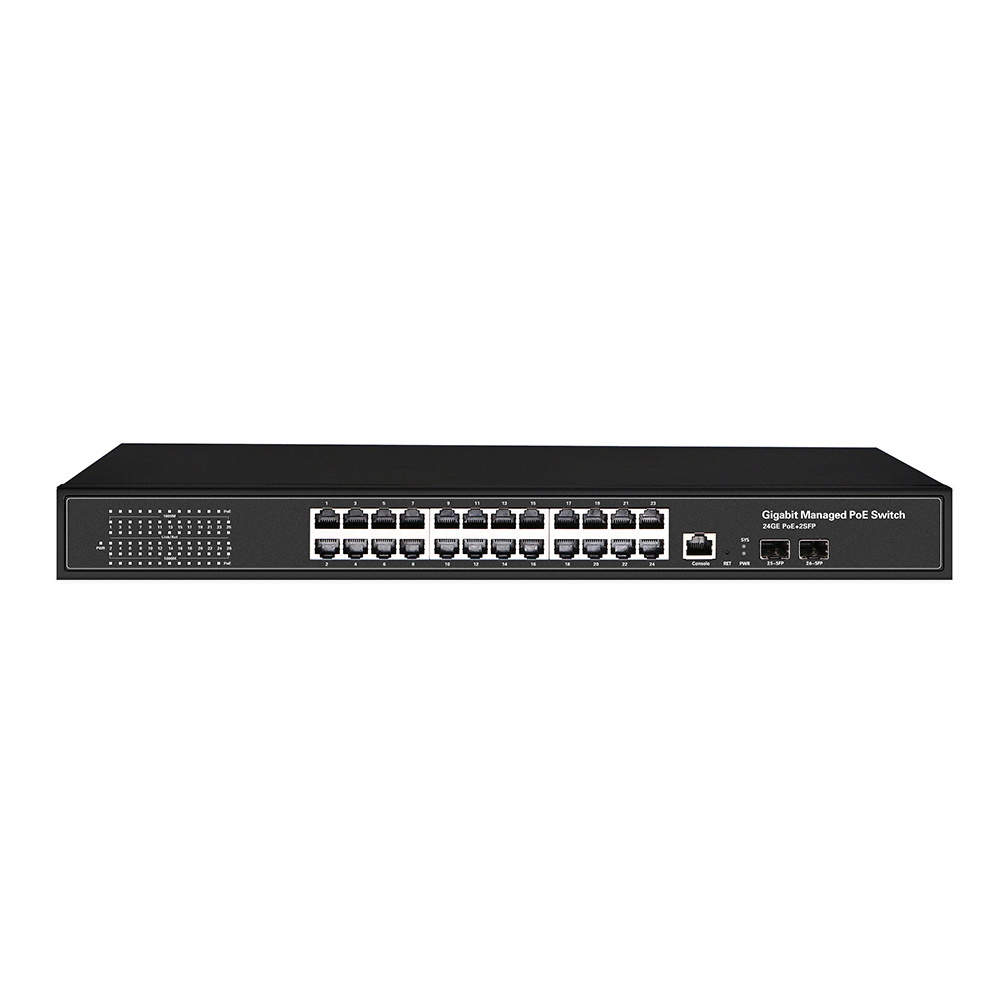

ODM l2 l3 OpenWrt IPv6 management 24 port 400W layer 2 managed 2 x 1G SFP gigabit CCTV network PoE switch
Overview
TS8200-24P-2FM Gigabit managed PoE switch, support 802.3at/af-compliant PoE , single port PoE power supply of up to 30W; advanced security strategies and rich layer 2 management features.This JetStream gigabit managed switch is cost-effective for the ideal small an d medium business solution.
Main Management Features
>> Full gigabit access
>> Comprehensive safety protection system
>> Powerful VLAN capabilities (IEEE, 802.1Q, VLAN, meet the needs of different users, make the network more convenient, efficient and safe.)
>> Rich QoS strategy (IEEE802.1p and DSCP)
>> Multle-level access control policy
>> Reliability design (STP/RSTP/MSTP, IGMP Snooping technology)
Specifications
|
Hardware |
|
|
Model |
TS8200-24P-2FM |
|
Port |
24*10/100/1000M |
|
2*Gigabit fiber SFP |
|
|
Management port |
1*Console |
|
Reset KEY |
1 |
|
bandwidth |
56Gbps |
|
Packet forwarding |
40.32Mpps |
|
POE port |
16 |
|
POE standards |
IEEE802.3af/at max 30W/port |
|
CPU |
500MHZ |
|
RAM |
128M |
|
MAC |
8K |
|
Buffer |
4.1M |
|
FLASH |
16M |
|
Transmission Mode |
Store and forward |
|
Environmental |
working temperature : 0℃~50℃ |
|
Storage temperature : -40℃~70℃ |
|
|
Operating humidity : 10%~90% Non coagulation |
|
|
Storage humidity : 5%~95% Non coagulation |
|
|
Product size |
440(L)*290(W)*45(H)mm |
|
Packing size |
497(L)*393(W)*97(H)mm |
|
Weight |
5kg |
|
Power in |
AC 100~240V 50/60Hz |
|
Power |
300W |
