HD-M444 is a professional high integration device which includes tuner demodulation, multiplexing, and modulation.

HD-M444 is a professional high integration device which includes tuner demodulation, multiplexing, and modulation.

FOB Reference Price: Get Latest Price

≥1 Pieces

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: HD-M444

output:: 4RF output(DVB-C/DVB-T/ATSC/ISDBT/DMBT)

Warranty Time:: 1 year

Power:: AC100~240V,50/60Hz

Dimension:: 550mm*515mm*140mm

weight:: 6KG

Environment:: 0~45℃(work);-20~80℃(storage)

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Kunda

Model Number:: HD-M444

Product name:: HD-M444

output:: 4RF output(DVB-C/DVB-T/ATSC/ISDBT/DMBT)

Warranty Time:: 1 year

Power:: AC100~240V,50/60Hz

Dimension:: 550mm*515mm*140mm

weight:: 6KG

Environment:: 0~45℃(work);-20~80℃(storage)

Product Description

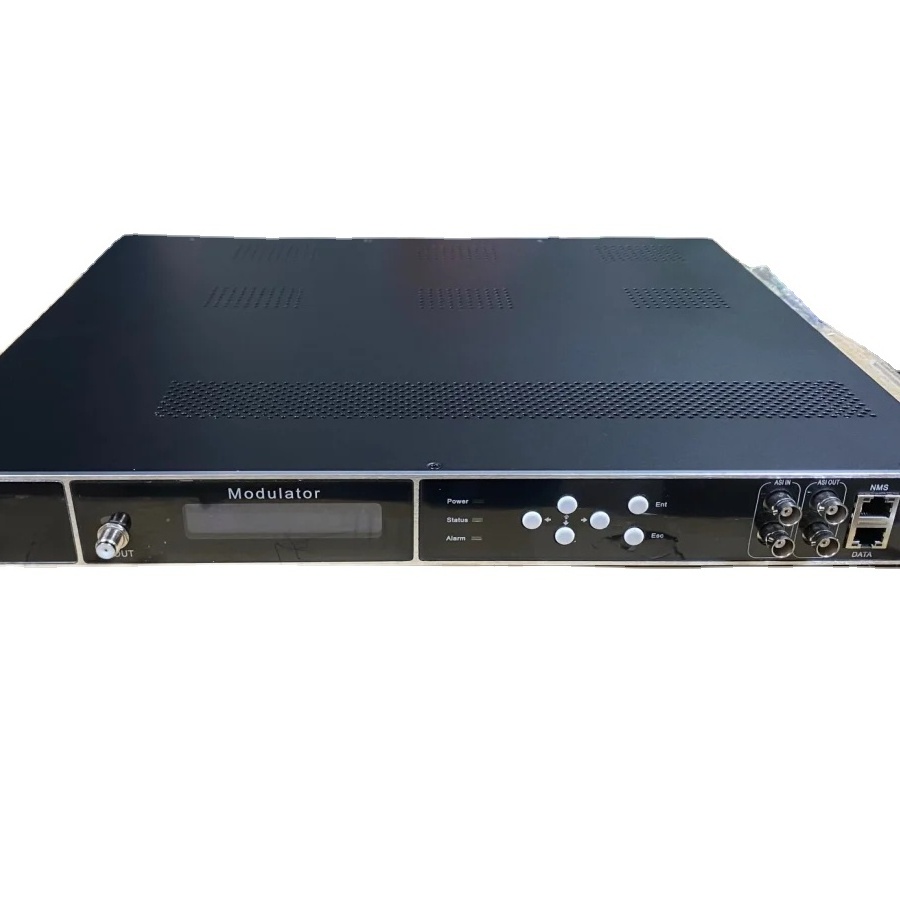

HD-M444 is a professional high integration device which includes tuner demodulation, multiplexing, and modulation. It supports FAT TUNER , HD Y RCA all in one equipment , its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Products Description

Features

 1000M IP output over UDP and RTP protocol(MPTS and SPTS)  Support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 DTMBT,、ISDBT, etc. ) input, or mixed use ( e.g., 4 - way dvb - t and 4 - way ATSC input at the same time, making up 8 - way input )  4 RF output (ATSC、ISDBT、DTMBT、DVB-C/-T)  2 ASI inputs  2 ASI Independent output (optional) as copy of MPTS  Support “Null PKT Filter” function  Support PID Remapping/ PCR accurate adjusting  PID pass  LCD、key function  Control via web management, and easy updates via web
