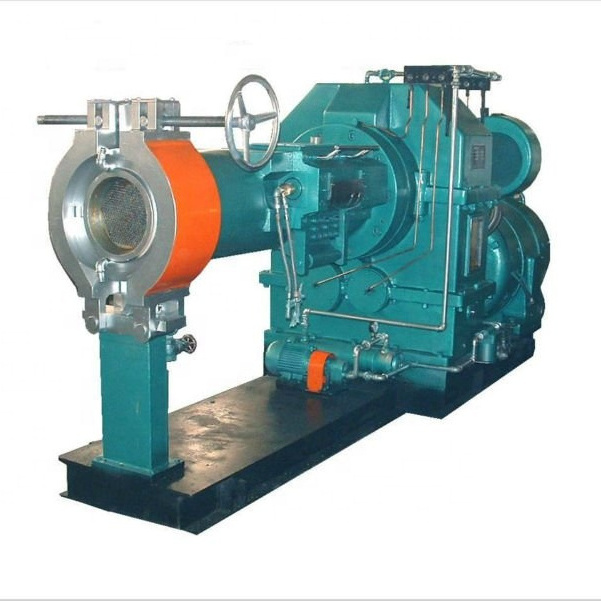

EPDM Window and Door Rubber Sealing Strip Making Machine Extruding Line

EPDM Window and Door Rubber Sealing Strip Making Machine Extruding Line

FOB Reference Price: Get Latest Price

≥2 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Screw Speed (rpm):: 60 - 100 rpm

Screw L/D Ratio:: 14:1

Brand Name:: CGY

Voltage:: customer demand

Dimension(L*W*H):: 23200x1900 x1800mm

Power (kW):: 18

Weight (KG):: 2000 KG

Year:: 2023

Type:: Rubber Extruder

Name:: Sealing Strip Extrusion Machine

advantage:: high efficiency

rator::: plated with chrome and polished

Colour::: According to your need

Quick Details

Output (kg/h):: 150 kg/h

Place of Origin:: Shandong, China

Screw diameter (mm):: 75 mm

Screw Speed (rpm):: 60 - 100 rpm

Screw L/D Ratio:: 14:1

Brand Name:: CGY

Voltage:: customer demand

Dimension(L*W*H):: 23200x1900 x1800mm

Power (kW):: 18

Weight (KG):: 2000 KG

Year:: 2023

Type:: Rubber Extruder

Name:: Sealing Strip Extrusion Machine

advantage:: high efficiency

rator::: plated with chrome and polished

Colour::: According to your need

EPDM Window and Door Rubber Sealing Strip Making Machine Extruding Line

PVC seal strip manufacturing machine

Process: mixing-pelletizing-extruding-cooling-winding

Parameters:

Model	SJ-45	SJ-55	SJ-65	SJ-80	SJ-90
Screw diameter(mm)	φ45	φ55	φ65	φ80	φ90
Center Hight(mm)	1000	1000	1000	1000	1000
Production capacity (kg/h)	60	80	120	180	220
Screw rotational speed(r/min)	60	60	60	60	60
Main Power(kw/h)	7.5	11	15	22	30
Heater ouan	3+2	3+2	4+2	4+2	4+4
Total installed capacity(kw)	12	20	30	42	55
Weight(t)	1	1.2	1.5	1.8	2.2

Soft PVC sealing strip extrusion machine
1-Raw material:Soft PVC
2-Diameter of the screw:65mm

The whole plant are composed of extruder, water cooling tank, hauling machine, double roller and coordinated with different specification of moulds to produce soft PVC sealing strips for aluminum door and windows to instead of the rubber strips.

Complete production line:

1- Automatic material dryer and feeder SJ-65

2-Extruder

Model:LXSJ-65/28

Diameter of screw: φ65mm

Capacity:70-80kgs/h

L:D: 28:1

Material of the screw: 38CrMoALA with nitrogen treatment HV:>800

Material of the barrel: 38CrMoALA nitrogen treatment HV:>800

Power of motor:22kw

Inverter: FUJI

Element: TE and OMRON

Material of heater: ceramic heater

Material: Best stainless steel

3-Water cooling tank

Length:4 meters

Material: Stainless steel

Adjustment distance:500mm

Adjustment direction: three-dimensional

4-Hauling machine

Length of clamp:500mm

Width of clamp:120mm

Adjustment distance:500mm

Clamping: By pneumatic

Speed: 0.6-6m/min

Power of motor:1.1kw

Inverter: FUJI

5-Double roller Tracter (easy to operate)

6-Air compressor

7-Crusher

8-Moulds

EPDM sealing strip extrusion machine

Process: kneader-open mixing mill-extruder-curing -cooling-winder

No.	Items	Specification	Qty
	HX-55 Glazing Gasket extrusion line		1 set
2.1	55 single screw extruder	Φ55*28D	1 set
2.2	Die Head	Depends on clients samples	1set
2.3	Horizontal Vulcanizing Oven	4 M
2.4	Stainless Steel Water Cooling Trough	3 M	1set
2.5	Haul-off Unit	PU V-belt	1set
2.6	Single-station Winder	standard	1set

Main Technical Parameters:

1. Screw Diameter:55mm
2. L/D: 28:1;
3. Screw Rated Speed: 0-90rpm (adjustable)
4. Output speed: 10-15m/min
5. Center-Height: 1050mm±50mm
6. Motor (AC): variable frequency motor
7. Main Motor Power: 15kw
8. Inverter: ABB ( Switzerland)
9. Temperature-controlled Meter: High precision master temperature controlled meter, Tolerance: ±1 centigrade degree.
10. Color: blue with white(depends on customers preference)
11. Dimension of the line: about 12000mm*1000mm*1650mm
12. Tri-phase Voltage: 380V, 3PH, 50 Hz

WHY CHOOSE US?

Qingdao Chaoguangyue Rubber Machineny manufacting co.,itd

1. specialized in rubber machinery over 20 years;

2.100% real manufacturer, rather than a trading company;

3.Two-year guarantee for whole machine

4.We can design and manufacture all kinds of non-standard machinery according to customers requirement.

5.Our products have passed ISO9001:2008 International Quality Management System Certification, the EURO Cert

6.Main Clients:Southeast Asia, Central Asia, Middle East, South and North America, Europe and other countries and regions.

Product::

Our Plant and machines:

Packing and delivery:

Certification: CE,SGS,ISO9001

FAQ:

1 .Q:Are you a factory or trading company? A:We are factory.

2 .Q:Where is your factory?How can i visit ?

A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.

3. Q:How does your factory control the quality of machines and after sales service?

A:Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.

4. What’s your payment term?

A:Common is 30% deposit by T/T,the balance paid against shipping documents.

Or L/C at sight.

5 .Q:Can you design new product for us?

A:we have a professional development team that make new products according to your requirements.
