Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V 50Hz 1P
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1300*2500*200mm
-
Spindle:
-
CS 4.5 kw water cooling spindle
-
Control system:
-
DSPB18 4 axis control system
-
Motor and driver:
-
750W leadshine easy servo motor
-
Working Table:
-
Aluminum T-slot with vacuum working table
-
limit switch:
-
Japan OMRON limit switch
-
Software systerm:
-
Artcam software 2012 Carcktype
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V 50Hz 1P
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1300*2500*200mm
-
Spindle:
-
CS 4.5 kw water cooling spindle
-
Control system:
-
DSPB18 4 axis control system
-
Motor and driver:
-
750W leadshine easy servo motor
-
Working Table:
-
Aluminum T-slot with vacuum working table
-
limit switch:
-
Japan OMRON limit switch
-
Software systerm:
-
Artcam software 2012 Carcktype
-
After-sales Service Provided:
-
Online Support
Products Description
Blue Elephant CNC 4*8ft linear auto tool changer wood cnc router 1325 atc cabinet door making machine for wood furniture
Features:
* Adopting the linear automatic tool change mode, which has fast tool change speed and high processing efficiency.
* Equipped with independent control cabinet, it is more convenient in terms of operation and maintenance.
* With 9kw air-cooled spindle, the spindle speed is fast and the cutting ability of the work piece is strong.
* Adopting international imported brand parts, which guarantees the longest service life of the machine.
* Equipped with independent control cabinet, it is more convenient in terms of operation and maintenance.
* With 9kw air-cooled spindle, the spindle speed is fast and the cutting ability of the work piece is strong.
* Adopting international imported brand parts, which guarantees the longest service life of the machine.
Product Paramenters
|
Model
|
ELECNC-1325ATC
|
|
Working area
|
1300*2500*200mm
|
|
Spindle
|
9KW ATC HQD air-cooled spindle
|
|
Inverter
|
11KW Fuling inverter
|
|
Tool magazine
|
6pcs linear tool storage
|
|
Control system
|
Taiwan LNC with MPG handle wheel
|
|
Motor and driver
|
850W Leadshine servo motor and 1KW Servo driver
|
|
Switch
|
Japan OMRON
|
|
Working Table
|
Aluminum T-slot &vacuum table
|
|
limit switch
|
Japan OMRON limit switch
|
|
Lubrication system
|
1.5L Auto oil lubrication system
|
|
Voltage
|
380V 3phase 60HZ
|
|
Vacuum pump
|
7.5KW vacuum pump, two stage ,air-cooled , two impeller
|
|
X,Y,Z Transmission
|
Taiwan J &T Helical rack and gear box , 1.25M ,
Taiwan PMI #25 RailTaiwan PMI #25 Linear Bearing& Taiwan TBI Ball Screw #2505
|
|
Cable
|
Shanghai Cardiff cable,CE ,UL certification
|
|
Dust collector
|
Complete 1.5KW new type dust collector , CE certification , the vacuum suction is same as 4KW old type
|
|
Tool sensor
|
Auto tool sensor
|
Recommend Products
Product Detalis

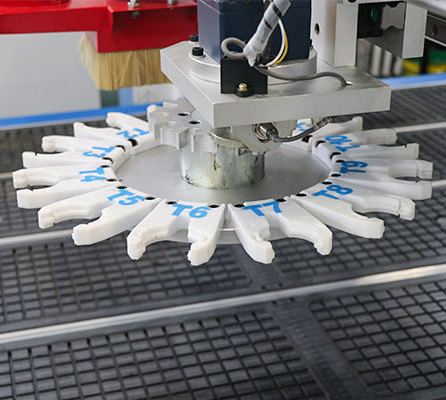

Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.
CNC Head
ATC CNC router selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
Control system
The control system of CNC router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis,4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the itelligence of the device.
Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise.
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Safety system
ATC CNC router has the unique safety protection system and provides external emergency stop function for equipment users. This function can effectively pro-
tect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among
users.
