Operating Temperature :
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow105 Fabrice Filter
Service:
7*24 Hours Expert Consultation Online
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
2.63 kg
-
Product name:
-
OPTIPOW105 Air Cleaning Valve
-
Usage:
-
Industrial Air Dust Collector
-
Name:
-
Air Cleaning Solenoid Valve
-
Style:
-
Alstom Air Filter
-
Product Name:
-
Fabric Bag Filter
-
Standard:
-
Alstom Optipow105 Solenoid Valve
-
Model:
-
OPTIPOW105 V1617803-0200
-
Medium:
-
Air
-
Voltage:
-
120V
-
Keyword:
-
Optipow105 Solenoid Valve
Quick Details
-
Core Components:
-
Valve
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SMCC
-
Weight:
-
2.63 kg
-
Product name:
-
OPTIPOW105 Air Cleaning Valve
-
Usage:
-
Industrial Air Dust Collector
-
Name:
-
Air Cleaning Solenoid Valve
-
Style:
-
Alstom Air Filter
-
Product Name:
-
Fabric Bag Filter
-
Standard:
-
Alstom Optipow105 Solenoid Valve
-
Model:
-
OPTIPOW105 V1617803-0200
-
Medium:
-
Air
-
Voltage:
-
120V
-
Keyword:
-
Optipow105 Solenoid Valve
Product Overview

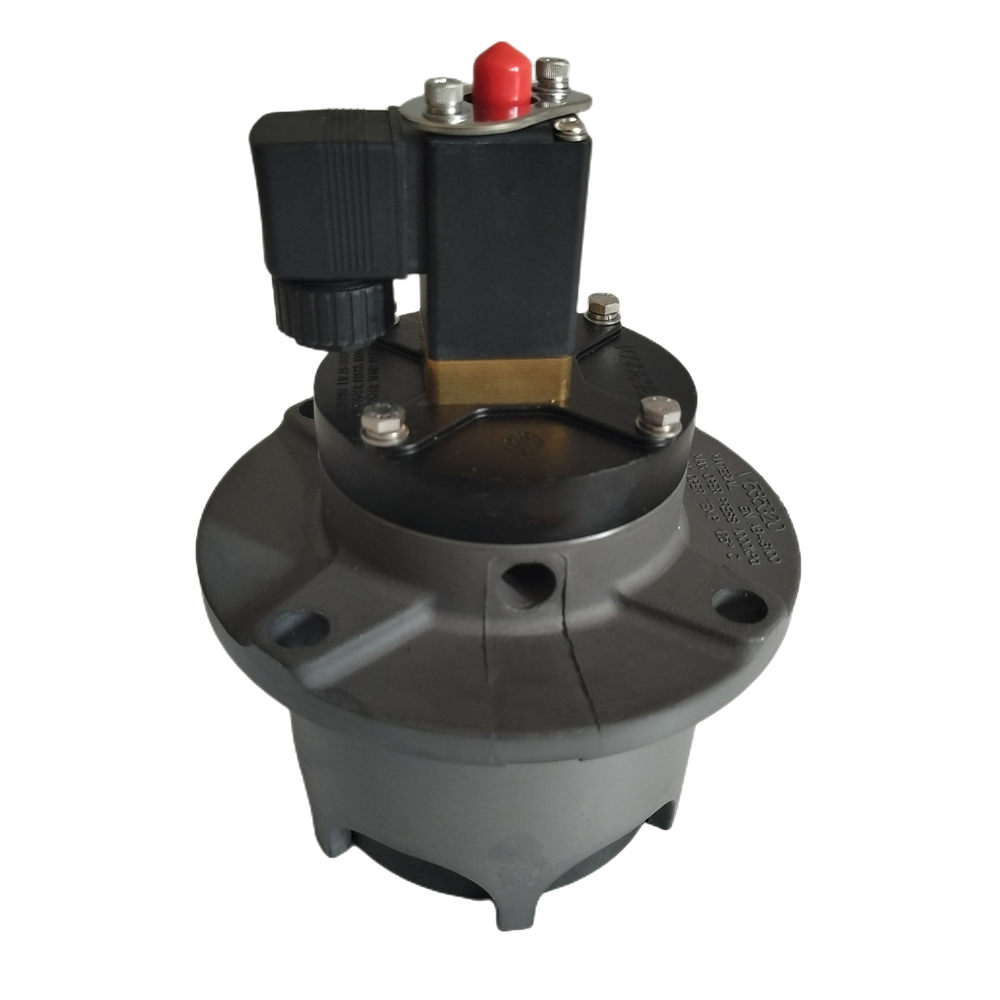

OUR OPTIPOW PULSE JET VALVE
The compact pulse valve fort he Optipulse fabric filters of different types.
1.Is a result of many years of experiences with in the fabric filter technology area.
2.Is quick acting with high efficiency.
3.Has small dimensions,the figure after the name stands
fir the diameter of the plunger.
fir the diameter of the plunger.
4.Is primarily designed to be used in combination with circular pressure tank.
5.Is easy to install and make service to.
6.Has a very robust design,designed for normal use at air pressure up to 600kPa(6bar).Normal max operating temperature(compact pulse valve)50°C.
7.Longer Service Life,More than Twice Service Life in the Same Industry .One Year Free Quality Assurance Service.
FEATURES AT A GLANCE
Basic Info
|
Model NO.
|
OPTIPOW 105
|
Valve Structure
|
Pilot Membrane Structure
|
|
Power Supply
|
DC Solenoid Valve
|
Usage
|
Drain, Dust Cleaning
|
|
Standard
|
DIN
|
Application
|
Industrial Usage
|
|
Used For
|
Dust Filter
|
Trademark
|
OPTIPOW
|
|
Specification
|
3"
|
Design static pressure
|
15 bar (1500 kPa)
|
|
Design temperature
|
100 °C
|
Operating pressure
|
< 6 bar
|
|
Operating pressure variation
|
3 bar unlimited nos
|
Operation temperature
|
50 °C
|
RUBBER DISC PARAMETERS
|
ITEM
|
PART NO.
|
FIT
|
OUTSIDE
|
INSIDE
|
THICKNESS
|
MAIN MATERIAL
|
WEIGHT
|
|
|
|
|
DIAMETER
|
DIAMETER
|
|
|
|
|
RUBBER DISC
|
V3630530-0100
|
Optipow105,Burkert,Danfoss
|
108.00mm
|
82.16mm
|
13.54mm
|
TPU
|
54.8g/pc
|
|
|
V3640661-0100
|
|
|
|
|
|
|
Main Spare Parts for OPTIPOW105 Air Cleaning Valve
|
Product name
|
Article number
|
Pos. no.
|
|
OPTIPOW 105(24V)
|
V1617803-0100
|
①
|
|
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz)
|
V1617803-0200
|
①
|
|
OPTIPOW 105 (110V 50Hz)
|
V1617803-0300
|
①
|
|
OPTIPOW 105 (120V 60Hz)
|
V1617803-0400
|
①
|
|
OPTIPOW 105 (220V 50Hz)
|
V1617803-0500
|
①
|
|
OPTIPOW 105 (UR-CERTIFIED 120V 60Hz )
|
V1617803-0600
|
①
|
|
OPTIPOW 105 (without solenoid, revolving 90° )
|
V1617803-0800
|
一
|
|
Coupling Set
|
V3592382-0000
|
一
|
|
Membrane
|
V4549902-0100
|
②
|
|
O-Ring (Fluor rubber 64.5 x 3.1)
|
8003-5573
|
③
|
|
O-Ring (Nitril 70SH 64.5 x 3.1)
|
2136-1422
|
③
|
|
O-Ring (114.5 x 3.1)
|
2136-1435
|
④
|
|
Pilot Cover
|
V3630501-0100
|
⑤
|
|
Plate
|
V3630524-0100
|
⑥
|
|
Plunger
|
V3630527-0100
|
⑦
|
|
Round Washer (SS3576-10-200HV FE/ZN45)
|
4903-2173
|
一
|
|
Rubber Disc
|
V3630530-0100
|
⑧
|
|
Rubber Disc
|
V3640661-0100
|
⑧
|
|
Solenoid Valve(24 V DC)
|
V3611471-0100
|
⑨
|
|
Solenoid Valve (100 V, 60 Hz)
|
V3611471-0201
|
⑨
|
|
Solenoid Valve (110 V, 50 Hz)
|
V3611471-0300
|
⑨
|
|
Solenoid Valve (110 V, 60 Hz)
|
V3611471-0200
|
⑨
|
|
Solenoid Valve (120 V, 60 Hz)
|
V3611471-0400
|
⑨
|
|
Solenoid Valve (120V, 60 Hz-UL CERTIFIED)
|
V3640645-0200
|
⑨
|
|
Solenoid Valve (230V, 50 Hz)
|
V3611471-0500
|
⑨
|
O-Ring
2136-1422
and
2136-1435
Rubber Disc V3640660-0100
