Quick Details
-
Model Number:
-
SKY-IP-P4/SKY-IP-M72T(CAT5/CAT6)
-
System:
-
Linux system
-
Network Transmission Mode:
-
TCP/IP protocal
-
Connection:
-
CAT5/ CAT6
-
Color:
-
White\Black
-
Language:
-
Chinese/ English/Deutsch/Francais/Nederlands
-
Material:
-
ABS Plastic + Acrylic panel
-
Operation Voltage:
-
DC 12-24V
-
Operation Current:
-
≤500mA
-
Operation Temperature:
-
-30℃~+60℃
-
Installation:
-
Wall mounted
Quick Details
-
Resolution:
-
1024*600
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Skynex
-
Model Number:
-
SKY-IP-P4/SKY-IP-M72T(CAT5/CAT6)
-
System:
-
Linux system
-
Network Transmission Mode:
-
TCP/IP protocal
-
Connection:
-
CAT5/ CAT6
-
Color:
-
White\Black
-
Language:
-
Chinese/ English/Deutsch/Francais/Nederlands
-
Material:
-
ABS Plastic + Acrylic panel
-
Operation Voltage:
-
DC 12-24V
-
Operation Current:
-
≤500mA
-
Operation Temperature:
-
-30℃~+60℃
-
Installation:
-
Wall mounted
Product Description
Function
1. IP 7" color display indoor monitor: capacitive touch screen,16 ringtones, date,clock display.
Built-in power or external adpter optional.
2. IP outdoor station: Wide angle ,White light LED for night vision, waterproof IP65, call, talk, lock connection. outdoor station power from indoor monitor directly.
3. Video Call, talk, intercom,unlock: one button to call , the indoor monitor will show image of the visitor, touch the button to answer start talking or hung up or unlock for open the door.
4. Monitor & Snapshot outdoor station and CCTV camera: from monitor button ,select villa to monior call panel, or select CCTV to monitor IP CCTV camera can see outside true environment.touch snapshot button to take a picture.
5. Support multiple call panels, support multiple indoor monitors: If add POE , no limited for indoor monitor and outdoor station. If 1 outdoor station + 1 indoor monitor can directly connected and outdoor station can be powered from indoor monitor direcly.
6 . Records: arm/disarm record, alarm record, snapshot, call record,voice message.Support 8 photos, 8 leave messges, 10 call records.When outdoor station call indoor monitor, monitor will take a photo or a video automatically according to record settings.If outdoor station call indooor monitor but no answer for a long time, call panel will generate a voice prompt for leaving a message.
7. Alarm : can connect 8 security zone ( gas detector, smoke detector, infrared detector, door sensor, emergency button) If there is any abnormal situation, will alarm ring to remind the residents ,which increase home security.
8. 2 ways to unlock: indoor monitor unlock, keys to unlock.
Specification
|
System
|
Linux system
|
|
Network Transmission Mode
|
TCP/IP protocal
|
|
Connection
|
CAT5/ CAT 6
|
|
Color
|
White\Black
|
|
Language
|
Chinese/English /Customize
|
|
Material:Indoor monitor
|
ABS Plastic + Acrylic panel +Full touch screen
|
|
Outdoor station
|
Aluminum alloy +Acrylic panel+press button
|
|
Charge
|
non-standard POE switch / Power (DC12-24V)
|
|
Operation Voltage
|
DC 12-24V
|
|
Operation Current
|
≤500mA
|
|
Operation Temperature
|
-30℃~+60℃
|
|
Installation
|
Wall mounted
|
|
Net weight
|
1.3kg
|

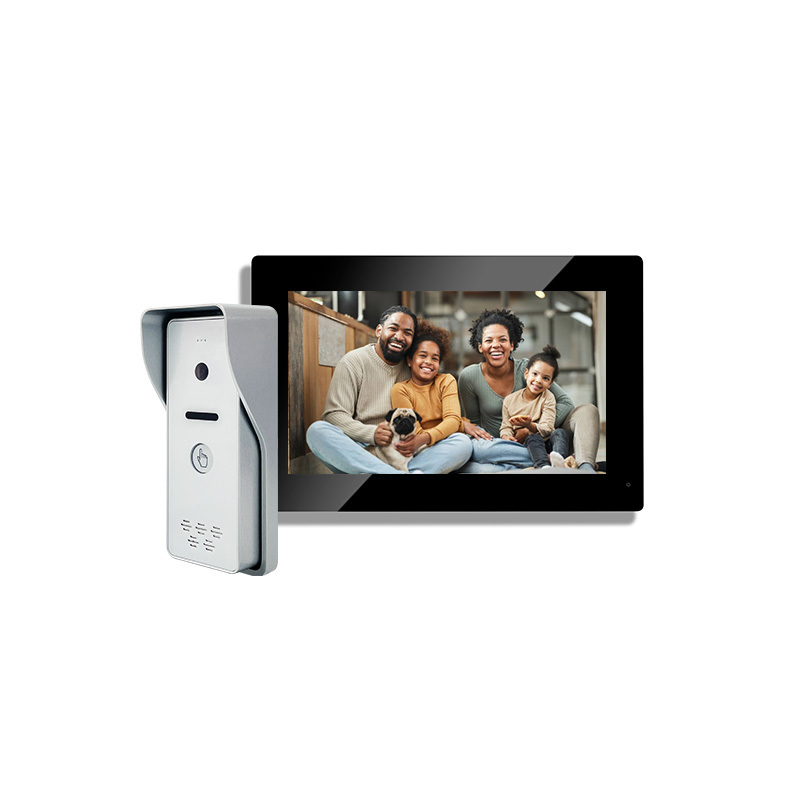

IP Based HD 1080P Villa VIDEO DOOR PHONE KIT
(Connected by Netcable CAT5\CAT6)
Functional detail diagram
IP camera with night vision, triangular cone lens
Product real shot
