Window Door Holes Drilling Multi Head Aluminum Machines Cnc Milling Machine 3 Axis Machine

Window Door Holes Drilling Multi Head Aluminum Machines Cnc Milling Machine 3 Axis Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1380

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 1500 kg

Production Capacity:: 3000

Power:: 4.5KW

Dimension(L*W*H):: 1850*1700*1560MM

Application:: Window Door Production

Function:: Aluminum Profile Milling

Air pressure:: 0.6~0.8MPa

Power supply:: 380V/220V/Customer Specification

Cutting length:: 400mm-4200mm

Cutting width:: 450MM

Cutting angle:: 45 / 90 Degree

R.P.M:: 18000-24000RPM

Spindle:: HQD 4.5KW Air-cooled Spindle

Cooling way:: OIL MIST

Quick Details

Marketing Type:: Hot Product 2023

Brand Name:: GUANDIAO CNC

Voltage:: 220V/380V

Weight:: 1500 kg

Production Capacity:: 3000

Power:: 4.5KW

Dimension(L*W*H):: 1850*1700*1560MM

Application:: Window Door Production

Function:: Aluminum Profile Milling

Air pressure:: 0.6~0.8MPa

Power supply:: 380V/220V/Customer Specification

Cutting length:: 400mm-4200mm

Cutting width:: 450MM

Cutting angle:: 45 / 90 Degree

R.P.M:: 18000-24000RPM

Spindle:: HQD 4.5KW Air-cooled Spindle

Cooling way:: OIL MIST

Application:
Suitable for drilling, milling, round holes, special holes of aluminum alloy profiles,
Flat engraving and other processing.
Features:
1. Kete specific system, easy operation and high stability
2. Thickness welded bed, sprayed with sheet metal, inlaid with light strips
3. Domestic first-line brand electric spindle, high precision, good safety and high reliability
4. The X-axis adopts high-precision helical gear and helical rack drive, and the Y-axis and Z-axis adopt high-precision ball screw drive to ensure smooth operation and high accuracy.
5. Chint electrical components, wire national standard.
6. Flip the beam with square rails, cooperate with the pneumatic locking module, easy to adjust.
7. Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
8. Turn the table 180 °. -90 ~ 0 ° ~ + 90 °, the profile can be processed on three sides in one clamping, and deep through holes can be processed(Special hole), deep hole processing is realized by turning the worktable, with high efficiency and guaranteed accuracy.

Specification

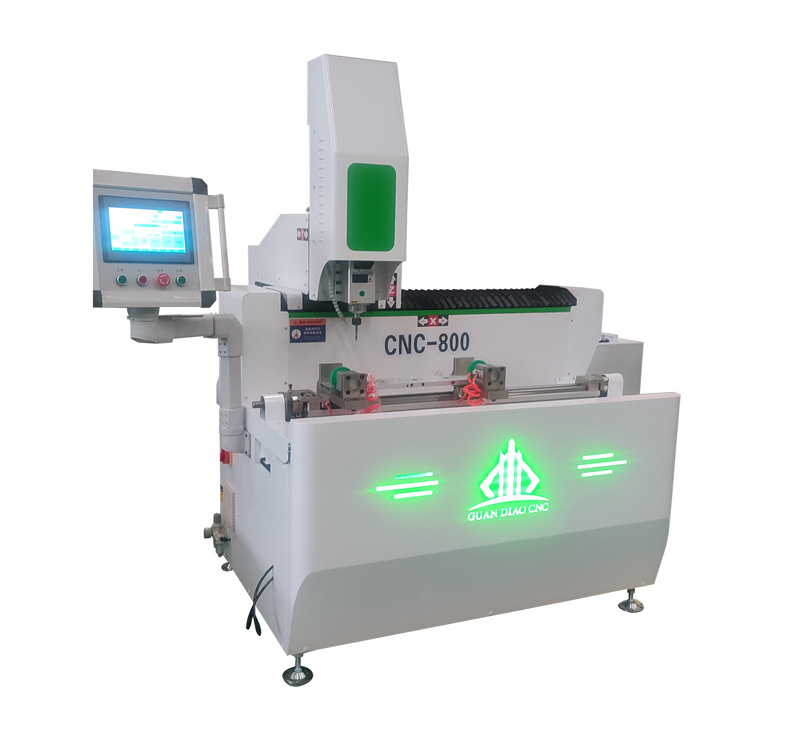

GD-800	Specifications
*square pipe cast welded lathe	Lathe bed adopts strong welded steel tube to avoid distortion.
*Control system	Cnc control system
* spindle power	3.5kw
* motor&drivers	Stepper
*X Y Z ALL square guide rail	Top Brand Square Linear Rail, high accuracy, heavy burthen.
*Transmission system	Taiwan high precision ball screw
*Lubrication system for rail.	Included
*spindle rpm	1000-24000
*working pressure	0.5-0.6MPa
Working area on X axis	800/1200/1500/2000/3300mm
Working area on Y axis	150/200/350/400mm
Working area on Z axis	150/200/350/400mm
Working area	800*140mm
Rolling angle	180°/360°
voltage	380V 50/60HZ/220V
