Yongli 30W 60W 100W 120WRF Metal Laser Tube for CO2 Laser Marking Machine Cutting Engraving Machine Spare parts 10.6um

Yongli 30W 60W 100W 120WRF Metal Laser Tube for CO2 Laser Marking Machine Cutting Engraving Machine Spare parts 10.6um

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5693

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Yongli

Weight (KG):: 10 KG

Product name:: RF CO2 LASER TUBE

Wavelength:: 10.6um

Used for:: CO2 Laser Cuting/marking Machine

Output power:: 30w/60w/100w/120w

Certificate:: CE Certification

Beam diameter:: 1.8±0.2mm

Beam divergence angle:: 7.5±0.5m Radian full angle

Heat load:: <575w

Maximum case temperature:: 60

Cooling Method:: air cooling/water cooling

Quick Details

Place of Origin:: Jilin, China

Spare Parts Type:: RF laser

Marketing Type:: Hot Product 2024

Brand Name:: Yongli

Weight (KG):: 10 KG

Product name:: RF CO2 LASER TUBE

Wavelength:: 10.6um

Used for:: CO2 Laser Cuting/marking Machine

Output power:: 30w/60w/100w/120w

Certificate:: CE Certification

Beam diameter:: 1.8±0.2mm

Beam divergence angle:: 7.5±0.5m Radian full angle

Heat load:: <575w

Maximum case temperature:: 60

Cooling Method:: air cooling/water cooling

Yongli 30W 60W 100W 120WRF Metal Laser Tube for CO2 Laser Marking Machine Cutting Engraving Machine Spare parts 10.6um

Products Description

Refillable Co2 RF Laser Metal Tube Best Match for Your Machine

YongLi Co2 RF Laser Tubes are the main CO2 laser type used in small to medium size laser machines. These are commonly referred to as RF Lasers (also called ‘metal’ lasers) .

YongLi RLT Series RF CO2 laser metal tubes combine superior optical performance with high reliability, exceptional stability, long operational lifetimes, and a modular design for easy serviceability, making them a worry-free, cost-effective choice for OEMs.

The materials used to make the laser cavity in the YongLi Refillable RF laser tube are very different. YongLi 30W 60W RF laser tubes are constructed from a ceramic core within an aluminum extruded outer body. This results in a robust construction with good optical alignment.

The full power life expectancy for YongLi 30W/60W RF laser tube is typically over 40,000 hours . This represents more than 12 years of single-shift working. They can also be refurbished, giving many more years of life.

A huge range of products, with powers from 30W to 60W, 9.3 µm or 10.6 µm wavelengths can be customized, and pulsed or CW operation, all designed for high reliability and uptime, minimal maintenance downtime, easy serviceability, and simplified OEM integration.

YongLi Refillable RF Laser Tube can Cut, slit, engrave, score, and mark a wide variety of materials, including wood, cloth, leather, paper, films, plastics, and die boards, Cooling options include air cooled (fans), OEM (no fans) and liquid cooled. Applied on many industrys such as Materials Processing, Cutting, Marking, Engraving, and Additive Manufacturing.

Technical Parameters

Model NO.	RLT-30/RLT-60
Wavelength	9.3μm/10.6μm
Optical Output Power	30W/60W
Beam Mode	TEM00
Power Instability	≤±5%
Mode quality	M2<1.2
Beam Divergence (mrad, full angle)	≤7.5±0.5
Beam Size	1.8±0.2mm
Beam divergence angle	7.5±0.5m Radian full angle
Polarization	>100 to 1 (fixed linear, parallel to width)
Operating frequency and duty cycle	0-25kHz, 0 to 100% DC
Input voltage	DC48V±2%/20A
Working Life expectancy	40,000 Hours
Warranty	24 Months
Heat load	<575w
Cooling Method	Air Cooling/ Water Cooling(6L/M)
Maximum case temperature	<60ºC(140ºF)
Ambient temperature at work	5~40ºC(41~104ºF)
Operating Altitude	<2000m(6,500ft.)
Operating Humidity	Non-condensing
Shipping and storage environments	-10~60ºC(14~140ºF),Non-condensing
Weight	6.2KG/10.5KG
Size(L×W×H)	357×92.5×142mm(14.1×3.64×5.59in.)/530x92x154mm

Product Details

High Stability RLT Series RF CO2 Lasers

Compact RF CO2 laser tubes with more than 30 or 60 Watts of average power for high-speed marking, cutting, and 3D printing applications are available with multiple wavelength options to process a broad range of materials. A unique 60 Watt fan-cooled model is available for OEMs and system integrators seeking an economical and efficient 60 Watt CO2 laser source.

Refillable : When a Co2 laser glass tube uses up its Co2 gas. The tube need be replaced and discard because of the tube has very little gas and the power drops off.

YongLi RLT Series CO2 RF sealed-off laser resonator tube can be refilled with the gas, once it gets refilled/recharged, the laser tube can be reused for several extra years. Obviously refilling the old one would be more cost-effective. To discard the laser tube would be a great waste. You can simply send it back to us for the refilling or just contact your local laser refill service store to get it done easily

Price: YongLi RF Laser Metal tubes are many times cheaper than other brands' RF tubes thanks to the advanced production process and factory direct sale model. There is no distributor in between which allowed us to give all the benefits to our customers

Perfect replacement for all similar RF lasers: YongLi RF Laser Tube can perfectly replace all the same power RF laser tubes without any additional adjustment, our customers could easily change the RF tubes at ease.

RLT-30 30W RF LASER TUBE

Working substance: mainly a mixed gas composed of carbon dioxide, helium, nitrogen, etc. Excitation source: RF power is used as excitation source.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.

Simplify Integration YongLi RF Co2 Laser Metal Tube

Spot size (beam) : CO2 radio frequency tube laser marking machine has a fine spot of 0.07mm, which is more than 3 times finer than glass tube, high precision, small thermal diffusion area, and can engrave/cut very fine works; CO2 glass tube laser The marking machine has a coarse light spot of 0.25mm, poor accuracy, unstable light output (uneven light intensity, sometimes no light), large heat diffusion area, melting and blackening of the cutting edge, and poor engraving accuracy.

Stability : The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability

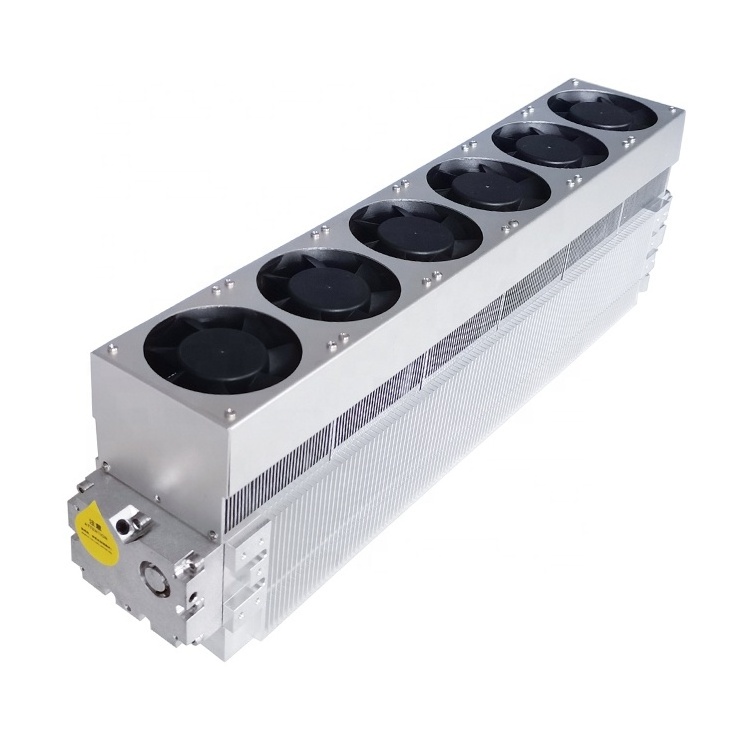

RLT-60 AIR COOLED 60W RF LASER METAL TUBE

Working Principle: RF Laser Metal Tube is the same as the glass tube, it consists of a resonant cavity, a working substance, and an excitation source. Both belong to CO2 gas laser. Resonant cavity: the optic window is sealed with ZnSe mirror coated with anti-reflection coating, and the front and rear cavity mirrors use Si reflecting mirror.
Cooling method: 30W 60W CO2 RF tube adopts air cooling, which can ensure long-term trouble-free and stable operation; An OEM Model of 60w RF laser metal tube adopts water cooling, which is used for long working hours or continuous work.

RLT-60 WATER COOLED 60W RF LASER METAL TUBE

The RF laser switching time is faster than DC lasers. This results in sharper definition when engraving fine detail, and the ability to increase the engraving speed without detriment to the quality of the result.

The output laser is TEM00 mode, which is 3 times finer than the glass tube

YongLi's RLT Series includes RF excited, 30 and 60 Watt CO2 RF lasers. For customer convenience, all models have identical form and fit with internal RF-drive electronics. If a different power laser is required, only the DC power supply will require changing.

60 Watts CO2 RF lasers are offered in two different cooling configurations. The Fan-Cooled configuration comes fitted with cooling fans. The water cooled version is supplied with an input and output port to connect a chilled water source (co2 laser water chiller).

All configurations of 30 and 60 Watt RF lasers are built around YONGLI's patented ceramic core technology that provides superior lifetime, reliability, and stability.

Good Quality YONGLI 60W CO2 RF Laser Tube Laser Source

YongLi RF Laser Tubes are powered by low voltage DC 48V which is used to generate the radio frequency energy to excite the lase gas (hence the name ‘RF’). These low voltages will not jump or track. Water cooled design presents long-term working consistency with no overheat problems. However it is still prudent to ensure a non-condensing environment, as with any electronic product.

The practical consequence of precision blanking wood:

High beam quality of the BlueTimes Co2 RF laser tube (left) vs. low beam quality and thus larger kerf and more smoke (right), due to the present (and frequently encountered) ellipticity of the glass laser tube laser beam, it is also noticeable that the vertical kerf is significantly larger than the horizontal one (right)

Best-In-Class Production Line

World-Class Top Standards of RF Laser Manufacturing

7*24 hours Automaticly intelligent aging workshop
360 hours Processing, More than 20 procedures, 8 inspections
Verify raw materials Assembly inspection Semi-finished product inspection
High and low temperature test and inspection
Simulated Transportation Vibration Inspection
Production line delivery inspection

Degassing equipment

Constant high temperature and high vacuum degassing for 120 hours Guaranteed working substance purity ISO9001 standard customized equipment--international leading level

Vacuum system

The ultra-high vacuum exhaust system exhausts for 72 hours, and the vacuum degree can reach 1.0* 10^(-6) Pa Non-standard customized equipment, the technology has reached the international leading level Internationally leading Linde gas

Machining workshop

Machined parts - the tolerance is controlled within 0.02mm, the key dimension is less than 0.01mm, and the surface finish is less than Ra6.3, which improves the fit between the accessories. Although the cost is increased, the quality of the product is reliably guaranteed .

Applications

For CO2 Laser Marking Machine

-Achieve high speed static or dynamic online marking code

-Mark/Engrave clearly

-Hard-wearing quality

-High engraving and marking efficiency

-Environmentally-friendly

For CO2 Laser Cutting Engraving Machine

-High and stable power

-Cutting or Engraving better than Fiber laser For Non-metal

-The speed of cutting is faster

-Cutting Leather, wood, plastics etc

-The wavelength influence the cutting effect

For Fractional Laser Treatment

-CO2 Fractional Laser Scare Removal Skin Resurfacing Device

-CO2 laser therapy

-RF Stretch Marks Removal CO2 Fractional Laser Machine

-RF Tube Laser Generator Vaginal Tightening Laser

-Cosmetology surgery apparatus

Qualification & Certifications

7 Manufacturing Patented Technology

RF Power Technology Ultra-high vacuum technology Discharge cell polishing technology RF Power Automatic Tuning and Matching Technology Z-shaped optical path design inside the cavity Overall Design of Ceramic Resonator Proportion Design of Working Substances

7 Product Designed Patented Technology

High heat dissipation folded RF CO2 laser CO2 RF laser charging and exhausting equipment RF-excited carbon dioxide laser electrode fixture RF-excited gas laser pre-ionization device Electrode structure of carbon dioxide laser excited by radio frequency RF-excited carbon dioxide laser spot shaping lens RF Laser

Packaging&Shipping

Standard export packing&shipping

Every RF laser tube is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a wooden case which is reinforced with an iron bar on the top and bottom. All our RF laser tubes are protected well during the long trip by sea or by train. We can transport RF laser tube by sea/air freight or express by DHL EMS UPS etc.

According to your requirement.
