Quick Details
-
Max. Turned Length (mm):
-
1000 mm
-
Place of Origin:
-
China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
BT560
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
2070 KG
-
Marketing Type:
-
New Product 2023
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
manual
-
Name:
-

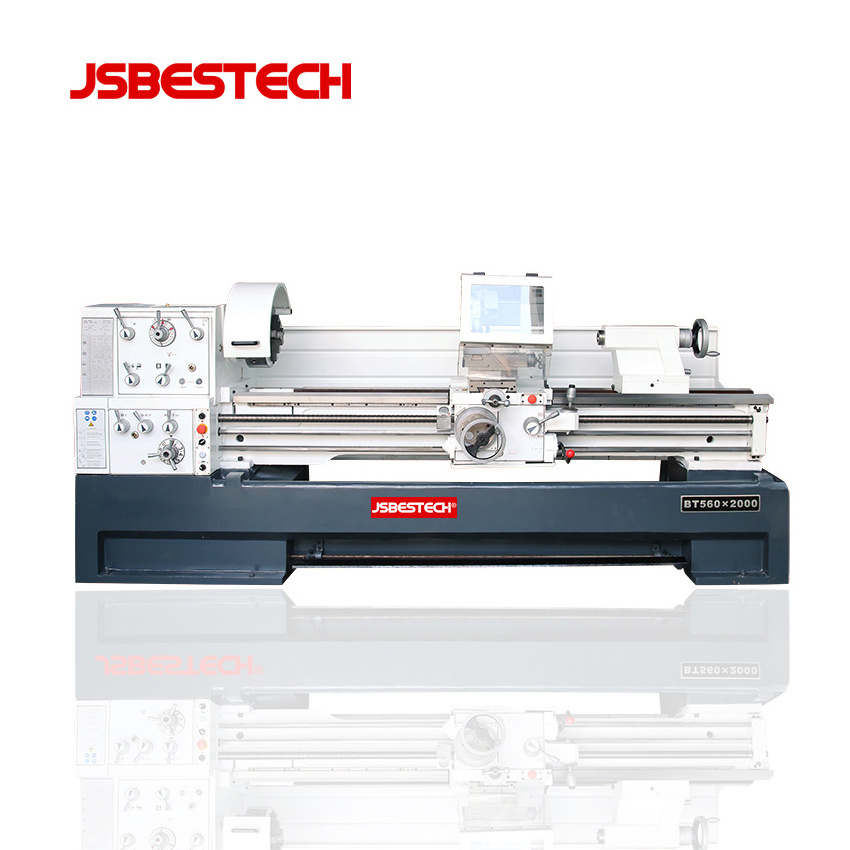

BT560 industrial table lathe machine metal lathe fro sale craigslist
-
Max swing over bed:
-
560mm
-
Max.swing over gap:
-
785mm
-
Valid length of gap:
-
170mm
-
Distance between centers:
-
1000/1500/2000mm
-
Width of bed:
-
350mm
-
Motor power:
-
7.5KW
-
Coolant pump motor:
-
0.1W
Quick Details
-
Max. Length of Workpiece (mm):
-
1000 mm
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
105
-
Max. Turned Length (mm):
-
1000 mm
-
Place of Origin:
-
China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
BT560
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
2070 KG
-
Marketing Type:
-
New Product 2023
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
manual
-
Name:
-
BT560 industrial table lathe machine metal lathe fro sale craigslist
-
Max swing over bed:
-
560mm
-
Max.swing over gap:
-
785mm
-
Valid length of gap:
-
170mm
-
Distance between centers:
-
1000/1500/2000mm
-
Width of bed:
-
350mm
-
Motor power:
-
7.5KW
-
Coolant pump motor:
-
0.1W
Product Description
1.Widely useful, like Education, Factory use ect, operation easy.
2.Various speeds and thread cutting function are avaiable with gear box.
3.Induction-hardened and ground prismatic bed made from cast iron.
4.High precision and hardened spindle.
5.Safety magnetic and lock key European-standard switch.
6.Cost-efficient,precise and stable value.
2.Various speeds and thread cutting function are avaiable with gear box.
3.Induction-hardened and ground prismatic bed made from cast iron.
4.High precision and hardened spindle.
5.Safety magnetic and lock key European-standard switch.
6.Cost-efficient,precise and stable value.
|
Model
|
BT560
|
|
Swing over bed
|
560mm (20")
|
|
Max.swing over cross slide
|
355mm(12")
|
|
Swing in gap diameter
|
785mm
|
|
Distance between centers
|
1000mm(40")/1500mm(60")/2000mm(78")
|
|
Width of bed
|
350mm
|
|
Spindle bore
|
105mm
|
|
Spindle speed range
|
12 steps 25-2000 rpm
|
|
Threads metric pitches
|
47 kinds 0.2-14mm
|
|
Threads imperial pitches
|
60 kinds 2-112.P.I
|
|
Thread module pitches
|
34kinds 0.1-7 M.P
|
|
Tailstock quill diameter
|
75mm
|
|
Total travel of tailstock quill
|
180mm
|
|
Taper in tailstock quill
|
MT5
|
|
Spindle drive motor(double speeds)
|
7.5kw
|
|
Coolant pump motor
|
100W
|
|
N.W/G.W
|
2070/2460kg or 2160/2550kg or 2435/2840kg
|
|
Packing Size
|
2450/2900/3400*1190*1740mm
|
|
Standard Accessories
|
|
Optional Accessories
|
|
||
|
3-jaw chuck
|
Steady rest
|
Quick change tool post
|
Lead screw cover
|
||
|
4-jaw chuck
|
Face plate
|
Quick change tool post
|
Big bore 105mm
|
||
|
Dead center
|
Toolbox &tools
|
Quick change tool post
|
3 Axis Digital readout
|
||
|
Change gear set
|
Stand
|
MT5 Rolling center
|
|
||
|
Wrench set
|
Cooling pump
|
CE(Chuck guard)
|
|
||
|
Oil can
|
Working lamp
|
Tapet turning attachment
|
|
||
|
Splash guard
|
Foot brake
|
Holder guard
|
|
||
|
Chip tray
|
Follow rest
|
2 Axis Digital readout
|
|
||
