Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Well Lift
-
Model Number:
-
OEM ODM
-
Type:
-
torsion spring, Residential & Industrial
-
Product name:
-

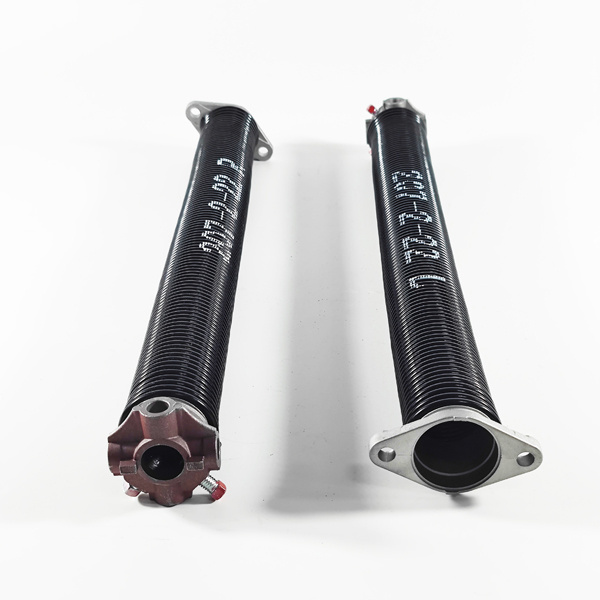

Garage door torsion spring
-
Finish:
-
Non Galvanized
-
Size:
-
50mm,67mm,95mm,135,152mm
-
Thickness:
-
207/218/225/234/243/250
-
Finished:
-
Antirust Oil/Dacromet coating/Electrophpresis coating/Powder coated
-
Package:
-
Wooden case
-
Function:
-
For sectional door use
-
Certificate:
-
Ce, ISO9001
Quick Details
-
Style:
-
Spiral
-
Material:
-
Steel
-
Use:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Well Lift
-
Model Number:
-
OEM ODM
-
Type:
-
torsion spring, Residential & Industrial
-
Product name:
-
Garage door torsion spring
-
Finish:
-
Non Galvanized
-
Size:
-
50mm,67mm,95mm,135,152mm
-
Thickness:
-
207/218/225/234/243/250
-
Finished:
-
Antirust Oil/Dacromet coating/Electrophpresis coating/Powder coated
-
Package:
-
Wooden case
-
Function:
-
For sectional door use
-
Certificate:
-
Ce, ISO9001
Since 2004,
Well Lift
has specialized in manufacturing and delivering Garage Door Springs to USA, Canada, UK and Australia customers. As Garage Door Springs Manufacturer and Supplier, we offer Torsion Springs in 1-3/4", 2", 2-5/8", 3-3/4", 5-1/4" and 6" Inside Diameter with Wire Size ranging from 0.192", 0.207", 0.218", 0.225", 0.234", 0.243", 0.250", 0.262", 0.273", 0.283", 0.295" to 0.393". All Well Lift springs are fabricated with high carbon ASTM A229 Class II oil-tempered wire. Well Lift Garage Door Torsion Springs are available for most USA Garage Door Manufactures, including but limited to: CHI Garage Doors, Clopay Garage Doors, Amarr Garage Doors, Raynor Garage Doors and Wayne Dalton Garage Doors.
Products Description
The
garage door manufacturing
industry relies on torsion springs for complete and functioning garage door systems. In most cases,there is at least one torsion spring in every garage door system, across multiple garage door styles. Whatever type of garage door system you produce and repair, chances are you’ll need torsion springs to make it work. Here are some garage door styles that require torsion springs for proper functioning:
High-lift and vertical-lift doors
Roll-out garage doors on tracks
Heavy-duty overhead doors at industrial loading docks
Hinged garage doors
High-lift and vertical-lift doors
Roll-out garage doors on tracks
Heavy-duty overhead doors at industrial loading docks
Hinged garage doors
|
OEM/ODM
|
Well Lift With 20 Years Garage Door Hardware Manufacture Experence
|
|
|
|
|||
|
Main Products
|
All Garage Door Hardware,tension spring, torsion spring
|
|
|
|
|||
|
Inner Diameter
|
1 3/4'', 2'', 2 5/8'', 3 3/4''，5 1/4”, 6”
|
|
|
|
|||
|
Wire size
|
207/218/225/234/243/250
|
|
|
|
|||
|
Material
|
Carbon steel / Manganese steel
|
|
|
|
|||
|
Surface Treatment
|
zinc plated, electrophoresis, oxidation black, powder coating, blasting, geomet, rust-preventative oil, nickel plated, etc.
|
|
|
|
|||
|
Packaging
|
inner plastic bag, outer standard carton box.Or at your request.
|
|
|
|
|||
|
Certificate
|
ISO/TS16949-2002, ISO9001-2000, ISO14000
|
|
|
|
|||
|
Lead Time
|
samples:3-7 days; batch goods: 7-15 days after deposit recieved.
|
|
|
|
|||
|
Payment Term
|
T/T, L/C, western union, paypal, etc.
|
|
|
|
|||
ONE STOP
GARAGE DOOR HARDWARE
SOLUTION
If you need more information,Pls Click "
Contact Us
"
Step 1 Determine Springs ID (Inside Diameter)
For your broken spring(s) measure the inside diameter of the spring. If the spring is in one piece you can normally find the ID on the cones, P175 for 1 3/4" and P200 for 2". Typically residential springs will have a 1 3/4" or 2" inside diameter.
Step 2 Determine Spring Wind
Most standard residential torsion systems have two torsion springs, one on the right and left. The Left spring is right hand
wound(RHW), and the right spring is left hand wound(LHW). If one spring is broken on your torsion system, we highly recommend replacing both springs.
wound(RHW), and the right spring is left hand wound(LHW). If one spring is broken on your torsion system, we highly recommend replacing both springs.
Step 3 Determine Wire Size
The most efficient way to measure the wire size is to measure 10 coils and then measure 20 coils and compare the measurements to the chart below. Measure to the nearest 1/16" of an inch. It is important to make sure there are no gaps between the coils.Measuring coils that have gaps will give incorrect measurements.
Step 4 Determine Spring Length
When measuring your torsion spring, remember that in order to get a proper measurement the spring must be un-wound. If the spring is in two parts, unscrew set screws and connect spring ends together to get a total measurement. Do not include the cones in the measurement.
Why Choose Us
Well Lift
As a Garage Door Spring Manufacturer and Garage Door Hardware Supplier, we supply Garage Door Torsion Springs and Garage Door Spring Replacement to certified garage door dealers, wholesalers, and manufacturers in USA, Canada, UK, and Australia since 2006. Our Garage Door Springs are available for 8x7 Garage Doors, 8x8 Garage Doors, 9x7 Garage Doors, 9x8 Garage Doors, 16x7 Garage Doors, 16x8 Garage Doors, and other special size Garage Doors.
Certified Manufacturer
We are an ISO 9001 certified garage door spring manufacturer and garage door spring supplier.
Durable Lift Cycle
Well Lift are manufactured with ASTM A229 Class II oil-tempered wire. Rated for 15,000 life cycles.
Customer Growth
Support 68+ Companies in USA, Canada, UK and Australia to Grow Business Fast Since 2006.
FAQ
Q1:What's The MOQ?
A:MOQ is normally 50 sets,exact MOQ is depend on the product.
Q2:
Can you stamp the customers' own logo and their own package?
A:Sure!We provide OEM&ODM service.
Q3:Can i get sample and how long will it take?
A:Yes.We offer samples,you need to pay shipping fee.about 10-15 days after receiving the payment,you will get it.
Q4:How does your factory carry out quality control?
A:We attach great importance to quality control.Every process of our production has its own qc.And after the production finishing,we will send you pictures or video to cheak.
Q5:Can I mix different models in one container?
A:Yes.Different models can be mixed in one container,but each quantity should not be less than MOQ.
Q6:Could i get a discounted price?
A:Yes.If you have a big qty of order,we would give a discount.
Q7:What's the delivery time?
A:It willtake about 15-25 days to finish an order.The exact time is according to actual quantity.
