Quick Details
-
Brand Name:
-
LEDODM
-
Model Number:
-
SL-5050-144D
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC5V/12V/24V
-
Lamp Luminous Flux(lm):
-
22-26lm/led
-
Warranty(Year):
-
2/3 Years
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 45
-
Item Name:
-
Smart Strip Lights
-
LED Light Source:
-
SMD5050
-
LED Chip:
-
Epistar/Sanan
-
LED Qty/m Available:
-
30, 60, 72, 96 LEDs/M
-
PCB Width:
-
10mm, 12mm width
-
Available Color:
-
White/RGB/RGBW
-
Available IC Type:
-
WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812, DMX512 TM1914 etc
-
IC Type:
-
SK6812/WS2812B/GS8208
-
LED Qty/m:
-
30 leds/m - 144 LEDs/M available
-
Package:
-
5M/Reel
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Voice control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDODM
-
Model Number:
-
SL-5050-144D
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC5V/12V/24V
-
Lamp Luminous Flux(lm):
-
22-26lm/led
-
Warranty(Year):
-
2/3 Years
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 45
-
Item Name:
-
Smart Strip Lights
-
LED Light Source:
-
SMD5050
-
LED Chip:
-
Epistar/Sanan
-
LED Qty/m Available:
-
30, 60, 72, 96 LEDs/M
-
PCB Width:
-
10mm, 12mm width
-
Available Color:
-
White/RGB/RGBW
-
Available IC Type:
-
WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812, DMX512 TM1914 etc
-
IC Type:
-
SK6812/WS2812B/GS8208
-
LED Qty/m:
-
30 leds/m - 144 LEDs/M available
-
Package:
-
5M/Reel

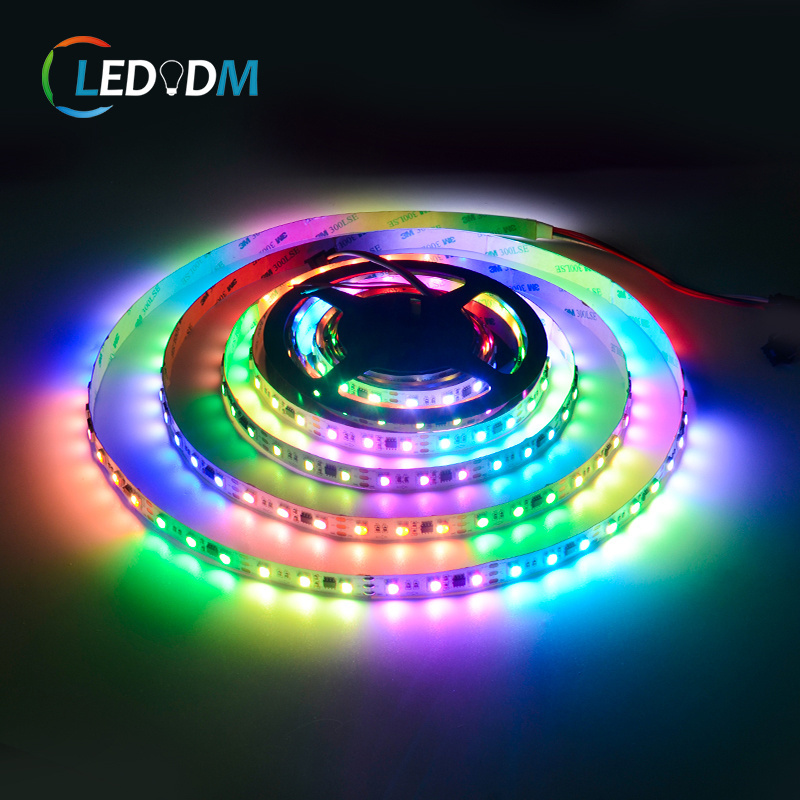

Individually Addressable pixel led strip programmable GS8208 WS2812B SK6812 RGBW RGBWW Warm/Natural/White 5m 60-144leds/pixels/m
5V, SK6812 Smart led strip, 144leds/m, IP20 , RGB Display:
5V, SK6812 Smart led strip, 144leds/m, IP68 , RGB Display:
Basic Parameters:
|
Shenzhen Ledodm Lighting Co.,Ltd Multiple choices and customized services for you |
|
| LED Type | SMD5050 |
| Chip Brand | Epistar/Sanan Chip |
| Voltage | DC 5V |
|
LED QTY&POWER |
30LEDs/m, RGB - 6W/M. 60LEDs/M, RGB - 12W/M. 72LEDs/M, RGB - 14.4W/M 96LEDs/M, RGB - 19.2W/M 144LEDs/M, RGB - 28.8W/M. 144LEDs/M, RGBW - 36W/M |
|
IC Optional |
SK6812/WS2812B (IC from original factory) |
|
CRI (RA) |
80/90/95 (Only for white color) |
|
Color Options |
RGB/RGBW |
| IP Grade | IP20/IP65/IP66IP68 |
| Warranty | 5Years / 3 Years / 2 Years |
| Package | 5M/Reel |
| Certificate | ETL CE RoHS |
| Application | Indoor Lighting; Outdoor Lighting; Hotel Lighting; Landscape Lighting; Decoration Lighting; Sign Lighting |
Product Features:
- We developed 30 Pixel,60 Pixel, 72Pixel, 96pixel, 144Pixel per meter and customzied service
- Super high brightness LED
- Each LED per unit can be cut down.
- Fully Dimmable
- 2 oz Flexible PCB
- 3 PIN JST SM connector
- 120 beam Angle
- Requested to power from start and end of 5meters roll by DC5V as the Voltage drop.
- 3M Brand Adhesive Tape on the back.
- Both white & black color PCB board available.
- CE, ROHS, ETL Approved.
- 3 years warranty
More IC Option:
IP Rating Option:
IP20 ----Non-waterproof, Using it in indoor and keep away from rain wet
IP65 ---- Anti small water drop, fit on damp location
IP66 ---- Anti big water drop, fit on outdoor exterior building
IP68 ---- Fully waterproof, it also be placed in the swimming pool
Application Picture Display:
About LEDODM
Founded in 2008, LEDODM is a national high-tech enterprise specialized in R&D, manufacturing, sales and after-sales. Currently has more than 20 product patents, and all products have passed CE, ROHS, ETL (5014155) certification etc.
Main product line:
LED Strip,
Neon LED Strip, COB LED Strip, Flexible led sheet,
Aluminum Profiles and
Related Accessories
We also welcome OEM and ODM orders. Whether selecting current products from our catalog or seeking engineering
help for your application, you can discuss your procurement needs with our sales. All of our sales have been trained by the R&D team for 6 months, and we can give you feedback within 24 hours for all of your requirements.
LEDODM'S Production Process:
PACKAGE:
Standard export carton packing .
DELIVERY TIME:
3-15 days after confirming order, detail delivery date should be decided according to production season and order quantity.
If you need more files of our price list, datasheet, testing report etc. please leave a message, we will get back to you soon.
