Quick Details
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Recirculating Chiller
-
Certificate:
-
CE
-
Application:
-
Condenser winterization
-
Cooling capacity:
-
12980-2562
-
Lift:
-
6m 12m
-
Flow:
-
25-35L/min
-
Coolant temperature:
-
-25--120°C
-
Delivery:
-
10-15 working days
-
Guarantee:
-
1 year, exclude the wearing parts
Quick Details
-
Place of Origin:
-
Henan, China
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Recirculating Chiller
-
Certificate:
-
CE
-
Application:
-
Condenser winterization
-
Cooling capacity:
-
12980-2562
-
Lift:
-
6m 12m
-
Flow:
-
25-35L/min
-
Coolant temperature:
-
-25--120°C
-
Delivery:
-
10-15 working days
-
Guarantee:
-
1 year, exclude the wearing parts
Recirculating chillers is also known as Low-temperature circulating pump or Low temperature cooling water / liquid circulation pump. This device adopts mechanical refrigeration. The main function is providing low temperature liquid, low temperature water bath . It can also connect with rotary evaporator, vacuum freeze drying oven , cycle water vacuum pump , magnetic stirrer and so on, to achieve the chemical reaction or drug store under low temperature condition.
Large cryogenic cooling liquid circulating pump is constant flow, constant voltage. Used for purification of high purity metals, rare element, environment experiment and magnetron sputtering, vacuum coating and other large equipment, cooling demand of electron microscopy, electron probe, ultra high vacuum sputtering apparatus, X-ray machine, laser and accelerating the electric light those high value equipment. Cryogenic cooling liquid circulating pump is particularly suitable for the chemistry, biology, physics laboratory work under normal conditions or need to maintain a low temperature. It is a necessary lab equipment for medicine, chemical industry, food industry, metallurgical industry, universities, scientific research, genetic engineering, polymer engineering and so on . (Can be customized large capacity according to user needs ).
Technical Parameters
|
Model |
No load minimum temperature(℃) |
Cooling capacity
|
Flow |
Lift |
Coolant temperature(℃) |
Temperature precision
|
Power supply
|
|
DLSB-5/ 20 |
-27 |
1894-447 |
25L/min |
6m |
- 25℃ |
±1 ℃ |
240V/60Hz single phase |
|
DLSB-10/30 |
-32 |
2036-1022 |
- 30℃ |
||||
|
DLSB-10/40 |
-42 |
2628-748 |
- 40℃ |
||||
|
DLSB-20/ 30 |
- 32 |
3255-990 |
- 30 ℃ |
||||
|
DLSB-20/40 |
-42 |
3809-989 |
- 40℃ |
||||
|
DLSB-30/ 60 |
- 6 2 |
4997-160 |
35L/min |
12m |
- 6 0℃ |
||
|
DLSB-30/ 8 0 |
- 8 2 |
6600-850 |
- 8 0℃ |
||||
|
DLSB-30/120 |
-118C |
6600-150 |
-118C |
||||
|
DLSB-50/ 30 |
-32 |
7300-950 |
- 30℃ |
||||
|
DLSB-50/40 |
-42 |
10364-2565 |
- 40℃ |
240/60 three phase |
|||
|
DLSB-50/80 |
-82 |
13140 - 1350 |
- 80℃ |
||||
|
DLSB-50/120 |
-1 17 |
1298 0 -2562 |
- 120℃ |

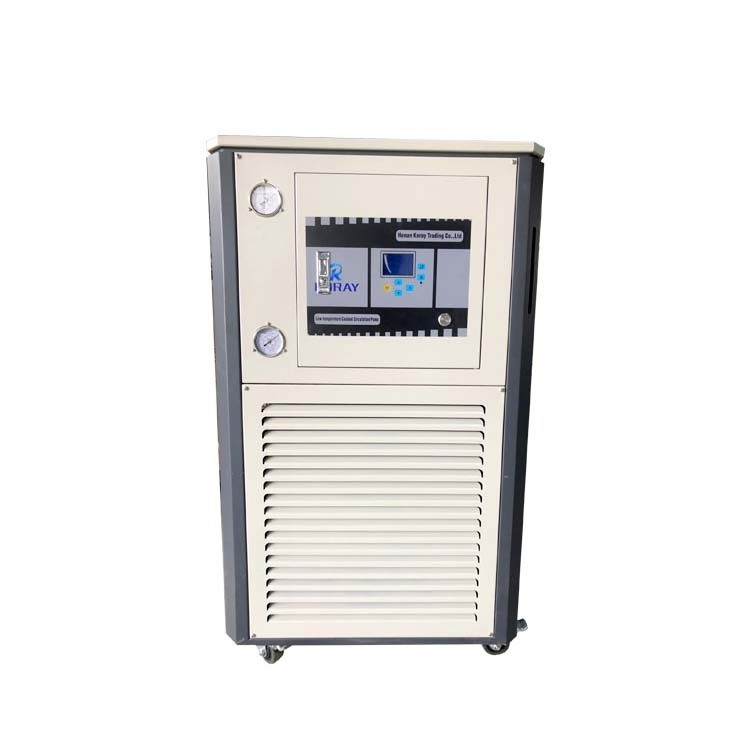

Pictures of the Machine
1. Professional Department
Our company integrating development and production together, 100% QC before delivery.
2. Fast Delivery
3-7 working days for normal model after receive your payment, deliver by air or Express.
3. Safe Packing
All wooden case packing, glass parts will be well protected during the transportation.
4. Customized Design
Professional for the design, will offer the best plan according to clients’ special demands.
5. Trade Assurance
Can place the order through Alibaba, 100% protect your payment, and delivery on time .
