insulated doors cold room sliding door cold storage door

insulated doors cold room sliding door cold storage door

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Capacity:: 800ton

Place of Origin:: Shanghai, China

Brand Name:: CRYO SYSTEMS

Voltage:: 380V/3P/50Hz or 220V/1P/50Hz

Power:: As per your requirements

Dimension(L*W*H):: >300 m3

Weight:: 400 KG

Usage:: insulated doors, cold storage, low temperature processing workshop

Feature:: Good insulation

Door type optional:: Manual sliding door and automatic sliding door

Tem. range:: -45°C~+50°C

Panel thickness:: 75, 100, 120, 150mm

Panel material:: PU (polyurethane), PIR

Steel plate optional:: stainless steel, color steel plate, embossed aluminum plate.

cold room door density:: 42kg/m

Door height:: 1200 - 2800mm

Door width:: 2000 - 3400mm

After Warranty Service:: Video technical support, Online support

Quick Details

Temperature:: -5~+5, -5~-18, <=-18 °C

Compressor brand:: Original world famous compressors

Panel Thickness:: 100mm, 120mm, 75mm, 50mm, 150mm

Cooling Capacity:: 800ton

Place of Origin:: Shanghai, China

Brand Name:: CRYO SYSTEMS

Voltage:: 380V/3P/50Hz or 220V/1P/50Hz

Power:: As per your requirements

Dimension(L*W*H):: >300 m3

Weight:: 400 KG

Usage:: insulated doors, cold storage, low temperature processing workshop

Feature:: Good insulation

Door type optional:: Manual sliding door and automatic sliding door

Tem. range:: -45°C~+50°C

Panel thickness:: 75, 100, 120, 150mm

Panel material:: PU (polyurethane), PIR

Steel plate optional:: stainless steel, color steel plate, embossed aluminum plate.

cold room door density:: 42kg/m

Door height:: 1200 - 2800mm

Door width:: 2000 - 3400mm

After Warranty Service:: Video technical support, Online support

Products Description

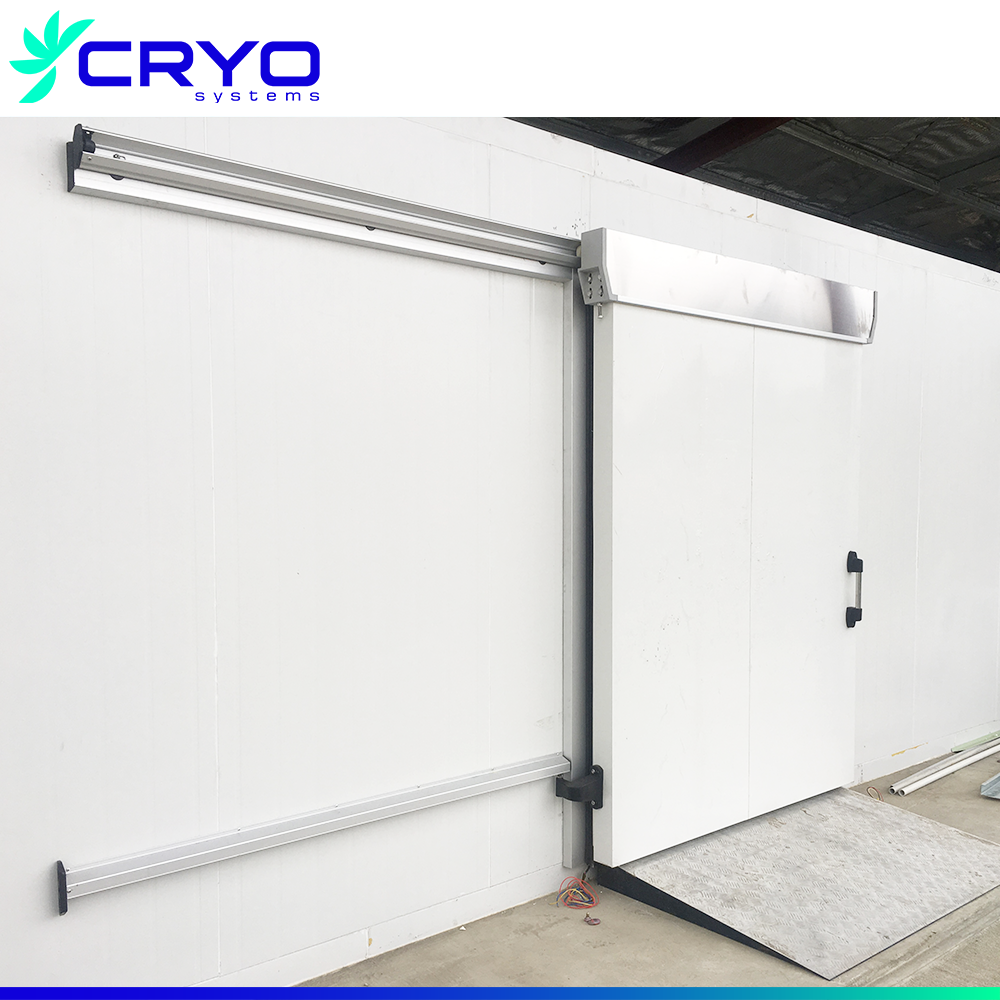

Sliding doors

1. Features:

Sliding doors have reasonable material selection, simple structure, beautiful appearance, internal polyurethane integral hair, with good sealing and heat insulation; at the same time, they have safety devices in the warehouse, which are safe and practical; the characteristic is that the door is lighter.

2. Application:

cold storage, low temperature processing workshop, thermal insulation device, moderate door size, frequent opening.

Details

1. Product information

Applicable temperature	-45°C~+50°C
cold room door material	100% polyurethane foaming material
cold room door density	42kg/m
Panel Thickness (mm):	75, 100, 120, 150
Steel plate optional	stainless steel, color steel plate, embossed aluminum plate.
Door type optional	Manual sliding door and automatic sliding door
Door height	1200 – 2800mm
Door width	2000 – 3400mm

2. Components:

(1) Door seal:

Made of EPDM, it has good chemical resistance, excellent durability and aging performance, wide temperatureadaptability, and long-term working temperature is -50°C~+130°C.

(2) Door panel
The door panel is made of polyurethane and the panel is integrally foamed, and the appearance is flat and the heat preservation performance is good.

(3) Door frame: Strong aluminum frame systems.

The door frame is made of aluminum alloy, which is neat and generous in appearance and durable. It overcomes the shortcomings of low strength and perishable wooden door frame. And equipped with self-limiting temperature electric heating belt, without temperature control or manual switching power supply.

(4) Guide rail device

aluminum alloy guide rail, the guide wheel device and the pressing wheel device cooperate to make the door separate from the door frame

(5) Drive and electric control (For automatic sliding door)
Integrated control of four drives, servo driver and high-resolution decoder; built-in 433MHZ remote control, 4.0 Bluetooth,
EEE802.11 wireless local area network; Airtight waterproof design, -10 degrees low-temperature heating function, +60 overheating protection function; Fast installation, saving wires and man-hours and reducing external interference.
