Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lindu Optics
-
Model Number:
-
LDNV016
-
Weight:
-
220g (without battery)
-
Effective Visual Distance:
-
0.25m to infinity
-
Image intensifier:
-
Gen2+ / gen 3
-
Rotating test:
-
Auto, flip up auto shut off
-
FOV(degree):
-
40° & 50°
-
Coaxiality:
-
< 0.1°
-
Lens system:
-
F1.18 22.5mm
-
Control mode:
-
ON/IR/AUTO
-
Optical MTF:
-
120 LP/mm
-
Optical distortion:
-
1% Max
-
Relative Illumination:
-
>75%
-
Battery type:
-
Lithium batteries (CR123x1)
-
Operating Voltage:
-
2.6-4.2V
Quick Details
-
Size:
-
110x65x45mm
-
Type:
-
Monocular
-
Magnification:
-
1X
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lindu Optics
-
Model Number:
-
LDNV016
-
Weight:
-
220g (without battery)
-
Effective Visual Distance:
-
0.25m to infinity
-
Image intensifier:
-
Gen2+ / gen 3
-
Rotating test:
-
Auto, flip up auto shut off
-
FOV(degree):
-
40° & 50°
-
Coaxiality:
-
< 0.1°
-
Lens system:
-
F1.18 22.5mm
-
Control mode:
-
ON/IR/AUTO
-
Optical MTF:
-
120 LP/mm
-
Optical distortion:
-
1% Max
-
Relative Illumination:
-
>75%
-
Battery type:
-
Lithium batteries (CR123x1)
-
Operating Voltage:
-
2.6-4.2V

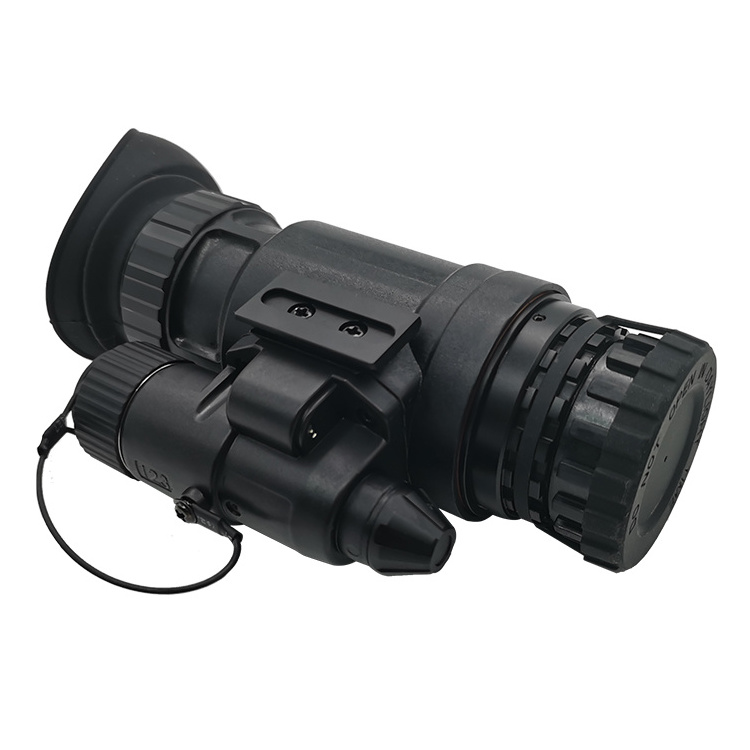

Lindu Optics Night Vision Telescope Nv Monocular White Phosphor Night Vision Goggles
This device uses 36.7mmX31mm(18mm)tube , such as model MX-10160 can be used.
We can offer housing(optics included) and complete unit .
The LDNV016 night vision is a new product developed based on the latest optoelectronics
technology with a field of view of 50 degrees(there is also 40 degree for choose).
1. Light weight only 220g with tubes;
2. IP65 waterproof standard (IP67 optional);
3. AUTO shut OFF/ON when flip up/down, save power when not use;
4. Build-in IR light;
5. Power switch offer ON/IR/AUTO working mode;
6. Strong light auto shut off;
7. Eyepiece lens and objective lens coated with demist coating;
8. Offer sacrificial windows(optional);
9. IR LED indicator and low battery LED indicator;
10. Offer 3X and 5X magnifier lens(optional);
| Image intensifier | Gen2+ / gen 3 |
| Magnification | 1X |
| Type | Monocular |
| Rotating test | Auto, flip up auto shut off |
| Battery type | Lithium batteries (CR123x1) |
| Voltage range | 2.6-4.2V |
| Control type | ON/IR/AUTO |
| FOV(degree) | 50 degree /40 degree |
| Power | <0.1W |
| Battery capacity | 800-3200maH |
| Continue working time | 80-200H |
| Parallelism of optical axes | <0.1° |
| Optical aperture | F1.18 22.5mm |
| Rollover detection | Solid non-contact automatic detection |
| Optical MTF | 120LP/mm |
| Optical distortion | 1% Max |
| Relative Illumination | >75% |
| Lens coating | FMC |
| Focus range | 0.25M to infinity |
