Quick Details
-
Fiber Core:
-
Simplex
-
Material:
-
Plastic or Metal
-
Type:
-
UPC
-
Insertion Loss:
-
IL<0.2db
-
Return Loss:
-
>55dB
-
Mode:
-
Singlemode or Multimode
-
Operating Temperature:
-
-40~75℃
-
Keyword:
-
fiber adapter flange coupler
-
Mating Durability:
-
>1000 cycle
Quick Details
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Connector:
-
SC
-
Fiber Core:
-
Simplex
-
Material:
-
Plastic or Metal
-
Type:
-
UPC
-
Insertion Loss:
-
IL<0.2db
-
Return Loss:
-
>55dB
-
Mode:
-
Singlemode or Multimode
-
Operating Temperature:
-
-40~75℃
-
Keyword:
-
fiber adapter flange coupler
-
Mating Durability:
-
>1000 cycle

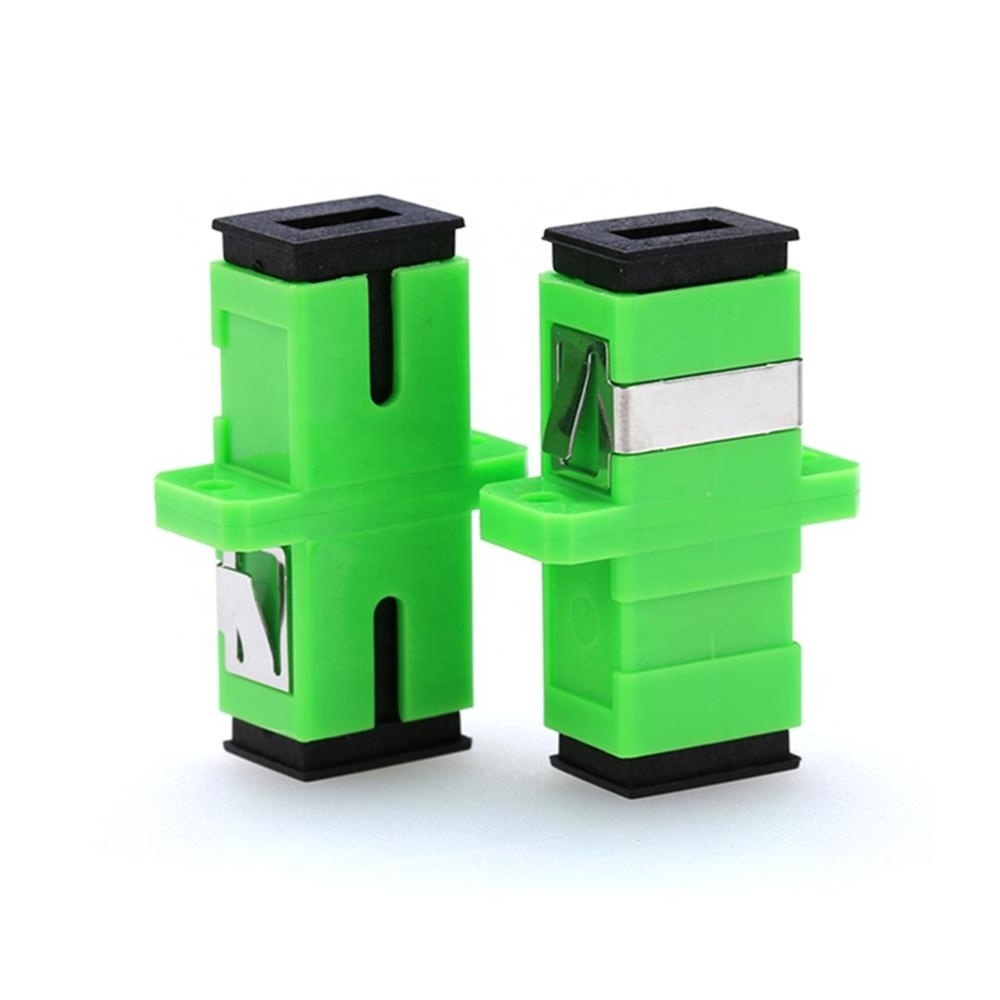

Carrier Grade SC-APC Simplex Adapter Coupler Flange Flange Radio and TV Cable TV Special CATV Attenuator
Product Details
1.Product Introduction
Attenuator optic attenuator is a precise device that can provide different attenuation for needing.They are used in the transmit line of fiber.There are two kinds of attenuator,alterable and fixable .The attenuation form 1dB to 65dB.
Optic attenuator is a precise device that provide the attenuation form 1dB to 65dB.It is design under the international standard and accord with the standard of IEC.It is largely used in the area of optic communication.
Fixable attenuator can be adjusted in need of the project.It is used in many fiber transmissions.There are three kinds of these products,FC/SC/ST convertor,high return lossof FC/SC type,high return loss of online type.
2.Features
♦ Accored wit h the standard of IEC
♦ Low excess loss
♦ High precission of the attenuation
♦ Small bulk and light weight
♦ High stability and reliablity
3.Application
♦ Optic fiber communication
♦ LAN
♦ Optic fiber CATV
♦ Testing and others
4.Technical Specifications
| Fixable attenuator Specifications | |||
| Type | GY-PIS | GY-GHS | GY-GLS |
| Wavelength(nm) | 1310/1550 | 1310/1550 | 1310/1550 |
| Returu loss(dB) | ≥45 | ||
| Attenuation(dB) | 1±0.25,2±0.5,3±0.75,5±0.75,10±1,15±1.5,20±2 | ||
| Connector | FC,SC,ST | ||
| Temperature(℃) | -40-+85 | ||
