Quick Details
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
China, Shandong, China
-
Brand Name:
-
KEWOSEN
-
Weight (T):
-
12 T
-
Motor Power (kw):
-
22 kw
-
Product Name:
-
Powder Forming Press Machine
-
Keyword:
-
automatic hydraulic press for powder metallurgy
-
Type:
-
Four Columns
-
Function:
-
automatic hydraulic press for powder metallurgy
-
Advantage:
-
High Precision
-
CNC or Not:
-
Nomal
-
Application:
-
automatic hydraulic press for powder metallurgy
-
Hydraulic press:
-
300/500/600/800/1000/1500T
Quick Details
-
Machine Type:
-
Four-column Four-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
300
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
China, Shandong, China
-
Brand Name:
-
KEWOSEN
-
Weight (T):
-
12 T
-
Motor Power (kw):
-
22 kw
-
Product Name:
-
Powder Forming Press Machine
-
Keyword:
-
automatic hydraulic press for powder metallurgy
-
Type:
-
Four Columns
-
Function:
-
automatic hydraulic press for powder metallurgy
-
Advantage:
-
High Precision
-
CNC or Not:
-
Nomal
-
Application:
-
automatic hydraulic press for powder metallurgy
-
Hydraulic press:
-
300/500/600/800/1000/1500T
Product Description

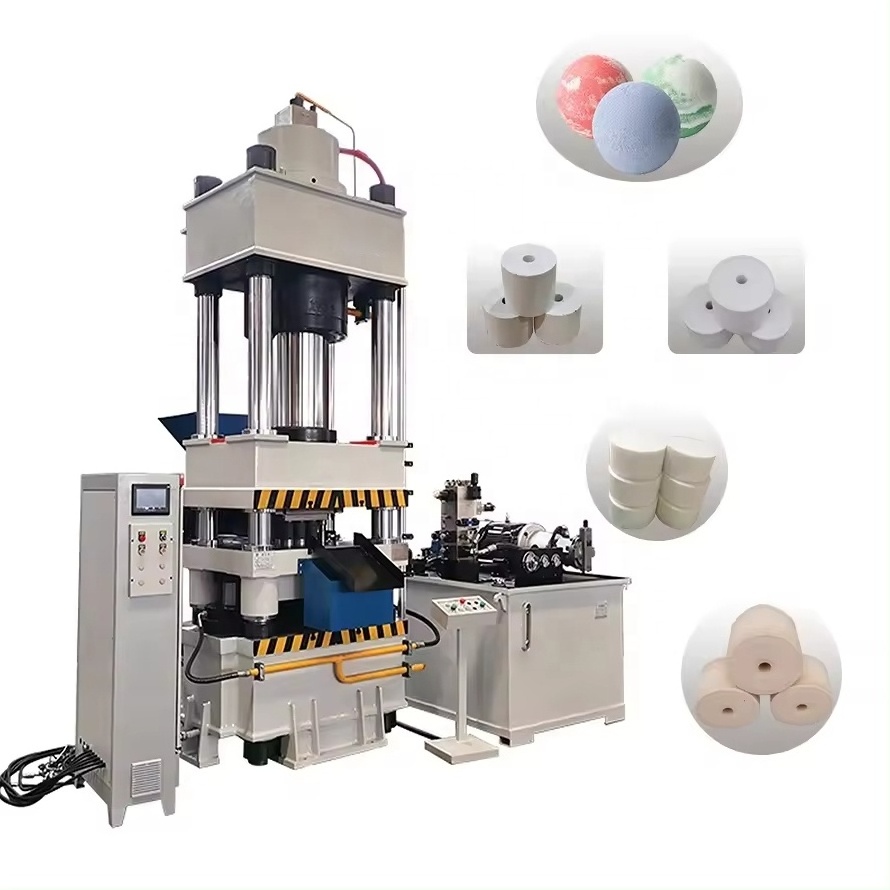

Powder Forming Press Machine
Cow and sheep licking brick hydraulic press, also known as salt licking machine, salt brick machine, or salt brick hydraulic press, is a hydraulic press that mixes mineral trace elements with salt powder and presses it into a cylindrical or square shape through a salt brick mould. Press equipment, equipped with a servo system, has the characteristics of high efficiency, energy saving, safety, economy, simplicity and so on. According to the medium weight and shape of the pressing, the commonly used tonnages are 315 tons, 400 tons, 500 tons, 630 tons, 800 tons and other four-column hydraulic presses. The equipment has been upgraded to the fourth generation. The fourth-generation 630-ton cattle and sheep brick-licking machine adopts a four-beam four-column hydraulic press structure and is equipped with a standard salt brick mold. One mould can produce two five-kilogram salt bricks, and the output can reach 1800 kg/hour. The moulding effect is good, the salt brick is dense and resistant to licking, and the customers are all over the country.
Specification
Product Name
|
Powder Forming Press Machine
|
Condition
|
New
|
Machine Type
|
Hydraulic Press Machine
|
Brand Name
|
KEWOSEN
|
Key Selling Points
|
High Productivity
|
Warranty
|
2 Years
|
Applicable Industries
|
Food & Beverage Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Restaurant, Printing Shops, Retail, Energy & Mining
|
Showroom Location
|
None
|
Marketing Type
|
New Product
|
Machinery Test Report
|
Provided
|
Video outgoing-inspection
|
Provided
|
Warranty of core components
|
2 Years
|
Core Components
|
Bearing, Motor, Pump, Engine
|
Place of Origin
|
Shandong, China
|
Project
|
315T
|
400T
|
500T - A
|
630T - A
|
800T
|
1000T
|
Effective stroke of master cylinder (mm)
|
500
|
500
|
500
|
500
|
600
|
600
|
Maximum opening height (mm)
|
1260
|
1400
|
1400
|
1400
|
1600
|
1600
|
Effective area of worktable (mm*mm)
|
1000*1000
|
1000*800
|
1000*900
|
1200*900
|
1400*1200
|
1500*1300
|
Idle descent speed
(mm/ s)
|
250
|
340
|
300
|
340
|
340
|
350
|
Pressing speed (mm/ s)
|
10-20
|
16-24
|
16-24
|
16-24
|
16-24
|
10-20
|
Return speed (mm/ s)
|
130
|
220
|
210
|
230
|
260
|
240
|
Motor power (kw)
|
22
|
22*2
|
22*2
|
30*2
|
37*2
|
45*2
|
Demoulding force (T)
|
30*2
|
63*2
|
80*2
|
80*2
|
125*2
|
150*2
|
Demoulding stroke (mm)
|
400
|
320
|
320
|
320
|
400
|
400
|
Weight (T)
|
10T
|
16T
|
12T
|
17T
|
28T
|
33T
|
Pressed product specification
|
3kg
|
5kg
|
10kg
|
5kg one time two piece
|
20kg
|
25kg
|
Details Images
Packing & Delivery
Ordinary plastic film packaging, fumigated wooden box packaging.
