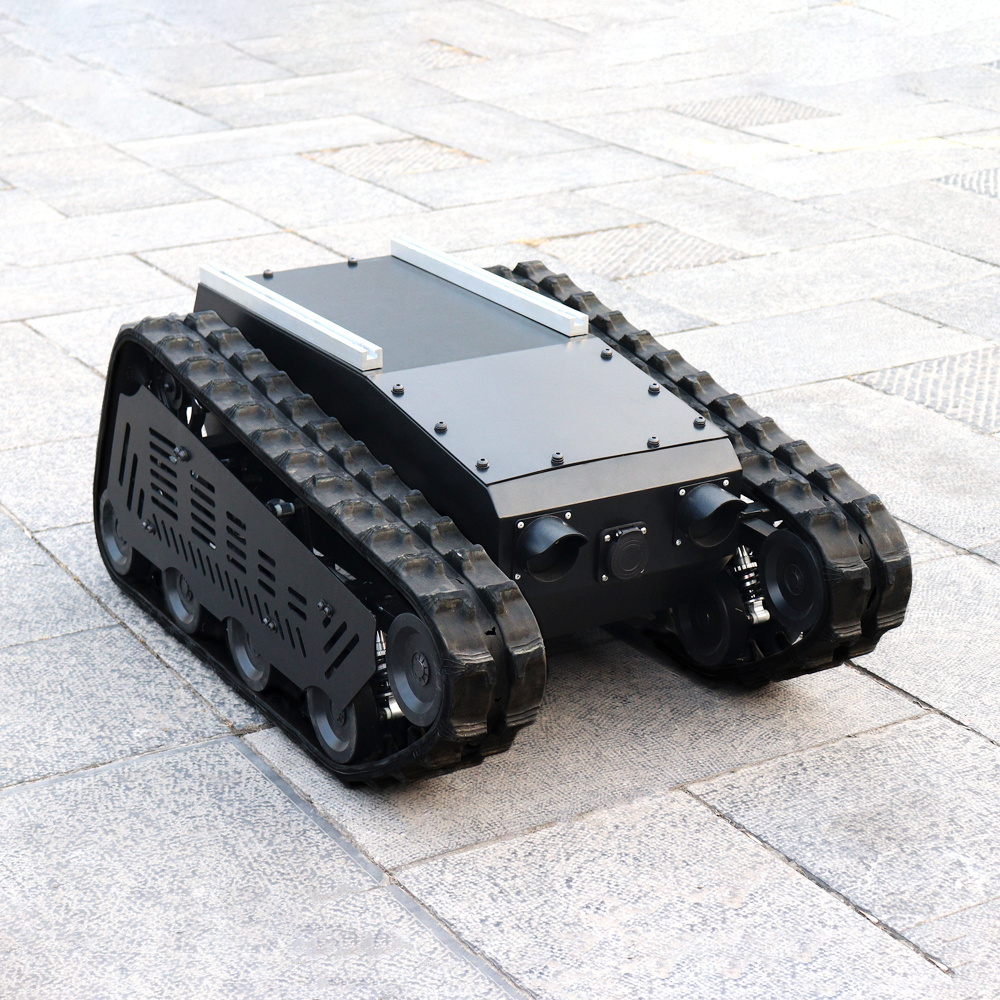

100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot
100kg payload All terrain small robot wheelchair rubber track chassis robot

100kg payload All terrain small robot wheelchair rubber track chassis robot

FOB Reference Price: Get Latest Price
≥1 Sets
US $4500
≥5 Sets
US $3800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Chassis Weight:
160KG
Design Size (mm):
1060*672*435mm
Speed:
0-8km/h
Motor Selection:
0.75KW*2 / 1.5KW*2
Rated Torque:
57NM / 76NM / 114NM
Load capacity:
40-100kg
Ground clearance:
150mm
Track Width:
130mm
Maximum Span:
720mm

Quick Details

Place of Origin:
China
Brand Name:
AVTBOT
Name:
large crawler undercarriage
Chassis Weight:
160KG
Design Size (mm):
1060*672*435mm
Speed:
0-8km/h
Motor Selection:
0.75KW*2 / 1.5KW*2
Rated Torque:
57NM / 76NM / 114NM
Load capacity:
40-100kg
Ground clearance:
150mm
Track Width:
130mm
Maximum Span:
720mm


TinS-8

As a multi-functional platform, TinS-8 can be equipped with a variety of equipment, such as camera, water gun, etc., which is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries.
Parameters:
Dimension:
1060*672*435mm
Inner battery space :
370*270*220mm
Self Weight :
160kg (include battery)
Speed :
0-8km/h
Waterproof :
IP65
Designed Load :
40-100kg
Track Width :
130mm
Rated Torque :
57NM / 76NM / 114NM
Gear Ratio :
1:15
Climbing Ability :
≤30°(can climb stairs)
Motor :
0.75KW*2 / 1.5KW*2
Motor Rated Speed :
3000r/min
Ground clearance :
150mm
Maximum Span :
720mm
Battery :
48v 50AH Lithium iron phosphate battery
280*260*220mm, 25kg
Continuous working time :
3-4h
Features:
1. Structural performance: The overall track structure of the chassis is designed in a diamond shape, with 150mm high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains.
2. Protection level: IP65.
3. Communication protocol: 485 communication, CAN protocol.
4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed.
5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection.
6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation.
7. Rubber tracks: good ground adhesion, long track grounding area.
8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track.
9. Widely applied in fields such as safety protection monitoring, explosive disposal robotic arm carriers, installation of robotic arms, cameras, lifting platforms, etc.
10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect.
11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system.
12. Switching control of high and low beams allows for night driving operations.
13. Support customization and secondary development.
14. Optional powerful dual degree of freedom Pan/Tilt, horizontal direction: torque 100NM, speed 180 °/s, vertical direction: torque 100NM, speed 180 °/s or torque 50NM, speed 360 °/s.
Packing and Shipping
Within 3-5 working days
Services
1 year warranty for main parts
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance
we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support
Video technical support
Online Service
your question will be answer within 24 hours during working days, 48 hours during holiday.
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.

20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
