Quick Details
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Voltage:
-
220V 50HZ or 110V 60HZ
-
Dimension(L*W*H):
-
XYZ=400*570*75mm
-
Weight (KG):
-
60
-
Control system:
-
Mach3 Control System
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Frame material:
-
6061-T5 aluminium alloy
-
Track type:
-
Chrome-plated + linear bearing
-
PositionaI accuracy:
-
0.05mm
-
Drive motor:
-
Steper Motors
-
Spindle speed:
-
0-24000RPM
-
Table Surface:
-
T-slot Table
-
Weight:
-
45.8
-
Power:
-
300
Quick Details
-
Working Table Size(mm):
-
600x400
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Voltage:
-
220V 50HZ or 110V 60HZ
-
Dimension(L*W*H):
-
XYZ=400*570*75mm
-
Weight (KG):
-
60
-
Control system:
-
Mach3 Control System
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Frame material:
-
6061-T5 aluminium alloy
-
Track type:
-
Chrome-plated + linear bearing
-
PositionaI accuracy:
-
0.05mm
-
Drive motor:
-
Steper Motors
-
Spindle speed:
-
0-24000RPM
-
Table Surface:
-
T-slot Table
-
Weight:
-
45.8
-
Power:
-
300

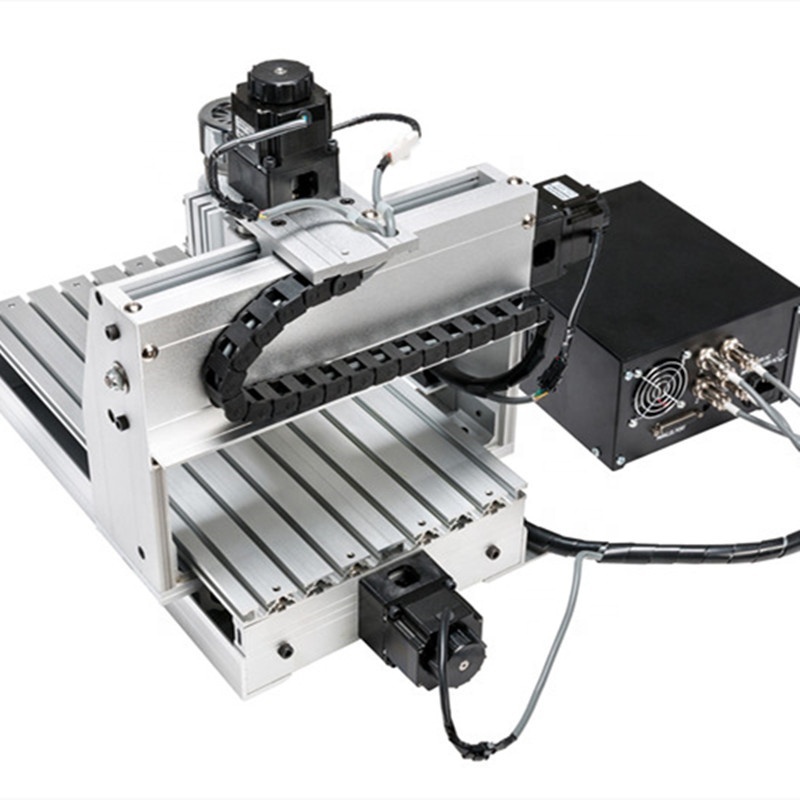

CNC router 6040 metal mini cnc milling machine for pcb carving
|
Type |
6040 |
|
Max working travel |
XYZ=400*570*75mm |
|
Machinable material thickness |
≤100mm |
|
Dimensions |
750*570*390mm |
|
Frame material |
6061-T5 aluminium alloy |
|
Track type |
Chrome-plated + linear bearing |
|
Spiral type |
Ball screw, diameter of 16mm, Thread pitch 5mm |
|
|
|
|
Mechanical resolution |
XYZ axis:0.0025mm/step |
|
PositionaI accuracy |
0.05mm |
|
Spindle motor |
Frequency conversion spindle, 0.8kw |
|
Revolving speed |
24000rpm/min |
|
Holder |
ER11(3.175mm,6mm) |
|
XYZ motor |
Stepper motor JK57HS76-4204B-01AF |
|
Stepper driver |
High performance, independent of each axis |
|
Feed rate |
2000mm/min |
|
Communication Interface |
USB2.0 |
|
System requirement |
WIN-XP or WIN-7 |
|
Instruction code |
G code/.nc/.ncc/ .tab/.txt |
|
Voltage |
Input 85V-240VAC(400HZ) |
|
Operating environment |
Temperature: 5 ℃ -40 ℃ ; Humidity: 35%-80 % |
|
Packaging size |
45.8kg (86*62*48mm) |
Wide range of application:
Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,
badge, electric circuitry and carpentry field.
Suitable for Materials:
Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum,
brass, steel.
a. Working platform is cast wholly and firmly with aluminum alloy.
b. Desktop table model, small size easy to move and use, smart working, high precision.
c. High speed stepper driver and motor system, high working efficiency.
d. Dust-proof and water-proof device ensures the machine safe, clean and easy for maintenance.
e. Human-friendly design, easy operating and transporting.
f. advanced Mach3 control system with memory to ensure the processing point when the blade is broken or power off situation.
g. Specific saving mode of different points.
1.Warm Tips:
All the parts of machine can do some changes to meet your requirements.
1.motor (step motor or servo motor optional)
2.spindle (air cooled or water-cooled optional )
3.guide rail (linear guide rail or square linear guide optional )
4.the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table,Normal table,Table moving)
2.Payment terms:
1 You can pay 30% by T/T(bank transfer) in advance ,when we finished the machine ready for shipping ,you pay the 70% left.
2 You can pay by Escrow by Alibaba
3.Delivery time:
within10working days.If we see the scanner of bank receipt /confirmation by email ,we will take into producing ,ad ship it to you .
4.Our technical support and quality assurance as follows:
1.warranty:1 years
2.replace all accessories during the waranty period for free(except wearing parts and artificial damage)
3.Provide 24 th technology online support
