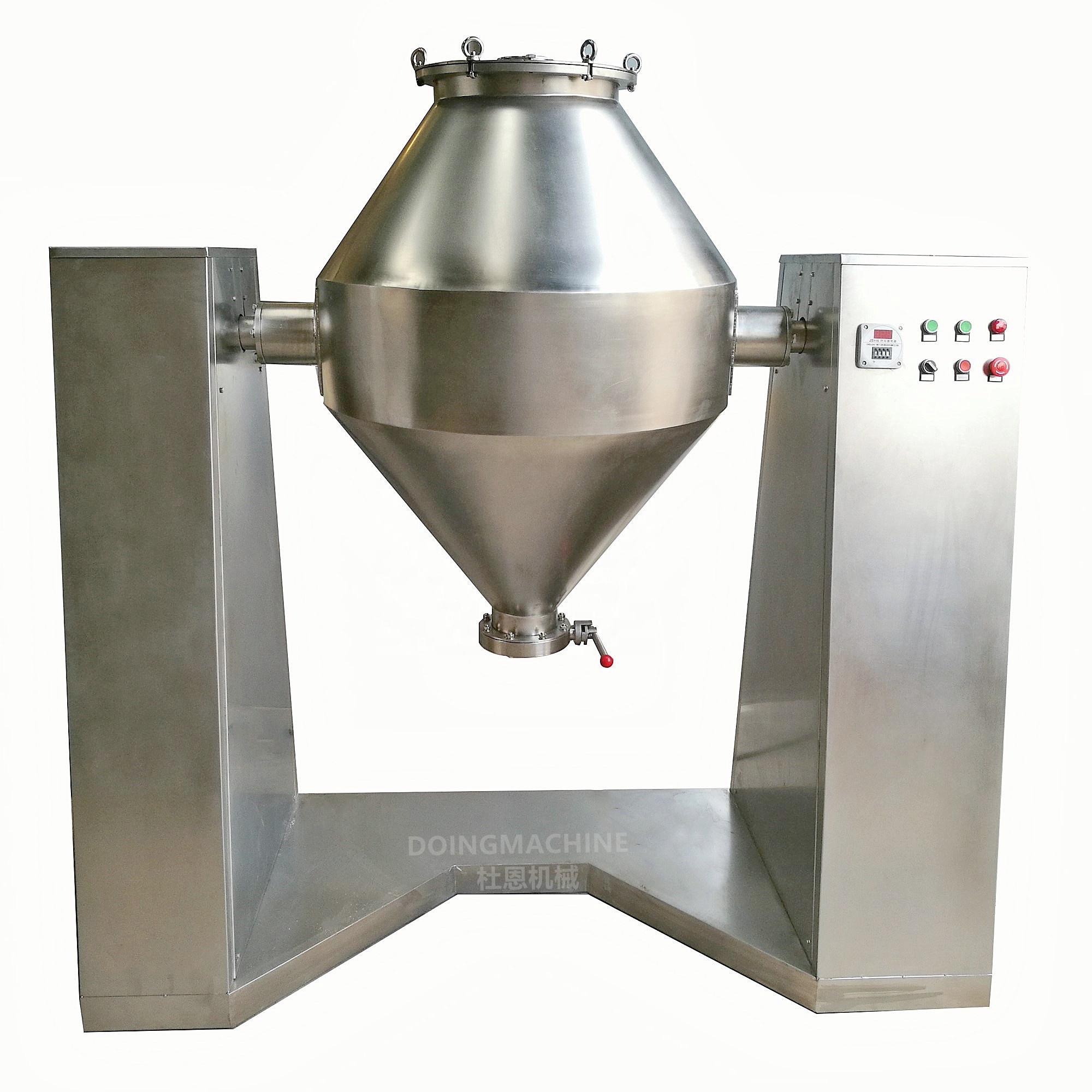

Double cone dry powder blender

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Loading Capacity:: 300-600 kg/batch

Weight (KG):: 810 KG

Place of Origin:: Jiangsu, China

Brand Name:: Doing Machine

Voltage:: 380V/50Hz,3P

Dimension(L*W*H):: 2500*1350*2450mm

Power (kW):: 4 kW

Name:: Double cone dry powder blender

Model:: SZH-1000

Working volume:: 600L

Loading capacity:: 300-600 kg/batch

mixing time:: 4-10minutes/batch

construction material:: SUS 304 ,SUS316

Feeding type:: manual or vacuum conveyor

Rotation height:: 2460

Quick Details

Barrel Volume (L):: 1000 L

Max. Loading Volume (L):: 600 L

Range of Spindle Speed(r.p.m):: 1 - 12 r.p.m

Max. Loading Capacity:: 300-600 kg/batch

Weight (KG):: 810 KG

Place of Origin:: Jiangsu, China

Brand Name:: Doing Machine

Voltage:: 380V/50Hz,3P

Dimension(L*W*H):: 2500*1350*2450mm

Power (kW):: 4 kW

Name:: Double cone dry powder blender

Model:: SZH-1000

Working volume:: 600L

Loading capacity:: 300-600 kg/batch

mixing time:: 4-10minutes/batch

construction material:: SUS 304 ,SUS316

Feeding type:: manual or vacuum conveyor

Rotation height:: 2460

Product Description

Main features

1. Intimately mix dry powder or small granules with good flowability

2. Mixing chamber volume: 180-2000L

3. GMP design

4. Agitator can be equipped to strengthen the mixing effect

5. Can work with vacuum conveyor to achieve automatic and dust-free feeding

Working principle

SZH series double cone mixer/blender is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing chamber via quick-open feed port manually or by vacuum conveyor. With the rotation of mixing chamber, materials is completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.

SZH series double cone mixer/blender is widely used in chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.

Technical advantages

1. Mirror polished of inner and outer shell to meet GMP standard.
2. No blind angle in mixing chamber, no accumulation of materials, high speed I-bar, efficient and short mixing time.
3. Mixing uniformity can reach 99%
4. Plate valve is equipped for discharging
5. Fully integrated motors and controls
6. Can work with vacuum feeding system to create dust-free working condition .

Main Technical Parameters

Model	SZH-180	SZH-300	SZH-500	SZH-1000	SZH-1500	VHJ-2000
Volume L	180	300	500	1000	1500	2000
Capacity kg/batch	40	60	100	200	300	400
Mixing time Min	4-8	6-10	6-10	6-10	6-10	6-10
Rotation speed RPM	12	12	12	12	10	10
Motor power KW	1.1	1.1	2.2	4	4	7.5
Dimension LxWxH M	1.4X0.8X1.8	1.7X0.8X1.9	1.9X0.8X2	2.8x1.5x2.4	2.9x1.5x2.5	3.4x1.9x3.5
Totation height mm	1850	1850	1950	2460	2540	3.650
Weight kg	280	310	550	810	980	2150

Detailed Images

Feed port

Intensifier bar

Discharge valve

Working with vacuum conveyor

Typical Applications

Protein powder

Seasoning powder

Chemical powder

Packing & Delivery

FAQ

Q: What information should be provided in order to get a proposal or quotation?
A: Our double cone mixer can be customerized. To work out a detailed proposal or quotation, we have to know the following information:

1) Particle size of products to be mixed
2) Bulk density of products to be mixed
3) Mixing capacity
4) Construction material:SUS304 or SUS316L

Q: How the machine will be delivered ?
A: The mixer is packed in plywood box for shipping
