Quick Details
-
Name:
-

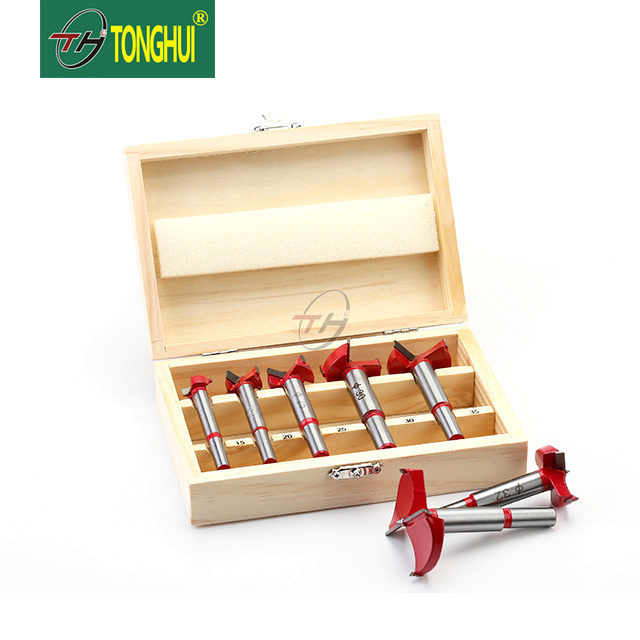

TCT Hinge Boring Forstner Drill Bit Sets/Kits For Wood
-
Application:
-
Hardwood, Soild wood, Chipboard, Plywood
-
Usage:
-
Drill hole
-
Size:
-
15-200mm
-
Length:
-
80mm
-
Color:
-
Red or others
-
Packing:
-
Blister
-
Supply mode:
-
Factory direct supply
-
OEM:
-
Acceptable
-
Samples:
-
Available
Quick Details
-
Type:
-
Center Drill Bit
-
Use:
-
Wood Drilling
-
Place of Origin:
-
Zhejiang, China
-
Name:
-
TCT Hinge Boring Forstner Drill Bit Sets/Kits For Wood
-
Application:
-
Hardwood, Soild wood, Chipboard, Plywood
-
Usage:
-
Drill hole
-
Size:
-
15-200mm
-
Length:
-
80mm
-
Color:
-
Red or others
-
Packing:
-
Blister
-
Supply mode:
-
Factory direct supply
-
OEM:
-
Acceptable
-
Samples:
-
Available
NEED MORE INTRODUCTION? CLICK HERE!
| PRODUCT DETAILS | ||
| Here we are: Home > Wood drill bit > Wood Forstner Bit | ||
| Product Name | TCT Hinge Boring Forstner Drill Bit Sets/Kits For Wood | |
| Brand | TONGHUI | OEM/ODM is available |
| Material | Tungsten carbide tips | |
| Shank type | Round shank/Hex Shank | |
| Surface | Orange color (other colors are availabe) | |
| Compatible device | Pistol drill, Cordless drill, Bench drill and so on. | |
| Package |
Blister card with environmental friendly
Inner package: Strong paper box Outer package: Standard sea freight carton Or Customized package. |
|
| Features |
1) Made of premium 45# carbon steel body and High Tungsten carbide tips
2) Good heat resistance, long service life. Sharp cutting edge, Not easy to break 4) Advanced CNC grinding technology to reduce the cutting resistance and achieve fine surface without burr. 5) High performance-to-price ratio, high work efficiency.Remove the chips easily,high speed and less heat 6) Bore precise, flat-bottomed holes in solid wood,hard wood,laminated board,chipboard and plywood,etc |
|
CUSTOMIZED SERVICE? CLICK HERE!
| SPECIFICATION PARAMETER | |||
| Spec.(mm) | Dia. (mm) | Length | Shank Dia. |
| φ15 | 15 | 80mm | 8mm |
| φ16 | 16 | ||
| φ18 | 18 | ||
| φ19 | 19 | ||
| φ20 | 20 | ||
| φ22 | 22 | ||
| φ25 | 25 | ||
| φ26 | 26 | ||
| φ28 | 28 | ||
| φ30 | 30 | ||
| φ32 | 32 | 10mm | |
| φ35 | 35 | ||
| φ38 | 38 | ||
| φ40 | 40 | ||
| φ42 | 42 | ||
| φ45 | 45 | ||
| φ48 | 48 | ||
| φ50 | 50 | ||
| φ53 | 53 | ||
| φ55 | 55 | ||
| φ60 | 60 | ||
|
We provide customized service of diameter, overall length, shank type, color and package. Please contact us! |
|||
TCT Hinge Boring Forstner Drill Bit Sets/Kits For Wood
Forstner bits, named after their inventor, Benjamin Forstner, bore precise, flat-bottomed holes in wood, in any orientation with respect to the wood grain. They can cut on the edge of a block of wood, and can cut overlapping holes. Because of the flat bottom to the hole, they are useful for drilling through veneer already glued to add an inlay. They require great force to push them into the material, so are normally used in drill presses or lathes rather than in portable drills. Unlike most other types of drill bits, they are not practical to use as hand tools.
The bit includes a center point which guides it throughout the cut (and incidentally spoils the otherwise flat bottom of the hole). The cylindrical cutter around the perimeter shears the wood fibers at the edge of the bore, and also helps guide the bit into the material more precisely. The tool in the image has a total of two cutting edges in this cylinder. Forstner bits have radial cutting edges to plane off the material at the bottom of the hole. The bit in the image has two radial edges. Other designs may have more. Forstner bits have no mechanism to clear chips from the hole, and therefore must be pulled out periodically.
Sawtooth bits are also available, which include many more cutting edges to the cylinder. These cut faster, but produce a more ragged hole. They have advantages over Forstner bits when boring into end grain.
Bits are commonly available in sizes from 8–50 mm (0.3–2.0 in) diameter. Sawtooth bits are available up to 100 mm (4 in) diameter.Originally the Forstner bit was very successful with gunsmiths because of its ability to drill an exceedingly smooth-sided hole.
(from Wikipedia)
Prompt Production & Delivery
Available in Various Requires
Customized Specifications Accepted
OEM & ODM Service and Buyer Label Offered
Quick Response to Your Inquiry on Line, Email, or Telephone
