Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowin
-
Marking Head Brand:
-
Sino Galvo 7110 or Ouya M
-
Weight (KG):
-
67 KG
-
Marking Area:
-
110mm*110mm/200*200mm/300*300mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts
-
Product name:
-
Mini fiber laser machine
-
Laser source:
-
Raycus fiber laser
-
Marking Speed:
-
7000mm/S
-
Laser wavelength:
-
1064nm
-
Laser Power:
-
20W/30W/50W
-
Applicable Material:
-
Jewelry laser engraving machine
-
Keywords:
-
Fiber laser engraving machine
-
Marketing Type:
-
High quality
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT, JPG, TIF, etc
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowin
-
Marking Head Brand:
-
Sino Galvo 7110 or Ouya M
-
Weight (KG):
-
67 KG
-
Marking Area:
-
110mm*110mm/200*200mm/300*300mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts
-
Product name:
-
Mini fiber laser machine
-
Laser source:
-
Raycus fiber laser
-
Marking Speed:
-
7000mm/S
-
Laser wavelength:
-
1064nm
-
Laser Power:
-
20W/30W/50W
-
Applicable Material:
-
Jewelry laser engraving machine
-
Keywords:
-
Fiber laser engraving machine
-
Marketing Type:
-
High quality
Price Of High Definition Laser Printer For Passport 3d Red Stamp Lazer Machine

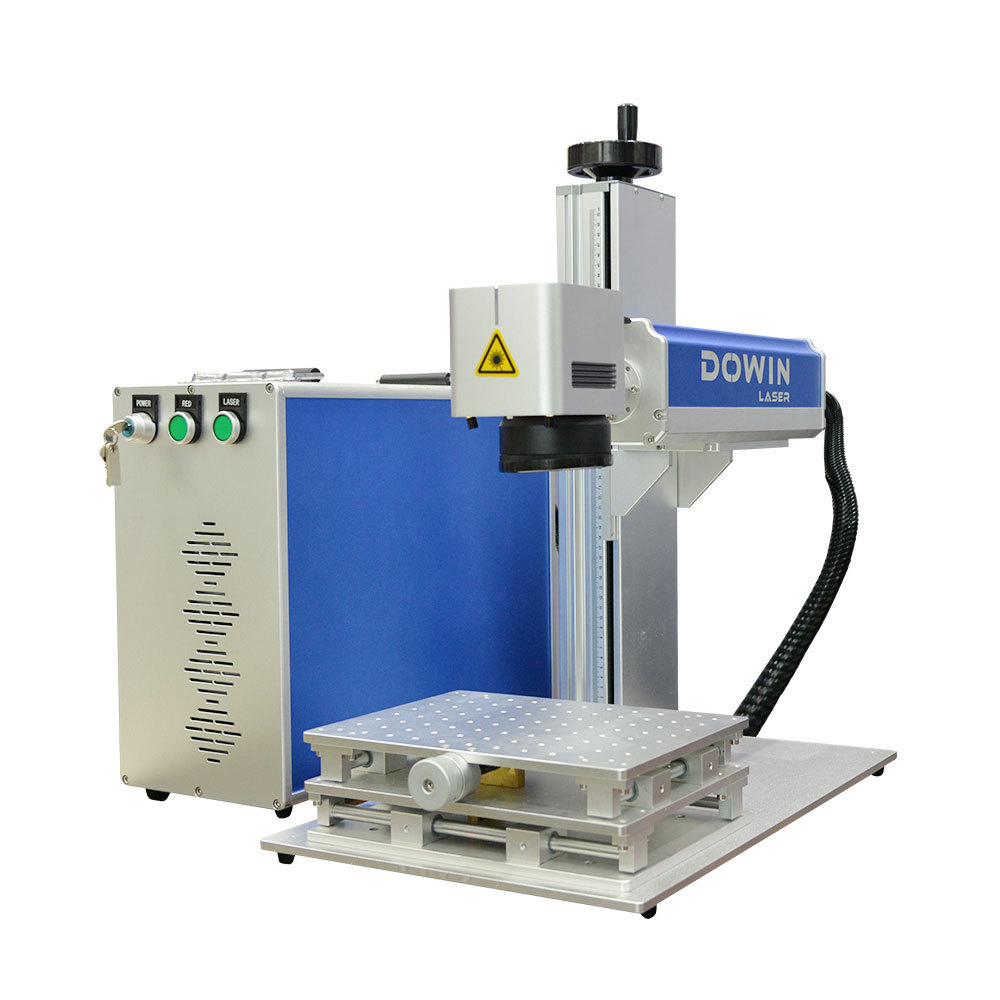

DOWIN standard fiber laser marking machine is a kind of high quality, high performance fiber laser marking machine.This series are based on the domestic and foreign market, and configure of the international famous brand fiber lasers and galvo scanner etc. core optical devices, and improve the performance and stability,greatly reduces the failure rate of the product. Digital configuration of the company independent research and development of high-speed marking control card and powerful software.
Satisfy various industry high demands of marking application. Mark the products and packaging shell machine can be widely used in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronic components and other sectors of the marking, has the advantages of high efficiency , high quality, low consumption, no pollution.
| Model | DW-20FD |
| Work Area | 110*110mm/150*150mm/200*200mm/300*300mm ( Optional ) |
| Laser Power | 20W/30W/50W/100W |
| Fiber laser generator | Raycus/JPT |
| Laser Pulse Frequency | 20KHz – 200KHz |
| Laser scanner | Sino-Galvo SG7110 |
| Red light dot | Yes |
| Power supply | Taiwan MW (Meanwell) |
| Wavelength | 1064±10nm |
| Beam Quality M2 | <2 |
| Min Line Width | 0.01mm |
| Min Character | 0.15mm |
| Marking Speed | ≤10000mm/s |
| Marking Depth | ≤0.5mm |
| Repeat Precision | ±0.01mm |
| Power Supply | 110V /220V(±10%)/50Hz/4A |
| Gross Power | <500W |
| Laser Module Life | 100000h |
| Cooling Style | Air Cooling |
| System Composition | Laser source, Control System, Industrial Computer, Vibration lens |
| Working Environment | Clean and Dust Free |
| Operating Temperature | 10℃-35℃ |
| Humidity | 5% to 75% (Free of Condensed Water) |
| Power | AC220V, 50HZ, 10Amp Stable Voltage |
| Warranty | 3 years |
| Dimension (cm) | 65*75*80cm |
| Weight (kg) | 65kgs |
Price Of High Definition Laser Printer For Passport 3d Red Stamp Lazer Machine Details:
Laser source :
Radio frequency tube laser source with high laser energy,fine laser path,low fault rate.the life time can up 100,000hours
Taiwan Meanwell power supply : Power supply for galvo head and control board.High efficiency,low working temperature.
Lifting Handle :
To rotate the handle to adjust the height to get focus of laser as per the working piece.it is for 500mm height adjustable.
High-speed Digital Galvanometer scanning ststem :High speed scanning galvanometer with Germany SCANLAB technology,with fast marking speed,digital signal,high precision.
Mini portable split 20W 30W 50W Raycus Fiber Laser Marking Printing Engraving Machine JPT Mopa Jewelry Color metal engraver
Packing details:
Samples of Mini portable split 20W 30W 50W Raycus Fiber Laser Marking Printing Engraving Machine JPT Mopa Jewelry Color metal engraver :
Could choose Rotary as optional:
Mini portable split 20W 30W 50W Raycus Fiber Laser Marking Printing Engraving Machine JPT Mopa Jewelry Color metal engraver
Factory show:
FAQ:
Q1: Does it include computer?
Quotation doesnt include computer,please tell us know if you need computer.
Q2: does it include rotary.
Rotary is optional. please tell us in advance if you need rotary.
Q3: what about the marking size.
Standard model Marking machine size is 110*110mm, could choose also 200*200mm or 300*300mm , according to the power you choose, please choose marking size the small the better
Q4:What's the guarantee, in case the machine breaks down?
The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5:This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to
use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q6:How's the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU) or via alibaba trade insurance order payment
Q7:Do You Arrange Shipment For The Machines?
Yes, we could help to ship by sea or by air plane.
Q8:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
