- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
100 mm
-
Travel (W-axis) (mm):
-
1 mm
-
Range of Spindle Speed(r.p.m):
-
255 r.p.m
-
Spindle Motor Power(kW):
-
3.1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
S POWER
-
Voltage:
-
220V
-
Weight (T):
-
0.16 T
-

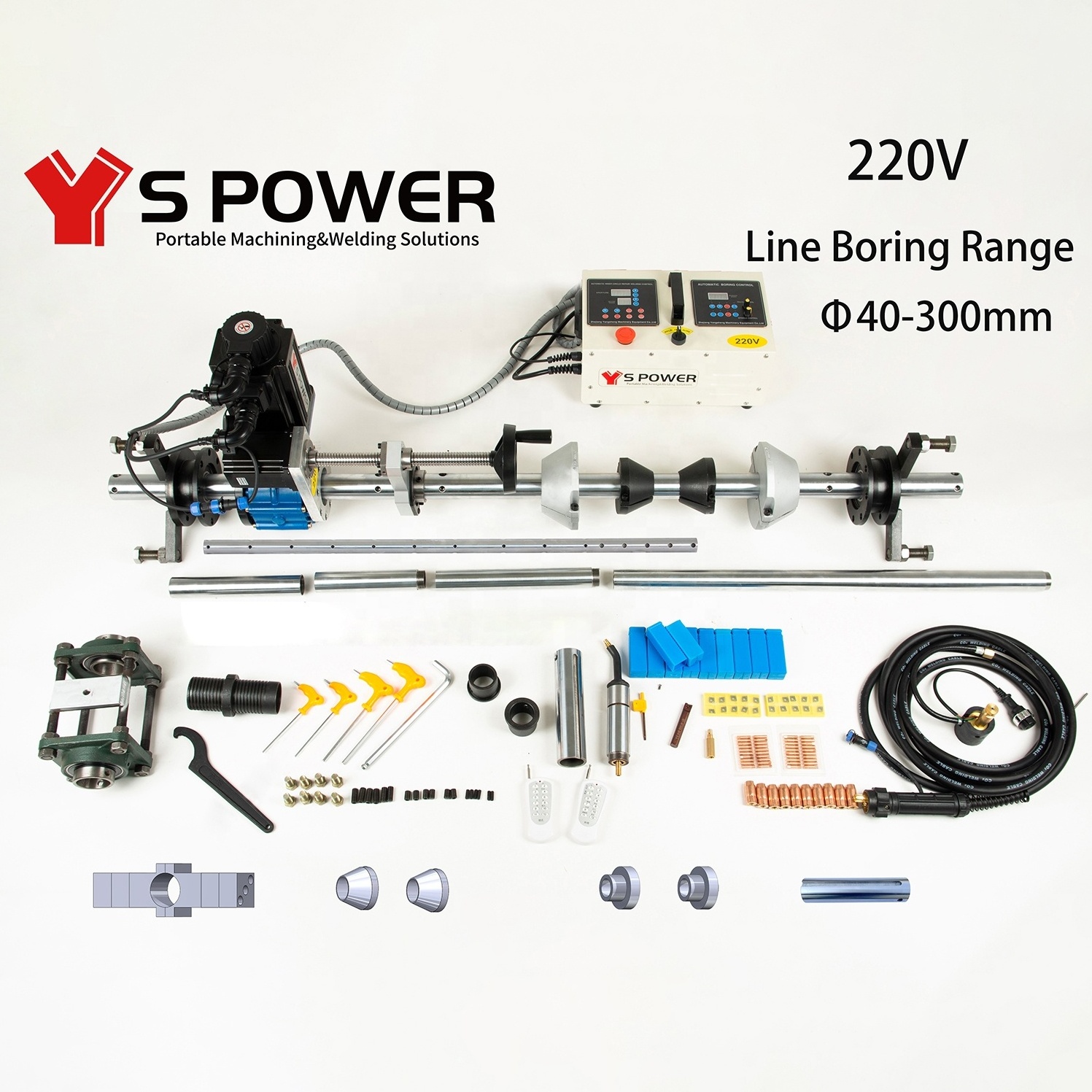

Product name:
-
Line boring
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
280 mm
-
Table Travel (Y) (mm):
-
300 mm
-
Table Travel (Z) (mm):
-
100 mm
-
Travel (W-axis) (mm):
-
1 mm
-
Range of Spindle Speed(r.p.m):
-
255 r.p.m
-
Spindle Motor Power(kW):
-
3.1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
S POWER
-
Voltage:
-
220V
-
Weight (T):
-
0.16 T
-
Product name:
-
Line boring
NOTICE
Before put order, please check final price with our customer service. Our offer is EXW China factory. As some country we can not handle the transport and destination import, need client handle transport and import by yourself and its cost. Our offer is EXW factory price only. not include transport and other cost.
Package have flywood and carton . one set machine will include 4 ~5 small packages. one set total weight about 135~165 Kgs . Cubic about 0.45m³ more or less.
PRODUCT SPECIFICATION
|
No.
|
Name
|
Data
|
|
|
Main motor rated output power
|
3.1kw
|
|
|
Voltage
|
220v/380v
|
|
|
Feed motor rated output power
|
0.4kw
|
|
|
Rotation speed
|
50-255rpm
|
|
|
Speed mode
|
Stepless speed
|
|
|
Axial feeding mode
|
Auto/Manual
|
|
|
Axial feed speed
|
0.01-0.5
|
|
|
Axial feed single stroke
|
280mm
|
|
|
Boring bar diameter
|
50mm
|
|
|
Boring bar length
|
1600mm
|
|
|
Cutting thickness
|
0.02-8mm
|
|
|
Ovality tolerance
|
±0.02mm
|
|
|
Taper tolerance
|
±0.01mm
|
|
|
Ra
|
3.2
|
|
|
Welding bar diameter
|
40mm
|
|
|
Welding thickness
|
3-4mm
|
|
|
Welding wire length
|
4540mm
|
|
|
Welding bar length
|
200mm/240mm/350mm/800mm
|
|
|
Welding bar assembly total length
|
1400mm
|
|
|
Applicable MIG welding machine
|
200-500 type
|
|
|
Applicable welding wire diameter
|
0.8mm/1.0mm/1.2mm
|
|
|
Welding function
|
Spiral Welding, Sector Welding, Jump Welding
|
|
|
|
|
PRODUCT CONFIGURATION
FAQ
Before put order , please check final price with our customer servicer .As some country we can not manage the transport and
destination import process ,need clients manage transport and import by themself . we can only deliver to China sea port warehouse
. if not confirm final price with us yet, we can not ship machines .
Q: Are you trading company or manufacturer? A: We are professional manufacturer factory. Q: Can you do OEM and ODM? A: Yes, OEM
and ODM are both acceptable. Q: Can we use our own logo? A: Yes, we can print your private logo according to your request. Q: what
packaging do you use ? A: plywood and carton package. Q: When can I get the price? A: Usually we quote within 8 hours after we get
your inquiry. Q: How long is your delivery time? A: against payment ,about 3~30 days dispatch from our factory . depand on
different products and supply scope/ Q: Which certificate do you have? A: CE Q: What’s is your shipping service? A: We can provide
services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the
shipping port. but some countries can not , you need check with us before put order . Q: What’s your term of the delivery? A: Our
delivery term is FCA , FOB China usually. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you
can choose the one which is the most convenient and effective for you.
destination import process ,need clients manage transport and import by themself . we can only deliver to China sea port warehouse
. if not confirm final price with us yet, we can not ship machines .
Q: Are you trading company or manufacturer? A: We are professional manufacturer factory. Q: Can you do OEM and ODM? A: Yes, OEM
and ODM are both acceptable. Q: Can we use our own logo? A: Yes, we can print your private logo according to your request. Q: what
packaging do you use ? A: plywood and carton package. Q: When can I get the price? A: Usually we quote within 8 hours after we get
your inquiry. Q: How long is your delivery time? A: against payment ,about 3~30 days dispatch from our factory . depand on
different products and supply scope/ Q: Which certificate do you have? A: CE Q: What’s is your shipping service? A: We can provide
services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the
shipping port. but some countries can not , you need check with us before put order . Q: What’s your term of the delivery? A: Our
delivery term is FCA , FOB China usually. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you
can choose the one which is the most convenient and effective for you.
