Quick Details
-
Shredding Medium:
-
Card, CD, Paper, pipe
-
Size:
-
Normal
-
waste carton recycling machine:
-
waste carton recycling machine
-
carton shredder machine:
-
carton shredder machine
-
Capacity:
-
100-1000kg/h
-
Shaft Design:
-
Single
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
Electricity
-
Shredder Type:
-
Cross-Cut, Strip-Cut
-
Shredding Medium:
-
Card, CD, Paper, pipe
-
Size:
-
Normal
-
waste carton recycling machine:
-
waste carton recycling machine
-
carton shredder machine:
-
carton shredder machine
-
Capacity:
-
100-1000kg/h
-
Shaft Design:
-
Single
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

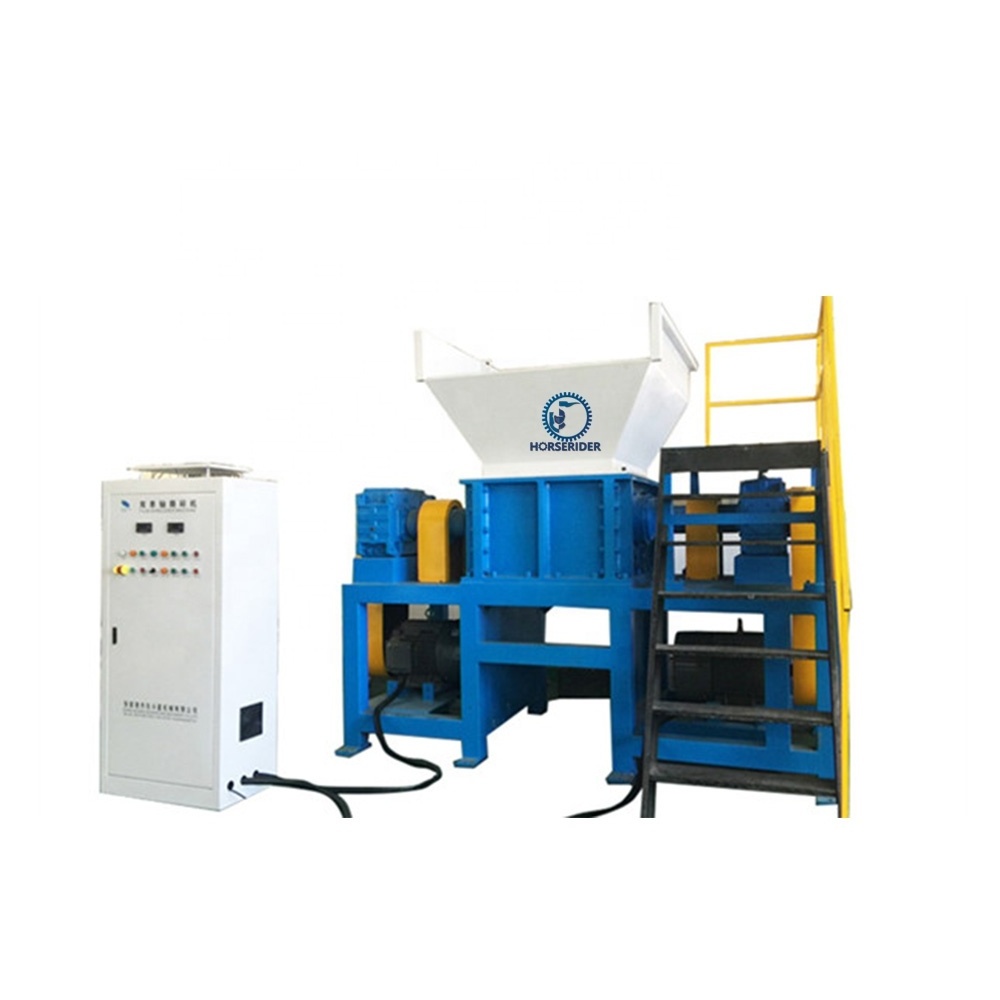

Double shaft plastic and waste wood shredder / papaer shredder / cardboard shredder / waste plastic shredder / plastic bottle shredder with long working life & low noise
Main features:
1.the machine with big feeding mouth, it can put the big plastic or rubber product freely.
2.the rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3.the machine is control by PLC system; the blade can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service
4.the machine runs slowly with low noise and less dusty
5.the blade material with special alloy steel made, with long life
Usage:
Double Shaft Shredder, plastic shredding machinery/equipment/plant, twin/two shaft shredder/crusher
1. The machine can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film, which are difficult to be shredded by single shaft shredder.
2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber, and substantial, so good-sized material is practicable.
3. Revolving knife is designed and processed particular in thickness, shape, arrange order and so on.
4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.
5. The knife is made from special alloy steel, sturdy and durable.
Main Technical Parameters
|
Model |
Power (kw) |
Number of revolving knife |
Thickness of knife (mm) |
Diameter of knife (mm) |
Number of blade |
Dimension of crushing chamber (mm) |
Output (kg/h) |
Outline dimension L*W*H) |
Weight (kg) |
|
600 |
11 |
12 |
50 |
φ280 |
5 |
600*550 |
300~800 |
3000*2000*2100 |
About 2800 |
|
600 |
15 |
12 |
50 |
φ280 |
5 |
600*550 |
300~800 |
3000*2000*2100 |
About 2900 |
|
800 |
22 |
16 |
50 |
φ300 |
5 |
800*600 |
500~1500 |
3600*2000*2420 |
About 4100 |
|
800 |
37 |
16 |
50 |
φ300 |
5 |
800*600 |
500~1500 |
3600*2000*2420 |
About 4300 |
|
1000 |
2×30 |
20 |
50 |
φ350 |
5 |
1000*700 |
1000~2000 |
3500*2000*2820 |
About 6500 |
|
1200 |
2*30 |
24 |
50 |
φ400 |
5 |
1200*800 |
1500~2500 |
3800*2000*2820 |
About 7000 |
|
1600 |
2×37 |
22 |
70 |
φ450 |
5 |
1600*900 |
2000~3000 |
4700*2000*3000 |
About 10500 |
