Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
Rebar Mesh
-
Brand Name:
-
YONGTAI
-
Product name:
-

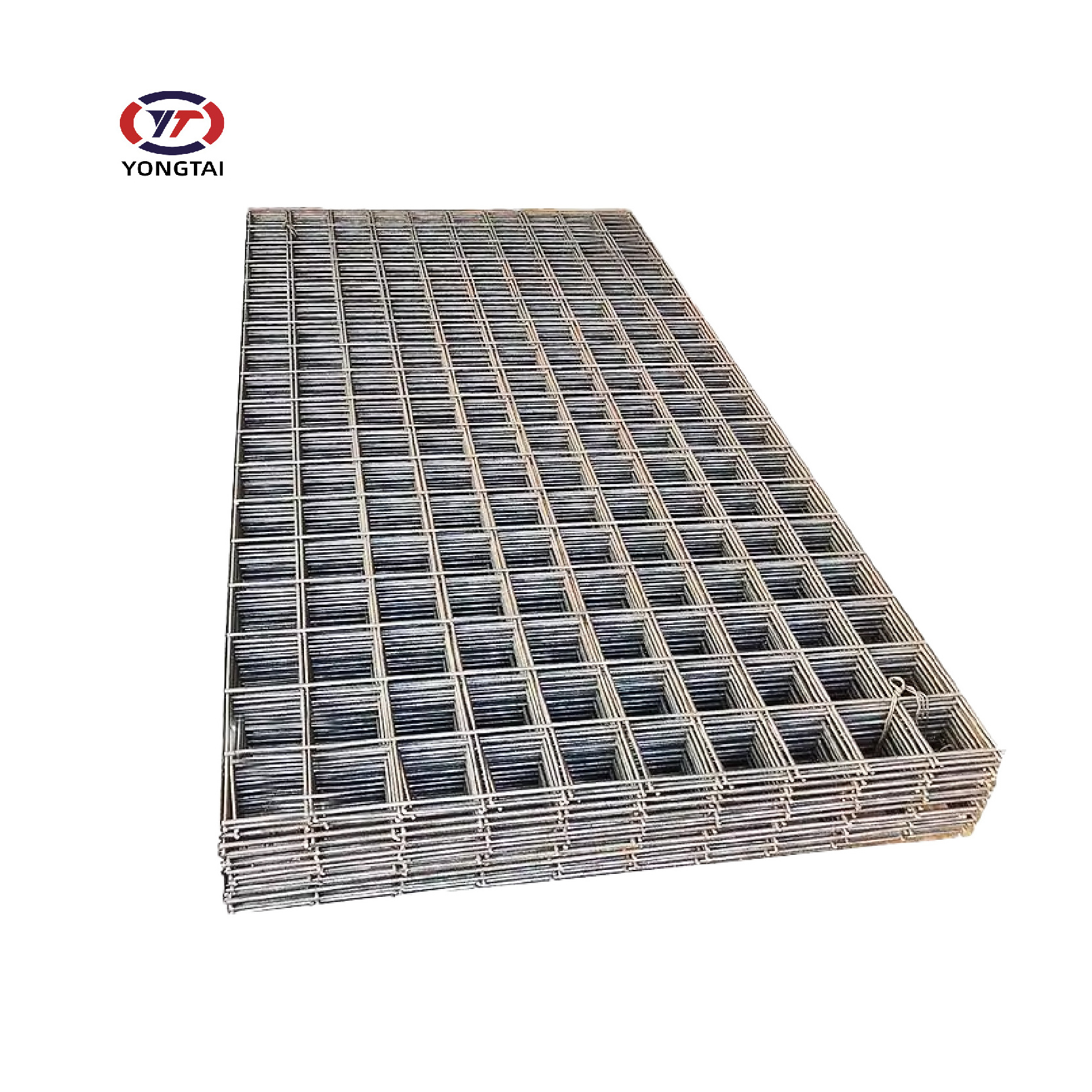

welded concrete reinforced mesh
-
Usage:
-
Protection
-
Feature:
-
Corrosion Resistance
-
Hole shape:
-
Square Hole
-
Certificate:
-
ISO9001
-
Surface treatment:
-
Black, self colour, hot dip galvanized, painted, spray coating
-
Keyword:
-
welded concrete reinforced mesh
-
Advantage:
-
construction reinforcement
-
Weaving type:
-
Plain Weave\Twill Weave\Dutch Weave
-
MOQ:
-
1 Square Meter
Quick Details
-
Material:
-
Black Wire Mesh
-
Type:
-
Welded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
China
-
Model Number:
-
Rebar Mesh
-
Brand Name:
-
YONGTAI
-
Product name:
-
welded concrete reinforced mesh
-
Usage:
-
Protection
-
Feature:
-
Corrosion Resistance
-
Hole shape:
-
Square Hole
-
Certificate:
-
ISO9001
-
Surface treatment:
-
Black, self colour, hot dip galvanized, painted, spray coating
-
Keyword:
-
welded concrete reinforced mesh
-
Advantage:
-
construction reinforcement
-
Weaving type:
-
Plain Weave\Twill Weave\Dutch Weave
-
MOQ:
-
1 Square Meter
Product Description
Specification
Any size and specifications
can all be customized,
please
contact us,
our
24-hour online
service.
|
Product Name
|
welded concrete reinforced mesh
|
|
|
|
|||
|
Material
|
Carbon steel rebar.
|
|
|
|
|||
|
Surface treatment
|
Hot dip galvanized after/before welded,
Electric galvanized after/before welded, |
|
|
|
|||
|
1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
|
|
|
|
|
|
|
||||||
|
Ref No.
|
Std Unit
|
Longitudinal Wires(mm)
|
Cross Wire(mm)
|
Pitch of Wire(mm)
|
Mass(Kg)
|
Mass(Kg/m2)
|
||||||
|
Q131
|
Sheet
|
5
|
5
|
150@150
|
22.476
|
2.091
|
||||||
|
Q181
|
Sheet
|
6
|
6
|
150@150
|
32.401
|
3.014
|
||||||
|
Q221
|
Sheet
|
6.5/5.0
|
6.5
|
150@150
|
33.707
|
3.316
|
||||||
|
Q295
|
Sheet
|
7.5/5.5
|
7.5
|
150@150
|
44.245
|
4.116
|
||||||
|
Q378
|
Sheet
|
8.5/6
|
8.5
|
150@150
|
66.659
|
5.157
|
||||||
|
2. Australia/New Zealand standard AS/NZS 4671:2001(SIZE:6000X2400mm)
|
|
|
|
|
|
|||||
|
Ref No.
|
Std Unit
|
Longitudinal
Wires(mm)
|
Edge wires
(mm)
|
Cross
Wires(mm）
|
Mass(Kg)
|
|||||
|
SL81(F81)
|
Sheet
|
7.6 @100
|
7.60 @100
|
7.60 @100
|
105
|
|||||
|
SL102(F102)
|
Sheet
|
9.5 @200
|
6.75 @100
|
9.50 @200
|
80
|
|||||
|
SL92(F92)
|
Sheet
|
8.6 @200
|
6 @100
|
8.60 @200
|
66
|
|||||
|
SL82(F82)
|
Sheet
|
7.6 @200
|
5.37 @100
|
7.60 @200
|
52
|
|||||
|
SL72(F72)
|
Sheet
|
6.75 @200
|
4.77 @100
|
6.75 @200
|
41
|
|||||
|
SL62(F62)
|
Sheet
|
6@200
|
4.77 @100
|
6 @200
|
33
|
|||||
|
SL52(F52)
|
Sheet
|
4.77 @200
|
4.77 @100
|
4.77 @200
|
21
|
|||||
|
3.BRITISH STANDARD BS4483
|
|
|
|
|
|
|
||||||
|
Ref No.
|
Std Unit
|
Longitudinal Wires(mm)
|
Cross Wire(mm)
|
Pitch of Wire(mm)
|
No. of sheet per ton
|
Mass(Kg/m2)
|
||||||
|
A393
|
Sheet
|
10
|
10
|
200@200
|
15
|
6.16
|
||||||
|
A252
|
Sheet
|
8
|
8
|
200@200
|
22
|
3.95
|
||||||
|
A193
|
Sheet
|
7
|
7
|
200@200
|
29
|
3.02
|
||||||
|
A142
|
Sheet
|
6
|
6
|
200@200
|
40
|
2.22
|
||||||
|
A98
|
Sheet
|
5
|
5
|
200@200
|
57
|
1.54
|
||||||
Product advantages
：
1.To advance the quality of engineering;
2. Improve the function of concrete anti-seismic and crack resistance;
3.Reduce the amount of steel usage;
4.High operating efficiency.
2. Improve the function of concrete anti-seismic and crack resistance;
3.Reduce the amount of steel usage;
4.High operating efficiency.
5.
The company can customize various sizes and specifications of the product,according to the drawing design and production.
The products sold in our store have their
own factories
in Hebei, Tianjin, Liaocheng and other places in China.
We are
always welcome
and will take care of
your airport pick-up, hotel and catering
if needed.
Welcome to
contact us
or leave your contact information to
get free samples
and
discounted prices.
We are always at your service.
