Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
atc cnc router
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
IGoldencnc
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3200*1840*1900mm
-
Power (kW):
-
9
-
Weight (KG):
-
1800
-
Working area:
-
1300*2500mm atc cnc wood machine
-
Spindle:
-
9KW atc cnc machine
-
Motor:
-
Servo Drive and Servo Motor
-
Guide rails:
-
Taiwan HIWIN
-
Transmission:
-
Z Taiwan TBI Ball Screw
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Usage:
-
Woodworking Signs Furniture Moulding Making
-
Keywords:
-
Cnc Wood Router Engraver
-
Working size:
-
1300*2500mm/2000*3000mm/2000*4000mm
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
atc cnc router
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
IGoldencnc
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3200*1840*1900mm
-
Power (kW):
-
9
-
Weight (KG):
-
1800
-
Working area:
-
1300*2500mm atc cnc wood machine
-
Spindle:
-
9KW atc cnc machine
-
Motor:
-
Servo Drive and Servo Motor
-
Guide rails:
-
Taiwan HIWIN
-
Transmission:
-
Z Taiwan TBI Ball Screw
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Usage:
-
Woodworking Signs Furniture Moulding Making
-
Keywords:
-
Cnc Wood Router Engraver
-
Working size:
-
1300*2500mm/2000*3000mm/2000*4000mm

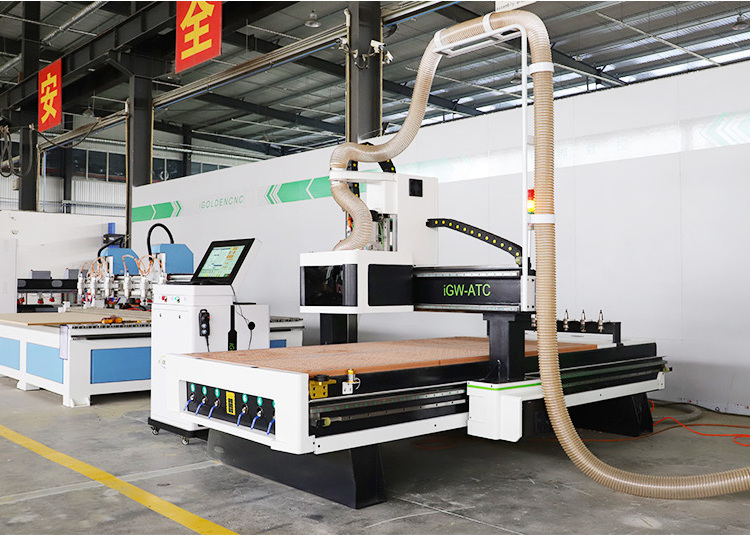

Product Description
A. Whole machine is welded with good structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
B. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.
C. servo system and reducer to make sure speed and stability. servo motors runs smoothly, no vibration phenomenon even in low speed and has overload ability,servo is more reliable and better than stepper.
D. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
E. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
F: Manual/automatic oil-injection system allows the machine maintenance mush easier.
B. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.
C. servo system and reducer to make sure speed and stability. servo motors runs smoothly, no vibration phenomenon even in low speed and has overload ability,servo is more reliable and better than stepper.
D. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
E. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
F: Manual/automatic oil-injection system allows the machine maintenance mush easier.
Specification
|
Model
|
iGW-ATC-1325
|
|
Working area
|
1300*2500*250mm
|
|
Spindle
|
HQD 9.0kw Air Cooling Spindle
|
|
Max. Running Speed
|
50000mm/min
|
|
Max. Working Speed
|
30000mm/min
|
|
Repositioning Accuracy
|
0.02mm
|
|
Machine Body
|
T-type Welding Structure
|
|
Gantry
|
Steel Structure
|
|
Worktable
|

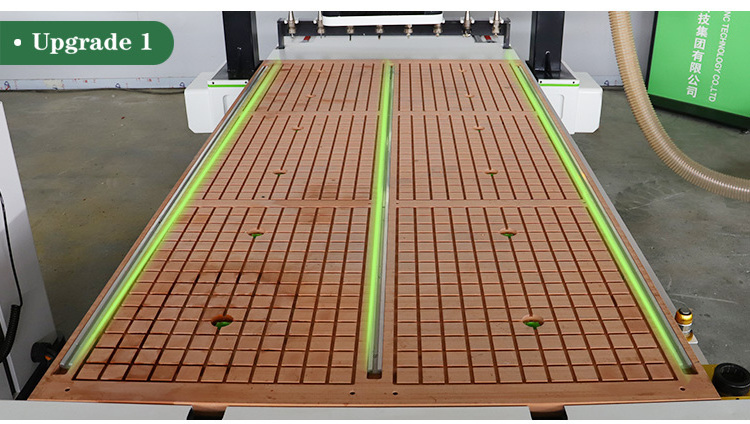

Vacuum Suction with T-slot Table
|
|
Guide Rails
|
Taiwan HIWIN
|
|
Ball Screw
|
Taiwan TBI
|
|
Driver
|
Servo Drive and Servo Motor
|
|
Reducer
|
Japan SHIMPO
|
|
Frequency Converter
|
Taiwan Fuling
|
|
Electrical Components
|
France SCHNEIDER
|
|
Control System
|
Taiwan LNC
|
|
Working Voltage
|
380V/50Hz
|
|
Protection
|
Grating protection system
|
|
Working Voltage
|
380V/50Hz
|

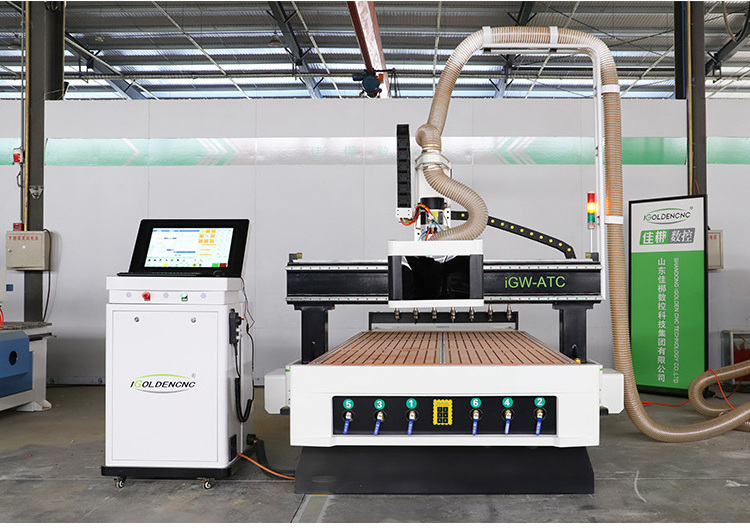

Details Images
Samples
cheap price 4*8ft cnc router woodworking machine 1325 atc cnc wood router for mdf cutting wooden furniture door making
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
