Multi-span greenhouse is widely used in the cultivation of tomato,vegetables, fruits and flowers. It can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting the natural disasters.Multi-Span Greenhouse,
cost-saving and convenient to use, is a kind of equipment for cultivation or breeding that is constructed simply. The greenhouse has great space-efficient performance and strong ventilation ability, also preventing the heat loss and the intrusion of cold air.
- Product Details
- {{item.text}}
Quick Details
-
Instruction for use:
-
As the installation we provided
-
Model Number:
-
multi span greenhouse
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dorisun
-
Product name:
-
introduction of multi-span plastic film greenhouse
-
greenhouse Structure:
-
hot galvanized steel with 275g/m2
-
Covering material:
-
150/200micron
-
Length:
-
20-200m,customized
-
Width:
-
8m-112m,customized
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Optional system:
-
Cooling system, irrigation system,heater,lights
-
Application:
-
Side and top ventilation
-
Advantage:
-
easy installed,economic
-
Ventilation:
-
Side and top ventilation
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
Dorisun
-
Instruction for use:
-
As the installation we provided
-
Model Number:
-
multi span greenhouse
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dorisun
-
Product name:
-
introduction of multi-span plastic film greenhouse
-
greenhouse Structure:
-
hot galvanized steel with 275g/m2
-
Covering material:
-
150/200micron
-
Length:
-
20-200m,customized
-
Width:
-
8m-112m,customized
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Optional system:
-
Cooling system, irrigation system,heater,lights
-
Application:
-
Side and top ventilation
-
Advantage:
-
easy installed,economic
-
Ventilation:
-
Side and top ventilation
Products Description

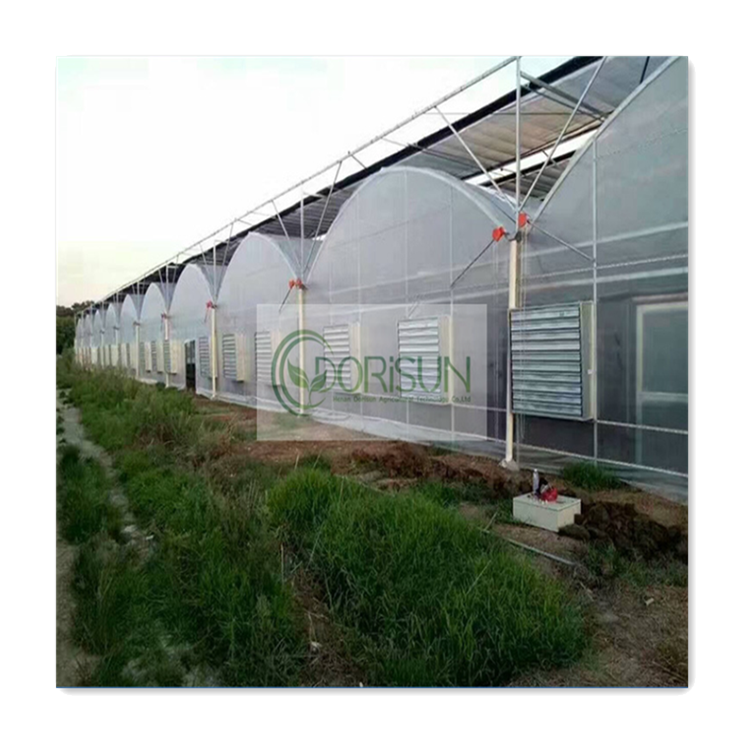

Multi Span Greenhouse
|
Specification of multi span greenhouse
|
|
|
|
Steel Structure
|
275g/m2 zinc coat Hot galvanized steel pipe
|
|
|
Cover material
|
PEP 150micon,200micron,customized
|
|
|
Length
|
20-200m,customized
|
|
|
Width
|
8m,16m,24m,32m,.......108m,customized
|
|
|
Gutter Height
|
2m,3m,4m,customized
|
|
|
Roof height
|
4.5m,5.5m,customized
|
|
|
Wind load
|
130km/h
|
|
|
Snow load
|
0.5KN/㎡
|
|
|
Temperature resistance
|
-40 ~ 120°C
|
|
|
Service
|
Complete greenhouse solution, overseas after-sales service
|
|
Product details
Cover film
1.120/150(standard)/200microm
2.Anti-drip,Anti-fog,Anti-UV
2.Global light transmission≥90%
3.UV transmission 300%-390%
4.Warranty:4-8 years.
2.Global light transmission≥90%
3.UV transmission 300%-390%
4.Warranty:4-8 years.
Greenhouse Steel Structure
1.Hot galvanized steel framework,with 275g/㎡ zinc coated
2.There is no bare welding points and connected by galvanized bolts, screws, and self-screws
3.Anti-rust for over 15 years
2.There is no bare welding points and connected by galvanized bolts, screws, and self-screws
3.Anti-rust for over 15 years
Two sides ventilation
1.Two sides ventilation by manual/electric roll up machine
2.Roof ventilation by electric motor
3.40mesh insect net will be offered for vents
2.Roof ventilation by electric motor
3.40mesh insect net will be offered for vents
Outside shade net
1.The shate rate have 65%,75%,85%,95% and so on.
2.There are two types: one is ribbon-like filament,another is round wire.
3.The function is blocking the strong light into the greenhouse, reduction of temperature.
2.There are two types: one is ribbon-like filament,another is round wire.
3.The function is blocking the strong light into the greenhouse, reduction of temperature.
4.The curtain wire is reliable, beautiful in appearance, high carrying capacity and long service life.
Other system
for greenhouse
Customers feedback
Our factory
Henan Dorisun Agricultural Technology Co,.Ltd
Henan Dorisun Agricultural Technology Co,.Ltd specializes in manufacturing all kinds of greenhouse and rolling bench system. Like blackout greenhouse,rolling bench,single span greenhouse,multi span greenhouse,cooling system,drip irriation, heaters and sales and technical services. Dorisun Agricultural is one of big factory in China, which were build over 10 years. We are making persistent efforts based on the demands from our clients, and promoting quality of the products and reducing the costs continuously, so as to supply products of high performances cost ratio.
Packaging and delivery
Why Choose Us
1. We will provide the best price and quality for you, your visit are warmly welcomed.
2. We have professional after-sales service personnel will send you installation instructions and installation videos according to your requirements, and 24 hours online service . If necessary, we can also send our engineers to your country to help you install the greenhouse, or arrange for your staff to come to the factory to learn how to install it.
3. We can customize the goods to your specifications.
2. We have professional after-sales service personnel will send you installation instructions and installation videos according to your requirements, and 24 hours online service . If necessary, we can also send our engineers to your country to help you install the greenhouse, or arrange for your staff to come to the factory to learn how to install it.
3. We can customize the goods to your specifications.
