Small machines below model 800 have dual feed ports
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
7.5-11
-
Dimension(L*W*H):
-
1200*850*900 cm
-
Weight (KG):
-
350
-
Name:
-
Wood Crusher Machine
-
Application:
-
Crush Wood Logs Making Sawdust
-
Raw material:
-
Straw Grass Wood Branches
-
Advantage:
-
Easy Operation
-
Capacity:
-
0.5-0.8 T/H
-
Color:
-
Customers' Requirement
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FINE
-
Marketing Type:
-
Hot Product 2023
-
Voltage:
-
220V/380V
-
Power:
-
7.5-11
-
Dimension(L*W*H):
-
1200*850*900 cm
-
Weight (KG):
-
350
-
Name:
-
Wood Crusher Machine
-
Application:
-
Crush Wood Logs Making Sawdust
-
Raw material:
-
Straw Grass Wood Branches
-
Advantage:
-
Easy Operation
-
Capacity:
-
0.5-0.8 T/H
-
Color:
-
Customers' Requirement
Products Description

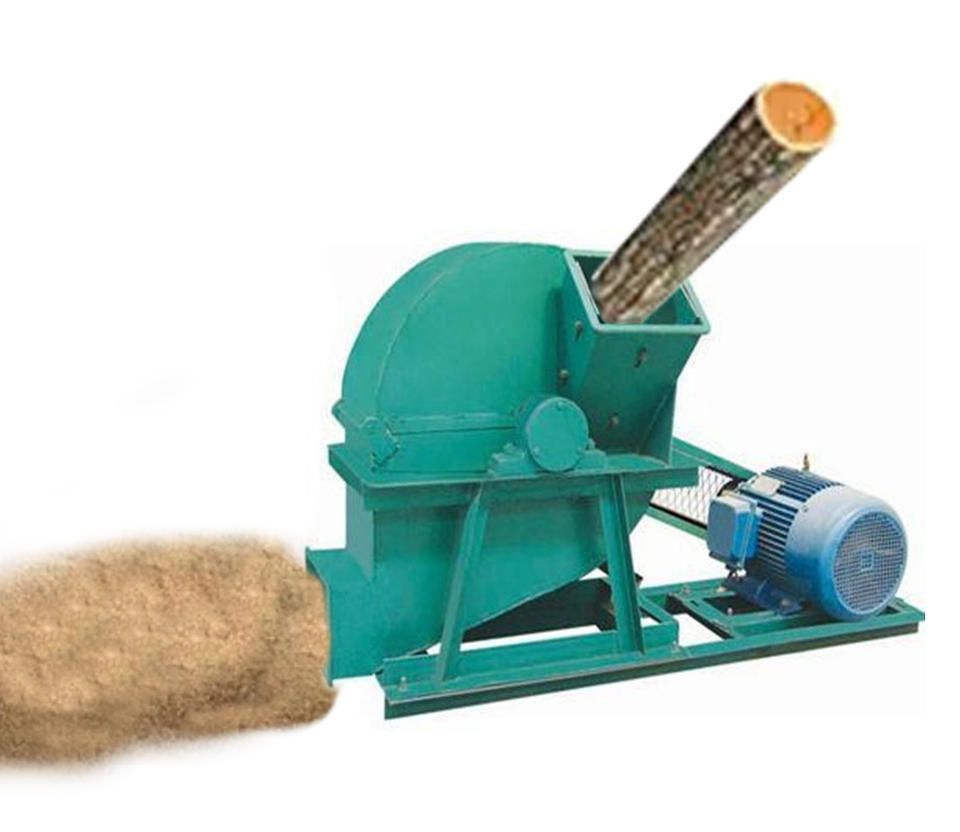

Wood crushers
The wood crusher is also known as sawdust machine, wood shredder and wood chipper, which can crush logs, sticks, branches, waste wood into sawdust and granular form.It
can achieve the integration of slicing and crushing.
the performance of the machine has been greatly improved compared to other similar products, making it an essential wood processing equipment for small and medium-sized enterprises and households inaquaculture.
|
Device ID
|
420
|
|
Capacity(T/H)
|
0.5-0.8
|
|
power(kw)
|
11
|
|
Bare weight (kg)
|
130
|
|
Blade quantity
|
4
|
|
Device ID
|
1000
|
|
Capacity(T/H)
|
3-4.5
|
|
power(kw)
|
75
|
|
Bare weight (kg)
|
800
|
|
Blade quantity
|
8
|
|
Device ID
|
1200
|
|
Capacity(T/H)
|
3-5.5
|
|
Diesel engine
(HP) |
120
|
|
Bare weight (kg)
|
1500
|
|
Blade quantity
|
/
|
Wood crushers are
applicable to industrial production such as paper making, edible fungi, barbecued charcoal, particleboard and sawdust board processing, and industries such as power plants, Paper mill, charcoal production lines.
Wood crusher has double feed port and single feed port two.
The double feeding port has an additional feeding port for crushing straw, branches, leaves.
Parameter Table of Full Series Square Mouth Crusher
|
Model
|
Power(kw)
|
Diesel engine
(HP)
|
Production capacity (T/H)
|
Bare weight (kg)
|
Feed opening size (m)
|
Overall dimension
(m)
|
|
420
|
11
|
15
|
0.5-0.8
|
130
|
0.17*0.17
|
1.5*0.85*0.95
|
|
500
|
18.5
|
25-32HP
|
0.8-2
|
210
|
0.2*0.24
|
1.52*0.73*0.98
|
|
600
|
22-30
|
32-40HP
|
1.2-2.5
|
320
|
0.2*0.24
|
1.51*0.82*1.02
|
|
700
|
37
|
45HP
|
1.5-3
|
450
|
0.25*0.29
|
1.66*1.05*1.64
|
|
800
|
37
|
45HP
|
1.5-4
|
450
|
0.3*0.33
|
1.6*1.1*1.5
|
|
900
|
55
|
75HP
|
2.5-4
|
650
|
0.35*0.38
|
1.66*1.15*1.55
|
|
1000
|
75
|
102-150
|
3-4.5
|
800
|
0.4*0.4
|
1.3*1.15*0.85
|
|
1200
|
90
|
120
|
3-5.5
|
1500
|
0.4*0.42
|
3.2*1.83*2.07
|
|
1500
|
110
|
150
|
3.5-7,5
|
2500
|
0.48*0.51
|
3*1.66*1.51
|
|
1800
|
132-160
|
180-220
|
7-10
|
3200
|
0.55*0.65
|
3.2*1.9*1.66
|
Main Features of small wood sawdust crusher
1.Compact structure and considerable layout;The size of the product can be adjusted.
2.Easy to install,operate and maintain;
3.Product good quality sawdust and the size can be adjusted in range 1-20mm by changing screen(sieve);
4.Can Install the wheels, Cyclone and make other customized designs for customers;
5.Can use electrical motor/diesel motor according to customer's needs;
6.Small size , less space occupying,high production efficiency,low investment,high profit return.
7. The blade adopts special technology, with high strength, good wear resistance, and long service life;
Use of sawdust:
1. Materials used for cultivating edible mushrooms and edible mushroom cultivation;
2. Production of biomass fuel particles/charcoal;
3. For civil heating combustion, industrial boilers replace coal, heavy oil, and natural gas;
4. Production of medium and small particle board and fiberboard;
Particle board, plywood, high-density board, sawdust board, medium density fiberboard, etc;
5. Production of mosquito repellent incense and particle manufacturing of animal feed;
6. Materials used for papermaking.
2. Production of biomass fuel particles/charcoal;
3. For civil heating combustion, industrial boilers replace coal, heavy oil, and natural gas;
4. Production of medium and small particle board and fiberboard;
Particle board, plywood, high-density board, sawdust board, medium density fiberboard, etc;
5. Production of mosquito repellent incense and particle manufacturing of animal feed;
6. Materials used for papermaking.
Details Images
This machine mainly consists of a blade, a crushing chamber, and a sieve.
The fineness of sawdust can be adjusted and adjusted by changing the sieve.
Picture of the finished particles
