Quick Details
-
Number of Row:
-
Single row
-
Bore Size:
-
12.692 - 12.7 mm
-
Brand Name:
-
RUNSTAR
-

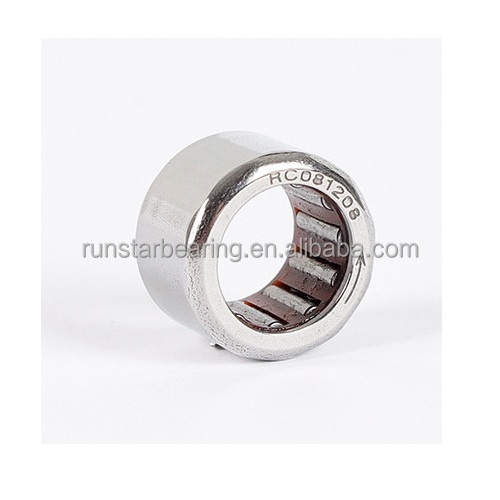

Model Number:
-
RC081208
-
Place of Origin:
-
ZHANGZHOU
-
Material:
-
chrome steel Gcr15(Stainless Steel available)
-
Application:
-
Fishing Reel
-
Certificate:
-
ISO 9001:2015,Reach and RoHs
-
Cage Material:
-
plastic spring or steel spring
-
weight3:
-
9.2 g
Quick Details
-
Applicable Industries:
-
Manufacturing Plant
-
Precision Rating:
-
P0
-
Seals Type:
-
OPEN
-
Number of Row:
-
Single row
-
Bore Size:
-
12.692 - 12.7 mm
-
Brand Name:
-
RUNSTAR
-
Model Number:
-
RC081208
-
Place of Origin:
-
ZHANGZHOU
-
Material:
-
chrome steel Gcr15(Stainless Steel available)
-
Application:
-
Fishing Reel
-
Certificate:
-
ISO 9001:2015,Reach and RoHs
-
Cage Material:
-
plastic spring or steel spring
-
weight3:
-
9.2 g
Needle roller bearings are roller bearings with cylindrical rollers that are thin and long relative to their diameter. Such rollers are called needle rollers. Although the cross-sectional area is small, roller bearings still have a high load-bearing capacity due to the fact that the entire surface of the roller carries the load, they are widely used in application with a limited radial installation dimensions.
HF and HF series are belong to one way clutch needle roller bearings,
they are widely
for transmission components that require backstop action,such as fitness equipment, currency counting machines, washing machines, fishing gear, dishwashers, SMT machines, textile machines, floor cleaners, and toy cars,
automobiles, motorcycles, mopeds, power tools, agricultural machinery, industrial sewing machines, construction machinery, etc.
Part No: | weight | Dimension | Torgue | ||
Fw | D | C | |||
g | mm | Nm | |||
RC040708 | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
RC040708-FS | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
RC061008 | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
RC061008-FC | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
RC101410 | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
RC101410-FC | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
RC121610 | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
RC121610-FS | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
RC162110 | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
RC162110-FC | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
RCB061014 | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
RCB061014-FS | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
RCB101416 | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
RCB101416-FS | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
RCB162117 | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
RCB162117-FS | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
One Way Clutch Needle Roller Bearing HF Series | weight | Dimensions (mm) | Rotation torque (Nm) | Limiting Speed rpm | Suitable Drawn Cup Bearings | |||||
Shaft Diameter (mm) | Plastic Springs | Steel Springs | g | Fw | D | C | Shaft Rotation | Outer Ring Rotation | ||
3 | HF0306KF | 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN | |
4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
6 | HF0608KF | 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 | |
HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | ||
8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
-- | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
-- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
-- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
-- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
HF2216 | 25 | 22 | 28 | 16 | 32 | 6500 | 6000 | |||
25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
HF273420 | 30 | 27 | 34 | 20 | 110 | |||||
HF404725 | 45 | 40 | 47 | 25 | 185 | |||||
HF485620 | 43 | 48 | 56 | 20 | 230 | |||||
HF586820 | 86 | 58 | 68 | 20 | 320 | |||||
30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
