Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SINTON
-
Dimension(L*W*H):
-
250x130mm
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
1 - 650 ℃
-
Core Components:
-
Resistance wire
-
Color:
-
White/black/yellow/pink
-
Size:
-
customized
-
Work temperature:
-
50~600deg.C
-
After Warranty Service:
-
Online support
-
Certification:
-
CE,ISO
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
Electric
-
Voltage:
-
12v/24v/48/110v/120v/220v/240v/380v/420v, customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SINTON
-
Dimension(L*W*H):
-
250x130mm
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
1 - 650 ℃
-
Core Components:
-
Resistance wire
-
Color:
-
White/black/yellow/pink
-
Size:
-
customized
-
Work temperature:
-
50~600deg.C
-
After Warranty Service:
-
Online support
-
Certification:
-
CE,ISO
Product Description

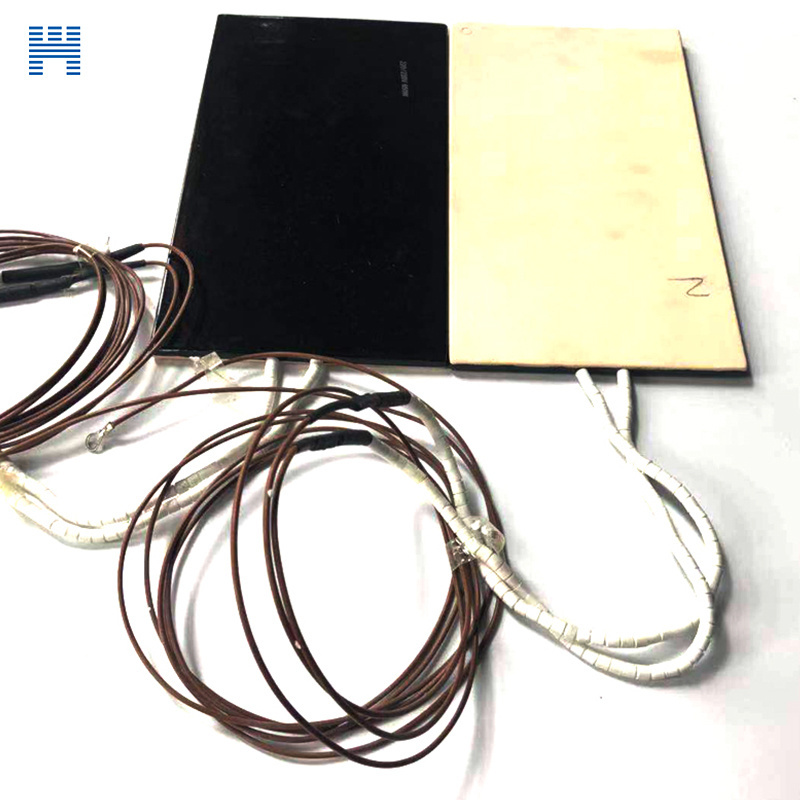

Far infrared ceramic heater for sauna heating
Ceramic Infrared Heater is efficient, robust heaters which provide longwave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing, and drying. Most plastics and many other materials absorb infrared wave best in this range, which makes the ceramic heater the most efficient infrared radiant emitter on the market.
Product photos
Product Paraments
Specifications
1,Nickel chrome resistance wire(NiCr20/80)
2,Color: White/Black
3, Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4,Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5,Useful wavelength range: 2-10 microns
6,Operating temperature is 300°C to 700°C (572°F - 1292°F)
7,Average Operating Life-Up to 20,000 hrs depending on conditions.
8. Recommended radiation distance from heater is 100 mm to 250 mm.
9,Supplied with 100mm ceramic beaded power leads
2,Color: White/Black
3, Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4,Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5,Useful wavelength range: 2-10 microns
6,Operating temperature is 300°C to 700°C (572°F - 1292°F)
7,Average Operating Life-Up to 20,000 hrs depending on conditions.
8. Recommended radiation distance from heater is 100 mm to 250 mm.
9,Supplied with 100mm ceramic beaded power leads
Application
Ceramic heater can be widely used in vacuum forming, dry food, medical treatment sanitation etc kinds of places of infrared dry
firing, solidify etc. It has perfect saving energy effect in electron, textile , light industry, chemical , medicine ,food
industry etc, has obvious social profit and economy profit.
firing, solidify etc. It has perfect saving energy effect in electron, textile , light industry, chemical , medicine ,food
industry etc, has obvious social profit and economy profit.
