Quick Details
-
Power:
-
24v/48v
-
Min. Lifting Height:
-
6m
-
Table Size:
-
2270*810mm-2270 * 1120mm
-
Overall Dimensions:
-
2480*810*1750mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Type:
-
Crawler Scissor Lift
-
Color:
-
Customized Color
-
Usage:
-
Aerial Work
-
Tire:
-
Solid Wheel
-
Drive mode:
-
Hydraulic Motor Pump System
-
Max. Working Height:
-
6-14m
-
Power source:
-
Battery Drive
-
Lifting motor:
-
2*48V/4kw
-
Material:
-
High Strength Manganese Steel
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kenancranes
-
Power:
-
24v/48v
-
Min. Lifting Height:
-
6m
-
Table Size:
-
2270*810mm-2270 * 1120mm
-
Overall Dimensions:
-
2480*810*1750mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Type:
-
Crawler Scissor Lift
-
Color:
-
Customized Color
-
Usage:
-
Aerial Work
-
Tire:
-
Solid Wheel
-
Drive mode:
-
Hydraulic Motor Pump System
-
Max. Working Height:
-
6-14m
-
Power source:
-
Battery Drive
-
Lifting motor:
-
2*48V/4kw
-
Material:
-
High Strength Manganese Steel
Product Description

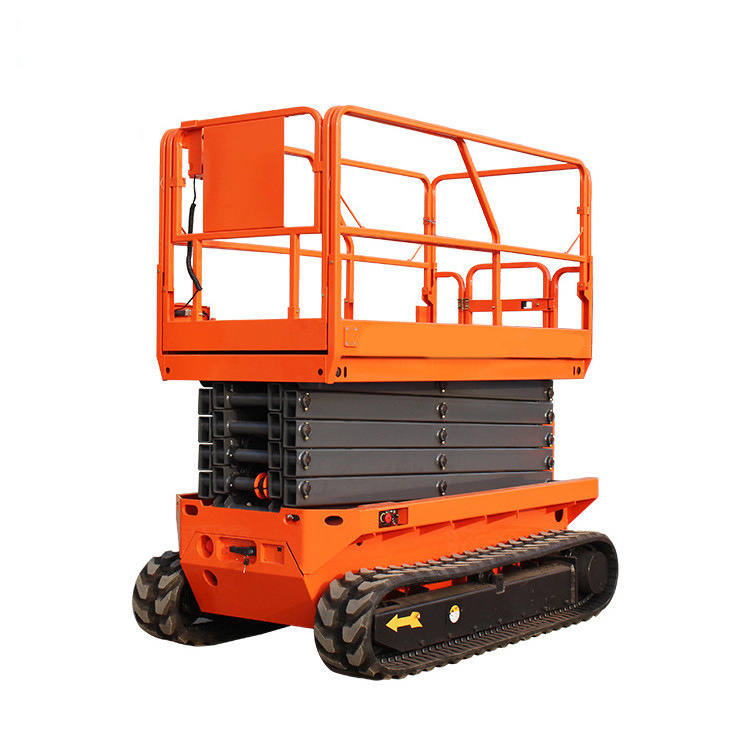

Self-propelled Track Crawler Scissor Lifts are electric drive, 24v or 48v optional. Our tracked scissor lifts are construction oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
First of all, the lifting platform in the lifting process of buffer force may be several times more than the weight, in order to be able to make the lifting platform stable lifting also ensure the safety of the track chassis so at the beginning of the design to the lift chassis above the hydraulic support system.
Main Features
• Rough-terrain capability • 6-14m working height• 320kg load capacity
• 24V DC or 48V power source with long working cycles
• Zero inside turning radius
• Derivable and functional at full height
• Outriggers (optional)
• Emergency stop at both platform and ground controls
• Proportional controls for drive functions
• Rough-terrain capability • 6-14m working height• 320kg load capacity
• 24V DC or 48V power source with long working cycles
• Zero inside turning radius
• Derivable and functional at full height
• Outriggers (optional)
• Emergency stop at both platform and ground controls
• Proportional controls for drive functions
Product Advantages
High strength guardrail increases the safety of high altitude operation.
Retractable table, increase the working range.
Distribution box, DC motor, valve block assembly, brand battery, charger.
Retractable table, increase the working range.
Distribution box, DC motor, valve block assembly, brand battery, charger.
Product Parameters
|
Model
|
Working Height
|
Platform Height
|
Platform Dimensions
|
Extended Platform Size
|
Working Loads
|
Total Weight
|
||||||
|
KCSL-04
|
6m
|
4m
|
1.29*0.7m
|
0.6m
|
230kg
|
1200kg
|
||||||
|
KCSL-06
|
8m
|
6m
|
1.669*0.745m
|
0.9m
|
230kg
|
1620kg
|
||||||
|
KCSL-08
|
10m
|
8m
|
2.271*1.11m
|
0.9m
|
320kg
|
3150kg
|
||||||
|
KCSL-10
|
12m
|
10m
|
2.271*1.11m
|
0.9m
|
320kg
|
3200kg
|
||||||
|
KCSL-12
|
14m
|
12m
|
2.271*1.11m
|
0.9m
|
320kg
|
3700kg
|
||||||
|
KCSL-G12
|
14m
|
12m
|
2.271*1.11m
|
0.9m
|
320kg
|
3870kg
|
||||||
|
Note:Support customization(Optional： Rubber Track/Steel Track, Hydraulic/Electric drive）
|
|
|
|
|
|
|
||||||
