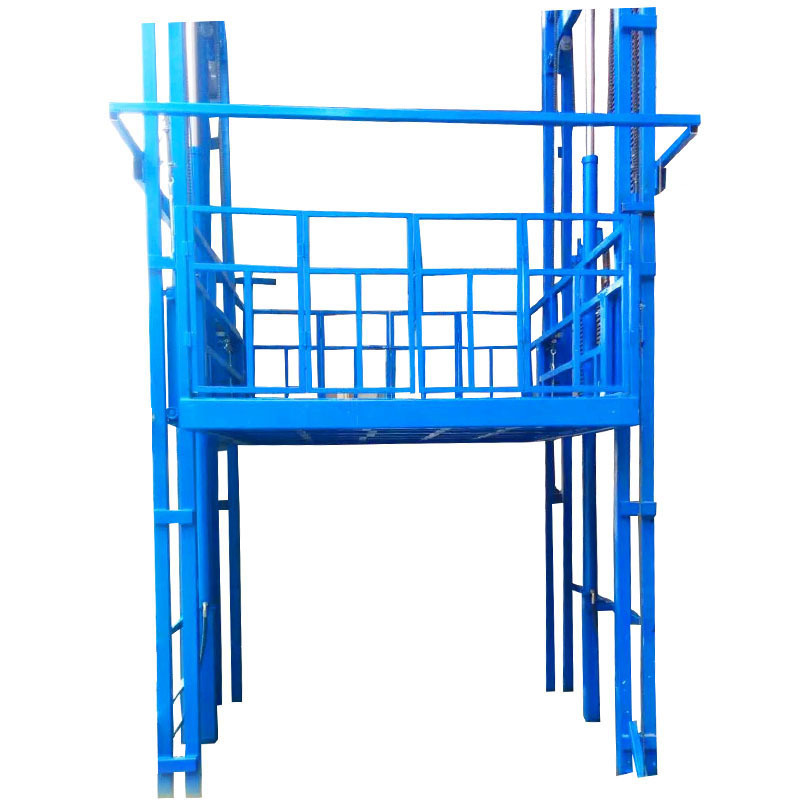

Hydraulic vertical goods elevator can move materials from one floor of factory, warehouse, factory, machinery, etc. to another floor It provides fast, efficient, convenient and safe access to sandwich furniture, balconies, basements and any flooring It can be installed in indoor and outdoor applications.
|
HTDG series
|
Load
|
Platform size
|
Lifting height
|
Non-work height
|
Dimension (m)
|
Pump station
|
|||||
|
HTDG 1-4.5
|
1T
|
2.1*1.5M
|
4.5M
|
800MM
|
2.1*1.5*0.80
|
3KW|380V
|
|||||
|
HTDG 2-5
|
2T
|
2.1*1.2M
|
5.0M
|
870MM
|
2.1*1.2*0.87
|
4KW|380V
|
|||||
|
HTDG3-2.4
|
3T
|
2.0*2.0M
|
2.4M
|
600MM
|
2.0*2.0*0.66
|
4KW|380V
|
|||||
|
HTDG 3-6.5
|
3T
|
2.2*1.9M
|
6.5M
|
1520MM
|
2.2*1.9*1.52
|
5.5KW|380V
|
|||||
|
HTDG 5-6.5
|
5T
|
2.2*1.6M
|
6.5M
|
1280MM
|
2.2*1.6*1.28
|
5.5KW|380V
|
|||||
|
HTDG **-N
|
Custom-made according to the requirement
|
|
|
|
|
|
|||||
Features
1) safety valve: prevent upward movement when the system pressure is too high 2) emergency manual valve: after the power is cut off, the car can be lowered to the nearest floor door. 3) manual pump: when the system fails, manually move the platform to the nearest floor door. 4) hose rupture valve: when the hydraulic system pipeline breaks, the automatic cut-off oil stops falling. 5) tank protection: when the fuel temperature in the tank exceeds the standard setting value, please stop using the elevator.
1. Established early
Jinan Honty lift was founded in 2005, which is one of the main manufacturer of hydraulic equipments
2. Mature technology
we took the development on the technology of hydraulic lifting table as well as elevator,We have excellent equipment,advanced technology, perfect detection method and skilled technicians
3. Good reputation
we are also given the honor of “Company with good credit” by the Chinese Government. and
now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China as well
4. Many kinds of products
we have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
5. CE&ISO
Our products approved -CE&ISO,
6. Exported to many countries
Products are exported to Europe ,North America ,South America, Mid-east, Southeast Asia ,Easten Asia,etc.and got good reputation.
7.OEM service
