High frequency electron tube
Quick Details
-
Model Number:
-
3CX20000H3
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Beijing Jenerator
-
Output power:
-
64kW
-
Product Name:
-
High frequency electron tube

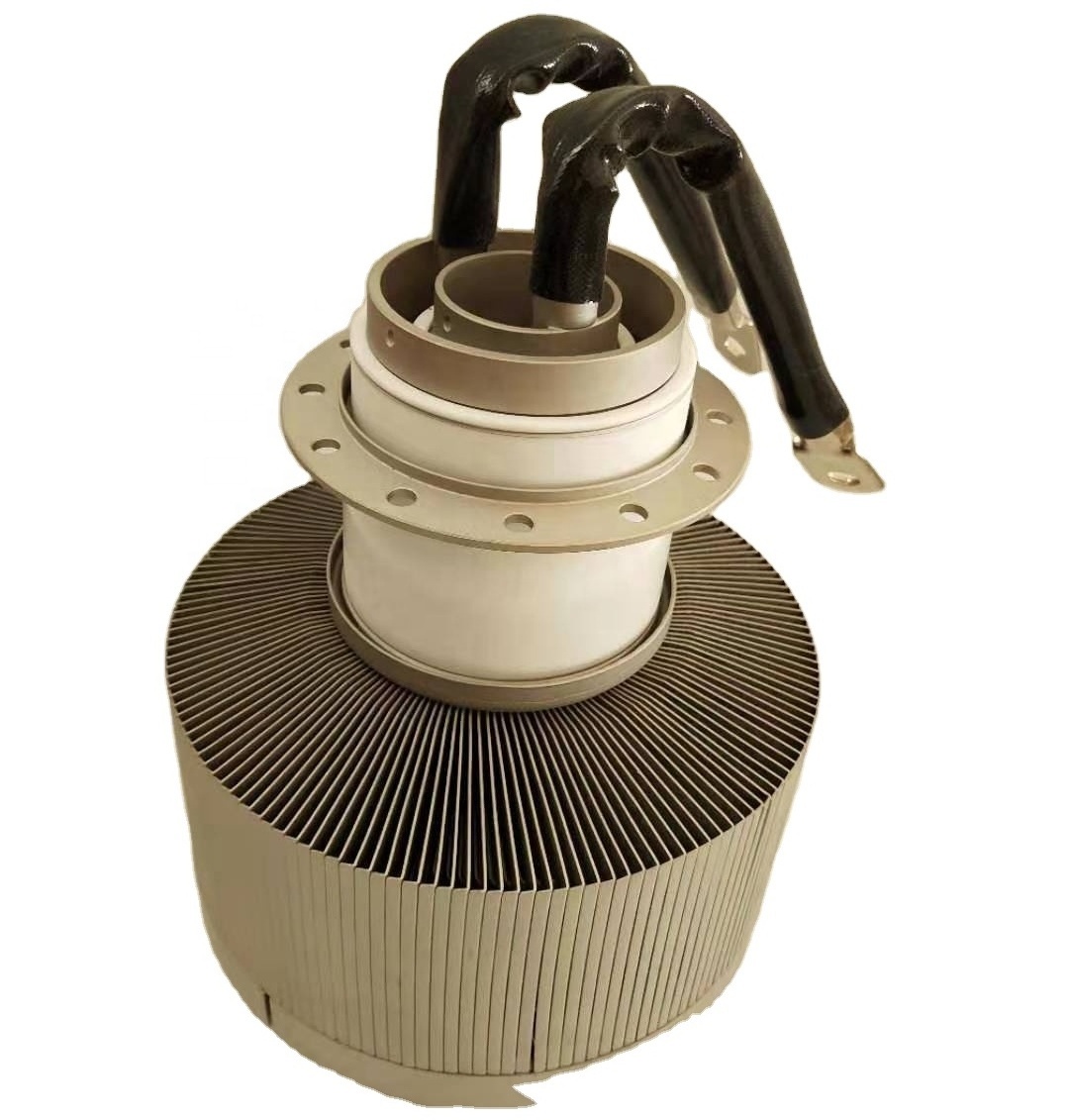

3CX20000H3 / 3CX20, 000H3 Vacuum tube is a Forced Air cooled, medium mu triode used in Industrial RF heating applications. The output power will up to 64KW.
|
Filament voltage |
10 ± 0.5 V |
|
|
Filament current |
160 ±8 A |
|
|
Amplification factor |
20 |
|
|
Interelectrode capacitance |
Input |
70 pF |
|
Output |
2.3 pF |
|
|
Feedback |
43 pF |
|
|
Max frequency |
90 MHZ |
|
|
Operating position Vertical |
anode up or down |
|
|
Cooling |
Forced air |
|
|
Base |
Flexible leads |
|
|
Height max. (Excluding filament lead) 269.2 mm |
48.3 cm |
|
|
Diameter max |
203.2 mm |
|
|
Weight |
9.1 kg |
|
MAXIMUM RATING ABSOLUTE
|
Anode voltage |
12 kV |
|
Anode current |
8A |
|
Grid voltage |
-2 kV |
|
Grid current |
1.5 A |
|
Anode dissipation power |
20 kW |
|
0.75 kW |
