Quick Details
-
Voltage:
-
220V/380V/440V
-
Weight (T):
-
0.98 T
-
Model Number:
-
HPB-790
-
Motor Power (kw):
-
50 kw
-
Applicable Industries:
-
Other
-
Marketing Type:
-
New Product 2023
-
Function:
-
Pressing
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
220V/380V/440V
-
Weight (T):
-
0.98 T
-
Model Number:
-
HPB-790
-
Motor Power (kw):
-
50 kw
-
Applicable Industries:
-
Other
-
Marketing Type:
-
New Product 2023
-
Function:
-
Pressing
Recommend Products
Products Description
Introduction

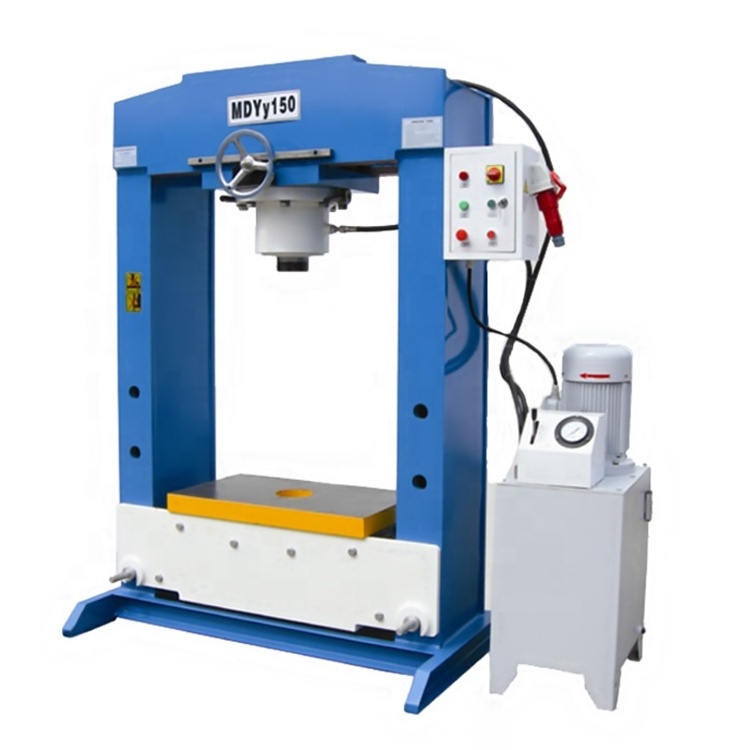

The machine adopts full steel structure of the gantry frame, the vibration aging treatment makes the mechanical deformation small, the frame design through the finite element design, with high rigidity, high precision. Gantry type hydraulic press table can move up and down, greatly expand the machine opening and closing height, more convenient to use.
It is composed of master cylinder, hydraulic power system and electric sold-out system.
The table is welded with high quality steel plate to ensure reliability and durability.
Specifcation
|
Model
|
Nominal Pressure
(KN)
|
Pressure
(MPa)
|
Piston travel/
Table travel
(mm)
|
Table size
(mm) |
Dimension
(cm) |
Hydraulic station
(cm) |
N.W/G.W
(kg) |
|
HPB-580
|
300
|
25
|
300/270
|
300*400
|
116*55*160
|
|
420/650
|
|
HPB-790
|
500
|
25
|
220/405
|
400*800
|
150*65*195
|
|
980/1100
|
|
HPB-1010
|
1000
|
30
|
250/405
|
460*980
|
184*75*225
|
73*63*96
|
1220/1420
|
|
HPB-1500
|
1500
|
42
|
250/405
|
460*980
|
184*75*225
|
73*63*96
|
1350/1750
|
|
HPB-2000
|
2000
|
40
|
300/405
|
500*1000
|
194*95*235
|
90*80*106
|
2200/2400
|
