Quick Details
-
Applications:
-
Fire fighting pump
-
Type:
-
Extinguish or irrigation
-
Materials:
-
Aluminum
-
Feature:
-
Reliable, safe, easy operation
-
Functions:
-
Firefighting equipment
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
OTTO /OEM
-
Model Number:
-
JBQ5.5/12
-
Applications:
-
Fire fighting pump
-
Type:
-
Extinguish or irrigation
-
Materials:
-
Aluminum
-
Feature:
-
Reliable, safe, easy operation
-
Functions:
-
Firefighting equipment

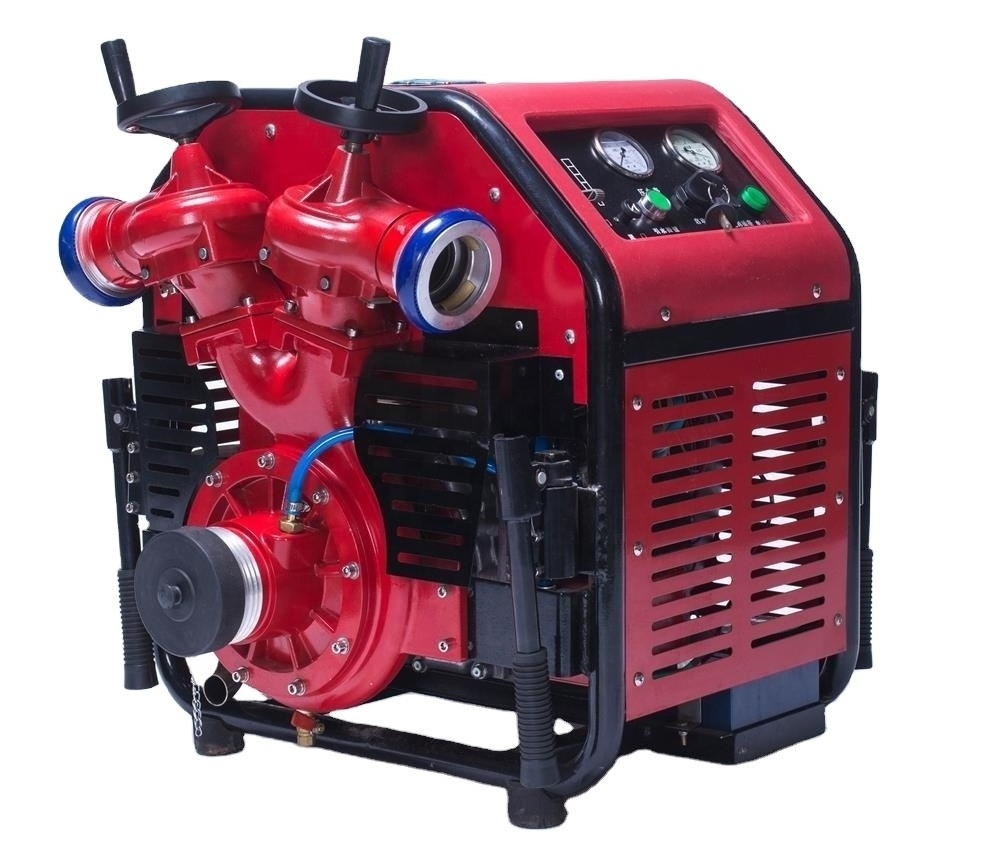

Product Description
Specification
|
Type
|
Twin-cylinder air-cooled four-stroke
|
|
Bore * Stroke
|
75.5*70.0mm
|
|
Rated power
|
13KW (17.5ps)
|
|
Rated speed
|
3800/rmin
|
|
Power Source Model
|
GX690
|
|
Exhaust volume
|
688ml
|
|
Start mode
|
hand (electric) start
|
|
Start performance
|
11s
|
|
Pump Type
|
Single-stage single-suction centrifugal pump
|
|
Rated flow
|
12L/s
|
|
Rated pressure
|
0.55MPa
|
|
Suction
|
7m
|
|
Suction distance 3m water spray
|
1200L/5.5kg/cm2
|
|
Water diversion device Type
|
Suction type electric vacuum pump
|
|
Motor speed
|
3000r/min
|
|
Current
|
12V
|
|
Power
|
230W
|
|
Maximum vacuum
|
-0.090MPa
|
|
Motor speed
|
3000r/min
|
|
Current
|
12V
|
|
Power
|
230W
|
|
Maximum vacuum
|
-0.090MPa
|
|
7m water diversion time
|
≤ 35s
|
|
Dimensions
|
210×100×260mm
|
|
Weight
|
≤6kg
|
|
Overall appearance size
|
700×640×680mm
|
|
Total weight
|
≤100kg
|
|
Packing size
|
820×840×740mm
|
