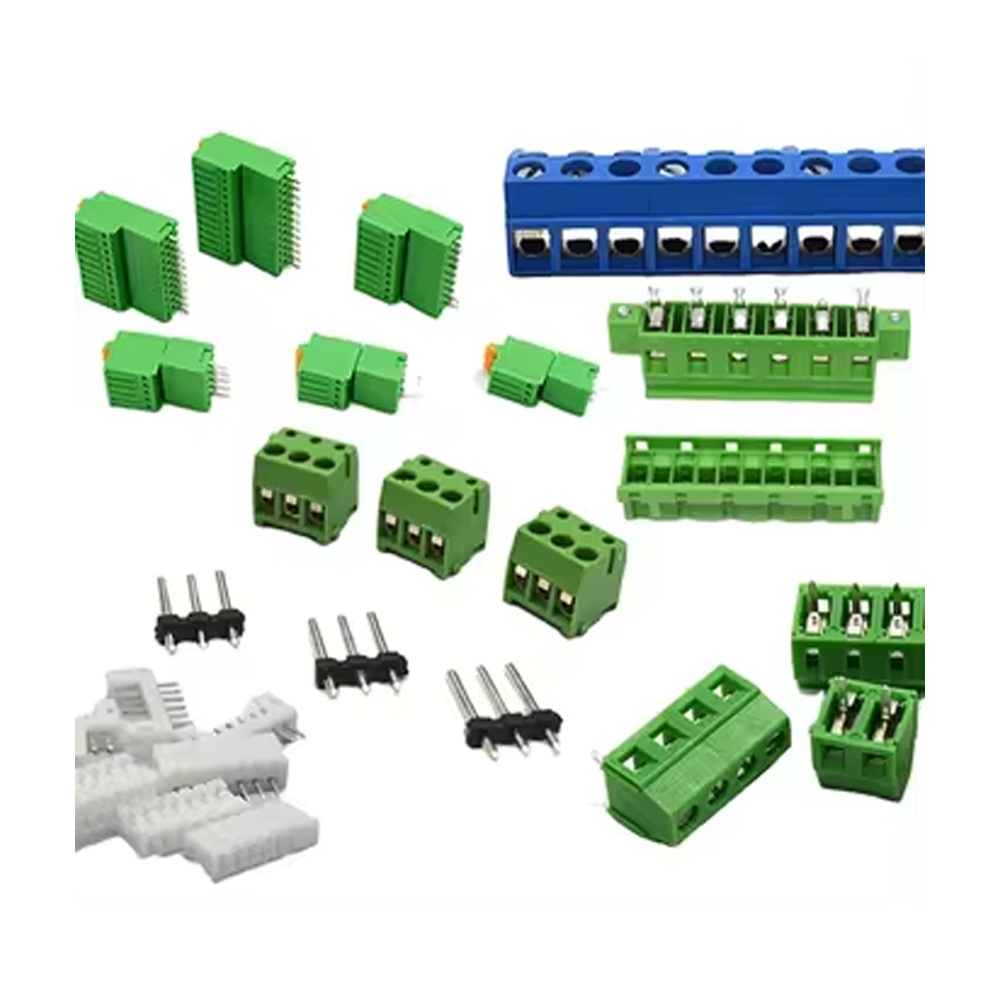

Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks

Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
PCB Terminal Block
Flammability rating:
UL94-V0
Insulating material:
PA
Mounting type:
Wave soldering
color:
Green
Contact material:
Cu alloy
Application:
Wire Connecting
Connection method:
Screw connection with tension sleeve
Screw:
M2,steel,CrZn Plated
Pin layout:
Linear pinning

Quick Details

Place of Origin:
Guangdong
Brand Name:
SZOMK
Model Number:
PCB Terminal Block
Product name:
PCB Terminal Block
Flammability rating:
UL94-V0
Insulating material:
PA
Mounting type:
Wave soldering
color:
Green
Contact material:
Cu alloy
Application:
Wire Connecting
Connection method:
Screw connection with tension sleeve
Screw:
M2,steel,CrZn Plated
Pin layout:
Linear pinning
Manufacturing Green PCB Terminal Blocks Mount Component Printed Circuit Board PC Din Rail Screw Connectors PCB Terminal Blocks
Product Description
Title goes here.
2ERJK-3.5/3.81Pitch:3.5/3.81mm(138/.150")

Poles:2P-24P
The following sheet is the parameters of this model, if you need the parameters of other models, please feel free to Contact SZOMK
※Electrical
IEC/DIN VDE Techinical data IEC/DIN VDE
Rated current
7A
Rated ins ulation voltage with pollution degree2
250V
Surge voltage category/pollution degree
Ⅲ/3Ⅲ/2ㅍ/2
Rated ins ulation voltage
160V250V320V
Rated surge voltage
2.5kV2.5kV2.5kV
UL/CUL(Approval data) Use Group
BCD
Rated voltage
300V-125V
Rated current
8A-8A
Connection capacity
-
Solid/stranded
0.5-1.5mm²/0.5-1.5mm²/28-16AWG
Stranded with ferrule withoutplastic sleeve
0.25-1.5mm²
Stranded with ferrule with plasticsleeve
0.25-0.5mm²
Multiple connection(2 conductorswith same cross section)
-
Solid/stranded
0.08-0.5mm²/0.08-0.75mm²
Stranded with ferrule withoutplastic sleeve
0.25-0.34mm²
Stranded with TWIN ferrule withplastic sleeve
0.5-0.5mm²
※Mechanical
Torque
0.2N. m(1.7Lb-ln)
Ambient temperature
-40℃-+105℃
Stripping length
7mm
※Dimension
Pitch
3.5mm(.138")3.81mm(.150")
poles
2P-24P
※Material
insulation material/Group
PA66/I. UL94V-0
Screw
M2, steel,Cr³⁺Zn Plated
Contact
Phosphor bronze, Ni Plated
Cage
Copper alloy, Ni plated
