1. It is mainly used for harvesting Root crops or fruit like potatoes, carrots, garlic etc.
2. With no grass blocking or clod leakage during working.
3. The anti-grass winding function of the machine enables harvesting with seedlings without any blocking.
4. The residual agricultural film can be extracted so as not to affect the next crop's growth
5.The working principle is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate through vibrationsieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.
- Product Details
- {{item.text}}
Quick Details
-
Row Distance(mm):
-
500 - 800 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1500*950*920mm
-
Weight:
-
100 KG
Quick Details
-
Number of Rows:
-
1
-
Working Width(mm):
-
800 mm
-
Tractor Power(HP):
-
10 - 18 HP
-
Row Distance(mm):
-
500 - 800 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1500*950*920mm
-
Weight:
-
100 KG
|
Specification model
|
size
|
weight
|
Connection method
|
Supporting power
|
Harvest depth
|
Work efficiency
|
|||||
|
DS-50 harvester
|
900*600*600mm
|
85kg
|
Gear box connection
|
10-18HP
|
20-30cm
|
1mu/h
|
|||||
|
DS-60 harvester
|
900*700*600mm
|
90kg
|
Gear box connection
|
10-18HP
|
20-30cm
|
2mu/h
|
|||||
|
DS-70 harvester
|
900*800*600mm
|
95kg
|
Gear box connection
|
12-18HP
|
20-30cm
|
2mu/h
|
|||||
|
DS-80 harvester
|
900*900*600mm
|
100kg
|
Gear box connection
|
15-18HP
|
20-30cm
|
3mu/h
|
|||||
|
DS-90 harvester
|
900*1100*600mm
|
105kg
|
Gear box connection
|
18-20HP
|
20-30cm
|
3mu/h
|
|||||
|
Applicable crops
|
Can harvest potatoes, sweet potatoes, peanuts, garlic, onions, taro, etc.
|
|
|
|
|
|
|||||

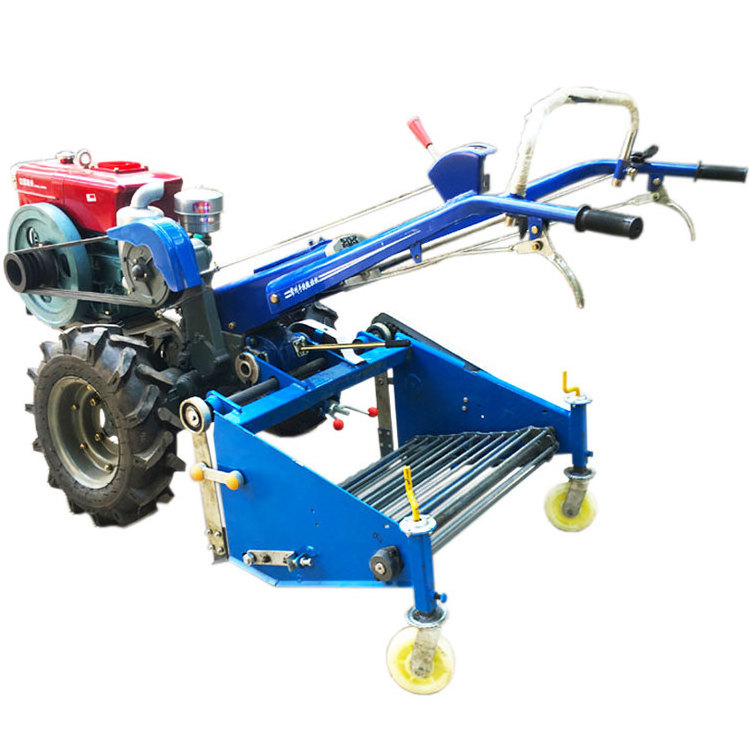

mini potato harvester
Production and after sales services
1. We can customize the products color according to customers real needs;
2. We can customize the nameplate for customers according to their request;
3. After sales, we will provide special technicians for solving customers questions.
COOPERATING WITH US, BE ASSURED!!!
