Quick Details
-
Model Number:
-
SPW (SPGW MCPS) PISTON SEAL
-
Type:
-
PISTON SEAL
-
Color:
-
customized
-
MOQ:
-
10 PCS
-
Brand:
-
SEYO
-
MATERIAL:
-
PTFE+NBR+NY
-
OEM:
-
Accpetable
-
Package:
-
PE+Carton
-
Sample:
-
Freely
-
Packing:
-
PE Bag+Carton
Quick Details
-
Size:
-
Standard size
-
Place of Origin:
-
Guangdong, China, CHINA
-
Brand Name:
-
SEYO
-
Model Number:
-
SPW (SPGW MCPS) PISTON SEAL
-
Type:
-
PISTON SEAL
-
Color:
-
customized
-
MOQ:
-
10 PCS
-
Brand:
-
SEYO
-
MATERIAL:
-
PTFE+NBR+NY
-
OEM:
-
Accpetable
-
Package:
-
PE+Carton
-
Sample:
-
Freely
-
Packing:
-
PE Bag+Carton
Seyo Seals Tech (guangzhou) Co., Ltd.
Products Description

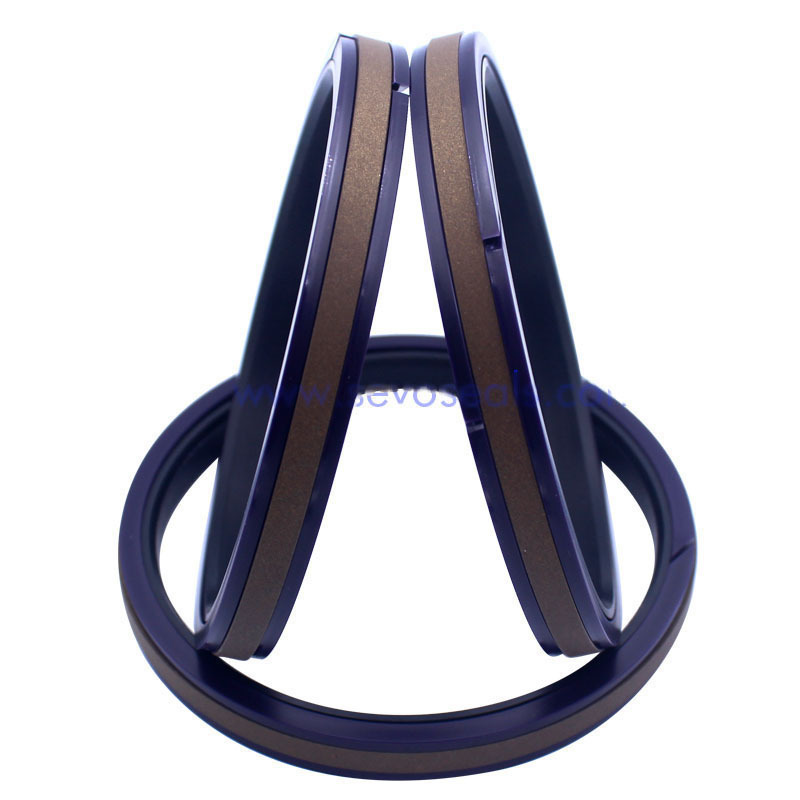

SPW(SPGW)PISTON SEAL
SPW is a compact double acting piston seal assembly designed for one piece pistons and is suitable for low to high pressure, medium to heavy duty applications.
The assembly comprises as standard a self lubricating wear resistant bronze filled PTFE cap ring, which is loaded by a NBR energiser.
Thermoplastic splite anti-extrusion rings support the seal on both sides and prevent contamination of the energiser and cap ring.
SPW piston seal is designed to be used in a variety of equipment and is particularly suited to use in earthmoving and other off-highway equipment.
The assembly comprises as standard a self lubricating wear resistant bronze filled PTFE cap ring, which is loaded by a NBR energiser.
Thermoplastic splite anti-extrusion rings support the seal on both sides and prevent contamination of the energiser and cap ring.
SPW piston seal is designed to be used in a variety of equipment and is particularly suited to use in earthmoving and other off-highway equipment.
|
Material
|
Power-transmission fluid
|
Temperature
|
Speed
|
Pressure
|
Max. Gap F
|
|
PTFE+bronze
|
Mineral Oil
|
-40 – +110
|
≦ 1.5 m/s
|
160 bar
|
F ≦ 1.0 mm
|
|
|
|
|
|
250 bar
|
F ≦ 0.8 mm
|
|
|
|
|
|
400 abr
|
F ≦ 0.6 mm
|
|
|
|
|
|
500 bar
|
F ≦ 0.4 mm
|
SIZE
|
Product
|
Description
|
Bore
|
Groove Diameter
|
C Height
|
D Groove Width
|
|
SPW-50
|
SPW-50-36-8.5-PTFE-NBR-POM-Piston Seals
|
50
|
36
|
8.5
|
9
|
|
SPW-55
|
SPW-55-41-8.5-PTFE-NBR-POM-Piston Seals
|
55
|
41
|
8.5
|
9
|
|
SPW-60
|
SPW-60-46-8.5-PTFE-NBR-POM-Piston Seals
|
60
|
46
|
8.5
|
9
|
|
SPW-63
|
SPW-63-48-10.5-PTFE-NBR-POM-Piston Seals
|
63
|
49
|
8.5
|
9
|
|
SPW-65
|
SPW-65-50-10.5-PTFE-NBR-POM-Piston Seals
|
65
|
50
|
10.5
|
11
|
|
SPW-70
|
SPW-70-55-10.5-PTFE-NBR-POM-Piston Seals
|
70
|
55
|
10.5
|
11
|
|
SPW-75
|
SPW-75-60-10.5-PTFE-NBR-POM-Piston Seals
|
75
|
60
|
10.5
|
11
|
|
SPW-80
|
SPW-80-65-10.5-PTFE-NBR-POM-Piston Seals
|
80
|
65
|
10.5
|
11
|
|
SPW-80A
|
SPW-80-65-11.5-PTFE-NBR-POM-Piston Seals
|
80
|
65
|
11.5
|
12
|
|
SPW-85
|
SPW-85-70-10.5-PTFE-NBR-POM-Piston Seals
|
85
|
70
|
10.5
|
11
|
|
SPW-90
|
SPW-90-75-10.5-PTFE-NBR-POM-Piston Seals
|
90
|
75
|
10.5
|
11
|
|
SPW-95
|
SPW-95-80-10.5-PTFE-NBR-POM-Piston Seals
|
95
|
80
|
10.5
|
11
|
|
SPW-100
|
SPW-100-85-12-PTFE-NBR-POM-Piston Seals
|
100
|
85
|
12
|
12.5
|
|
SPW-105
|
SPW-105-90-12-PTFE-NBR-POM-Piston Seals
|
105
|
90
|
12
|
12.5
|
|
SPW-110
|
SPW-110-95-12-PTFE-NBR-POM-Piston Seals
|
110
|
95
|
12
|
12.5
|
|
SPW-115
|
SPW-115-100-12-PTFE-NBR-POM-Piston Seals
|
115
|
100
|
12
|
12.5
|
|
SPW-120
|
SPW-120-105-12-PTFE-NBR-POM-Piston Seals
|
120
|
105
|
12
|
12.5
|
|
SPW-125
|
SPW-125-102-15.5-PTFE-NBR-POM-Piston Seals
|
125
|
102
|
15.5
|
16
|
|
SPW-130
|
SPW-130-107-15.5-PTFE-NBR-POM-Piston Seals
|
130
|
107
|
15.5
|
16
|
|
SPW-135
|
SPW-135-112-15.5-PTFE-NBR-POM-Piston Seals
|
135
|
112
|
15.5
|
16
|
|
SPW-140
|
SPW-140-117-15.5-PTFE-NBR-POM-Piston Seals
|
140
|
117
|
15.5
|
16
|
|
SPW-145
|
SPW-145-122-15.5-PTFE-NBR-POM-Piston Seals
|
145
|
122
|
15.5
|
16
|
|
SPW-150
|
SPW-150-127-15.5-PTFE-NBR-POM-Piston Seals
|
150
|
127
|
15.5
|
16
|
|
SPW-155
|
SPW-155-132-15.5-PTFE-NBR-POM-Piston Seals
|
155
|
132
|
15.5
|
16
|
|
SPW-160
|
SPW-160-137-15.5-PTFE-NBR-POM-Piston Seals
|
160
|
137
|
15.5
|
16
|
|
SPW-165
|
SPW-165-142-15.5-PTFE-NBR-POM-Piston Seals
|
165
|
142
|
15.5
|
16
|
|
SPW-170
|
SPW-170-147-15.5-PTFE-NBR-POM-Piston Seals
|
170
|
147
|
15.5
|
16
|
|
SPW-180
|
SPW-180-157-15.5-PTFE-NBR-POM-Piston Seals
|
180
|
157
|
15.5
|
16
|
|
SPW-185
|
SPW-185-162-15.5-PTFE-NBR-POM-Piston Seals
|
185
|
162
|
15.5
|
16
|
|
SPW-190
|
SPW-190-167-15.5-PTFE-NBR-POM-Piston Seals
|
190
|
167
|
15.5
|
16
|
|
SPW-195
|
SPW-195-172-15.5-PTFE-NBR-POM-Piston Seals
|
195
|
172
|
15.5
|
16
|
|
SPW-200
|
SPW-200-177-15.5-PTFE-NBR-POM-Piston Seals
|
200
|
177
|
15.5
|
16
|
|
SPW-205
|
SPW-205-182-15.5-PTFE-NBR-POM-Piston Seals
|
205
|
182
|
15.5
|
16
|
|
SPW-210
|
SPW-210-187-15.5-PTFE-NBR-POM-Piston Seals
|
210
|
187
|
15.5
|
16
|
|
SPW-215
|
SPW-215-192-15.5-PTFE-NBR-POM-Piston Seals
|
215
|
192
|
15.5
|
16
|
|
SPW-220
|
SPW-220-197-15.5-PTFE-NBR-POM-Piston Seals
|
220
|
197
|
15.5
|
16
|
|
SPW-225
|
SPW-225-202-15.5-PTFE-NBR-POM-Piston Seals
|
225
|
202
|
15.5
|
16
|
|
SPW-230
|
SPW-230-207-15.5-PTFE-NBR-POM-Piston Seals
|
230
|
207
|
15.5
|
16
|
|
SPW-240
|
SPW-240-217-15.5-PTFE-NBR-POM-Piston Seals
|
240
|
217
|
15.5
|
16
|
|
SPW-250
|
SPW-250-222-17-PTFE-NBR-POM-Piston Seals
|
250
|
222
|
17
|
17.5
|
|
SPW-260
|
SPW-260-232-17-PTFE-NBR-POM-Piston Seals
|
260
|
232
|
17
|
17.5
|
|
SPW-270
|
SPW-270-242-17-PTFE-NBR-POM-Piston Seals
|
270
|
242
|
17
|
17.5
|
|
SPW-280
|
SPW-280-252-17-PTFE-NBR-POM-Piston Seals
|
280
|
252
|
17
|
17.5
|
|
SPW-290
|
SPW-290-262-17-PTFE-NBR-POM-Piston Seals
|
290
|
262
|
17
|
17.5
|
|
SPW-300
|
SPW-300-272-17-PTFE-NBR-POM-Piston Seals
|
300
|
272
|
17
|
17.5
|
|
SPW-310
|
SPW-310-282-17-PTFE-NBR-POM-Piston Seals
|
310
|
282
|
17
|
17.5
|
|
SPW-320
|
SPW-320-292-17-PTFE-NBR-POM-Piston Seals
|
320
|
292
|
17
|
17.5
|
|
SPW-330
|
SPW-330-302-17-PTFE-NBR-POM-Piston Seals
|
330
|
302
|
17
|
17.5
|
|
SPW-340
|
SPW-340-312-17-PTFE-NBR-POM-Piston Seals
|
340
|
312
|
17
|
17.5
|
|
SPW-350
|
SPW-350-322-17-PTFE-NBR-POM-Piston Seals
|
350
|
322
|
17
|
17.5
|
|
SPW-110A
|
SPW-110-93-10.5-PTFE-NBR-POM-Piston Seals
|
110
|
93
|
10.5
|
11
|
|
SPW-120A
|
SPW-120-100-15.5-PTFE-NBR-POM-Piston Seals
|
120
|
100
|
15.5
|
16
|
|
SPW-130A
|
SPW-130-115-12-PTFE-NBR-POM-Piston Seals
|
130
|
115
|
12
|
12.5
|
|
SPW-160A
|
SPW-160-145-12-PTFE-NBR-POM-Piston Seals
|
160
|
145
|
12
|
12.5
|
|
SPW-190A
|
SPW-190-175-12-PTFE-NBR-POM-Piston Seals
|
190
|
175
|
12
|
12.5
|
