Quick Details
-
Application:
-
Fabric Cutting, Use After Quilting Machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Seanoel
-
Power:
-
2KW
-
Dimension(L*W*H):
-
3400*3000*1780MM
-
Weight:
-
800 KG
-
Name:
-
Fabric Cutting Machine
-
Suitable Material:
-
Quilted Fabric,Mattress,Leather,Foam
-
Cutting Style:
-
Edge Knife,Cross Knife,Slitting
-
Control System:
-
PLC
-
Cutting Thickness:
-
1-80MM
-
Feather:
-
Conveyor Belt Panel
-
Slitting Knife:
-
1-9PCS
-
Brand:
-
Seanoel
-
Experience:
-
Manufacturer Since 2003
Quick Details
-
Production Capacity:
-
7-10M/MIN
-
Voltage:
-
380V
-
Marketing Type:
-
New Product 2022
-
Application:
-
Fabric Cutting, Use After Quilting Machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Seanoel
-
Power:
-
2KW
-
Dimension(L*W*H):
-
3400*3000*1780MM
-
Weight:
-
800 KG
-
Name:
-
Fabric Cutting Machine
-
Suitable Material:
-
Quilted Fabric,Mattress,Leather,Foam
-
Cutting Style:
-
Edge Knife,Cross Knife,Slitting
-
Control System:
-
PLC
-
Cutting Thickness:
-
1-80MM
-
Feather:
-
Conveyor Belt Panel
-
Slitting Knife:
-
1-9PCS
-
Brand:
-
Seanoel
-
Experience:
-
Manufacturer Since 2003

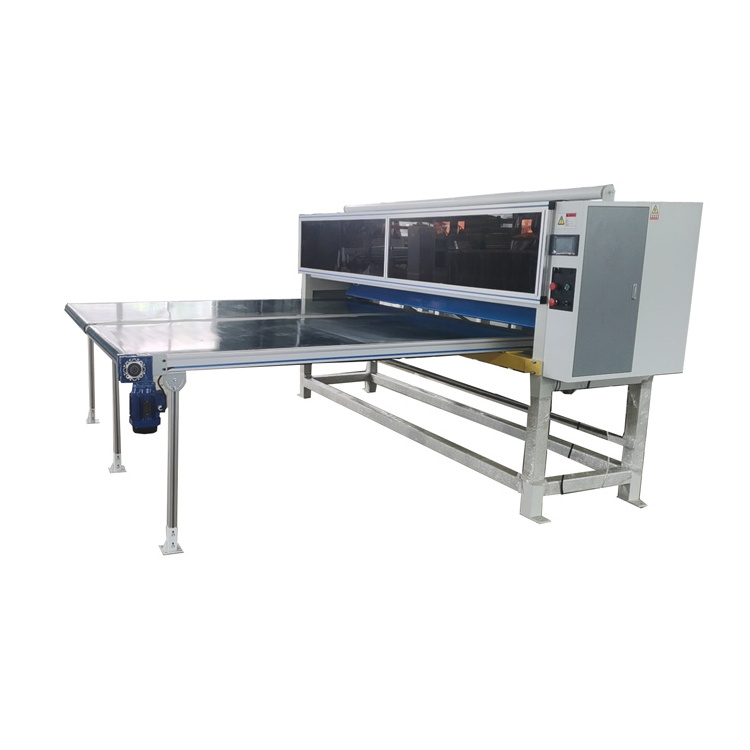

FABRIC / MATTRESS PANEL CUTTING MACHINE
SN-T10
SN-T30
1. It adopts the national standard 5-inch color touch-screen PLC man-machine interface, which is easy to operate.
2. All computer materials, electrical appliances, motors, etc. that have passed CE certification are used, which greatly extends the service life of the machine.
3. Pneumatic slitting design, the slitting knife is more convenient and safe to use.
4. Cut length and width realize electric fixed-length adjustment, and the operation is more user-friendly.
5. The feed is increased with a synchronous pressing roller, the pressure is uniform, the feed is flat, and the slitting is smoother, especially the thin material is easier to trim.
6. Photoelectric length measurement in Y direction, the length is more accurate, specially designed for sponge products with elasticity.
7. The conveyor belt is used for discharging, which is convenient for stacking and saves labor.
8. Box shape, optimized design, improve the running speed of the whole machine and the quality of the cutting knife, and the cutting efficiency is higher
|
Model
|
Size
|
Weight
|
Working Width
|
Power
|
Output
|
Cutting Thickness
|
|
SN-T10
|
3400*800*1700MM
|
400KG
|
2400-3200MM
|
1.5KW
|
10M/MIN
|
3CM
|
|
SN-T30
|
3400*3000*1780MM
|
800KG
|
2450MM
|
2.5KW
|
7M/MIN
|
8CM
|
Machine Details Picture
