Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Field maintenance and repair service
-
Brand Name:
-
Dongfeng
-
Model:
-
CLW5160XL
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
9990*2495*3850mm
-
Box Dimensions (L x W x H) (mm):
-
7400*2280*2400mm
-
Temperature Range:
-
-18~+25℃
-
Drive cabin:
-
2 seats with a bed, LHD, RHD option
-
Transported cargo:
-
drug, frozen meat, vegetable, fruit, egg, ice cream, seafood, etc
-
Box material:
-
FRP+80mm PU foam
-
Floor:
-
aluminum floor
-
Wheelbase:
-
5600mm
-
Engine:
-
Cummins 180hp, 132kW, 4500ml, 4 cylinders, water cooling,turbocharged
-
Rear lifting board:
-
Ramib brand, hydraulic type, 500~1000kg
-
Axle & tire:
-
2 axles, 6 wheels, 9.00-20 or 10.00-20, with a spare tire
-
Refrigeration unit:
-
Carrier CITIMAX 700, with China brand options
-
Others:
-
Ride side door, ventilation slots, meat hooks, rails, crash steel bar
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
16000
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Field maintenance and repair service
-
Brand Name:
-
Dongfeng
-
Model:
-
CLW5160XL
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
9990*2495*3850mm
-
Box Dimensions (L x W x H) (mm):
-
7400*2280*2400mm
-
Temperature Range:
-
-18~+25℃
-
Drive cabin:
-
2 seats with a bed, LHD, RHD option
-
Transported cargo:
-
drug, frozen meat, vegetable, fruit, egg, ice cream, seafood, etc
-
Box material:
-
FRP+80mm PU foam
-
Floor:
-
aluminum floor
-
Wheelbase:
-
5600mm
-
Engine:
-
Cummins 180hp, 132kW, 4500ml, 4 cylinders, water cooling,turbocharged
-
Rear lifting board:
-
Ramib brand, hydraulic type, 500~1000kg
-
Axle & tire:
-
2 axles, 6 wheels, 9.00-20 or 10.00-20, with a spare tire
-
Refrigeration unit:
-
Carrier CITIMAX 700, with China brand options
-
Others:
-
Ride side door, ventilation slots, meat hooks, rails, crash steel bar
CLW High Quality Dongfeng 10 tons refrigerated truck
—— Dongfeng 4x2 190PS Truck,6.8m*2.3*2.3m freezer box, 10 tons load
1. Refrigerated truck,also called freezer truck, refrigerator truck, is specially designed and produced for transporting meat, seafood, vegetable, fruits, egg, drug, vaccine, ice cream; mounted heating function refrigeration unit, it can transport and insulate cargo in cold weather and areas.
3. Capacity of our refrigerated freezer truck:
a. 500~2000kg
b. 2000~5000kg
c. 5000kg~8000kg
d. 8000kg~13000kg
e. 13000kg~20000kg
f. Over 20tons load capacity
Truck wheel drive type: van/4x2/4x4/6x2/6x4/6x6/8x2/8x4/13~15m refrigerated truck trailer.
4. Material of refrigerated freezer truck insulation box:
Outer plate: FRP, stainless steel option
Middle: 80mm PU foam, can make from 50mm~110mm option
Inner plate: FRP, stainless steel option
Floor: FRP, aluminum plate option
5. Refrigeration unit:
Structure:
Independent type : with generator, compressor, condenser and other components for seperately working, not driving by vehicle engine.
Non-independent type: power take off from engine, compressor, condenser, and other components, driving by vehicle engine.
Brand:
China made: Hanxue, Huatai, Kaili, or other famous brand in China
Imported brand: American Carrier, Thermo King, etc
Temperature:
-18 ℃ refrigeration unit, -15 ℃ refrigeration unit, -10 ℃ refrigeration unit, -5 ℃ refrigeration unit, over 0 ℃ refrigeration unit.
Clear Specifications of 10 tons refrigerated truck
| Product name | Refrigerated truck | Option |
| Model | CLW5160XLC3 | |
| Producer | CLW(ChengLi Special Automobile Co.,Ltd) | |
| Overall dimension | 9595*2500*3720(mm) | |
| Box size | 6800*2200*2300(mm) | |
| Curb weight | 8000kg | |
| Payload | 10000 kg | |
| Material of freezer box |
Outer panel: FRP Middle material: PU foam insulation layer Inner panel: FRP Floor: Aluminum |
Stainless steel |
| Refrigeration unit | HANXUE | Hanxue,Thermo King |
| Temperature range | -15℃ ~ 0 | |
| Rear tail lift | Kaizhuoli 1.5 tons lifting capacity | |
| Engine | Cumins 190HP diesel engine | |
| Fuel type | Diesel | |
| Tire model | 6 wheels,10.00-20 tires, Linglong brand | |
| Max speed | 90km/h | |
| Equippped truck chassis | ||
| Brand | Dongfeng |
Foton,Sinotruck ,electric type, trailer |
| Wheel drive | 4x2, LHD |
RHD |
| Driving cab | single row, 3 seats | |
| Wheelbase | 5600mm | |
| Engine | Cumins B190 33, 190hp turbocharged intercooled engine | |
| Axle & wheel | 2 axle, 6 wheels with a spare tire | |
| Tire specification | 10.00-20 linglong tires | |
| Emission standard | Euro 3 | Euro 4/5 |
* More details or special requirements about our 10 tons refrigerated truck, please contact us by 0086 13872883675(whatsapp/phone).

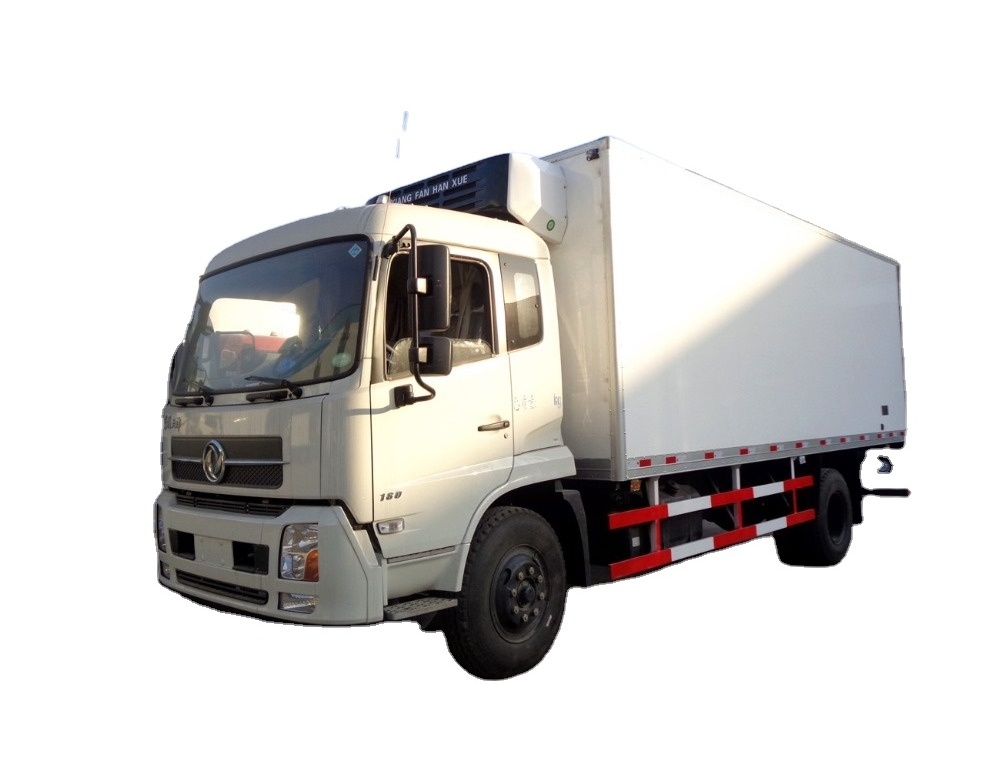

Product Images of 10 tons refrigerated truck:
Insulation box reference
If you have any special requirements, don't hesitate to tell us and we will find out solutions for you.
