Quick Details
-
Brand Name:
-
HaiKun
-
Color:
-
White/Black
-
Zirconia Content:
-
94.4%
-
Density:
-
6.0 g/cm3
-
Dimension:
-
Customized Dimensions
-
Gas Permeability:
-
0
-
Water Absorption:
-
0
-
MONS' Hardness:
-
8.2
-
Flexural Strength:
-
800 Mpa
-
Fracture Toughness:
-
9 Mpam1/2
-
Thermal Conductivity:
-
2.5 W(m.K)
Quick Details
-
Material:
-
Zirconia Ceramic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ZrO2 046
-
Brand Name:
-
HaiKun
-
Color:
-
White/Black
-
Zirconia Content:
-
94.4%
-
Density:
-
6.0 g/cm3
-
Dimension:
-
Customized Dimensions
-
Gas Permeability:
-
0
-
Water Absorption:
-
0
-
MONS' Hardness:
-
8.2
-
Flexural Strength:
-
800 Mpa
-
Fracture Toughness:
-
9 Mpam1/2
-
Thermal Conductivity:
-
2.5 W(m.K)

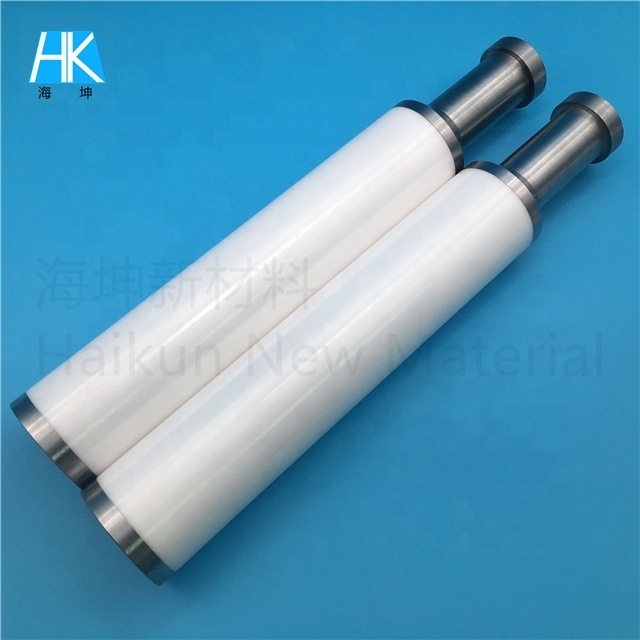

high polishing hard strong anti-acid zirconia ceramic metal with plunger shaft piston
Reputation depends on quality, quality comes from Haikun!
Zirconia Ceramic :
Zirconium oxide ceramics are white, yellow or gray when containing impurities, and generally contain HfO 2, which is not easily separated. Pure ZrO2 has three crystal states under normal pressure. The production of zirconia ceramics requires the preparation of high-purity, good dispersion properties, ultra-fine particles, narrow particle size distribution, zirconia ultrafine powder preparation methods, zirconia purification mainly chlorination and thermal decomposition, alkali metal Oxidative decomposition method, lime melting method, plasma arc method, precipitation method, colloid method, hydrolysis method, spray pyrolysis etc.
In terms of structural ceramics, zirconia ceramics are widely used in the field of structural ceramics because of their high toughness, high flexural strength and high wear resistance, excellent thermal insulation properties, and thermal expansion coefficient close to that of steel. Mainly: Y-TZP grinding ball, dispersion and grinding media, nozzle, ball valve ball seat, zirconia mold, micro fan shaft, fiber pin, fiber sleeve, wire drawing die and cutting tool, wear-resistant tool, clothing button, Cases and straps, bracelets and pendants, ball bearings, golf ball hitters and other room temperature wear-resistant components.
In terms of functional ceramics, its excellent high temperature resistance is used as an induction heating tube, refractory material, and heating element. Zirconia ceramics have sensitive electrical performance parameters and are mainly used in oxygen sensors, solid oxide fuel cells (SOFC) and high temperature heating bodies. ZrO2 has a high refractive index (N-21^22), and it can be made into a colorful translucent polycrystalline ZrO2 material by adding certain coloring elements (V2O5, MoO3, Fe2O3, etc.) to the ultrafine zirconia powder. , like natural gemstones, sparkling with colorful light, can be made into a variety of decorations. In addition, zirconia is widely used in thermal barrier coatings, catalyst carriers, medical, health care, refractory materials, textiles, and the like.
Data Sheet↓
| 3mol Yttria-stabilized Zirconia Ceramic Properties | ||
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | White, Black or Customized | |
| Density | g/cm3 | 6.00 |
| Zirconia Content | % | 94.4 |
| Gas Permeability | 0 | |
| Water Absorption | 0 | |
| Crystal Size | um | 0.5 |
| Mechanical Properties | ||
| Moh's hardness | Grade | 8.2 |
| Rockwell Hardness(45N) | HRA | 78 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm2) | 11.5(1175) |
| Flexural Strength (20°C) | Mpa | 800 |
| Compressive Strength (20°C) | Mpa | 2000 |
| Modulus of Elasticity (20°C) | Gpa | >200 |
| Fracture Toughness (20°C) | Mpam1/2 | 9 |
| Thermal Properties | ||
| Thermal Conductivity (20°C-400°C) | W/m.K | 2.5 |
| Thermal Expansion Coefficient | 10-6/°C | 9.6 |
| Thermal Shock Resistance | T°C | 250 |
3mol Yttria-stabilized Zirconia Ceramic Composition
Properties
High strength, high hardness, crash resistance, wear resistance, corrosion resistance, smooth surface, low thermal conductivity, nonmagnetic etc.
Application industry:
Machinery, fiber optic, knife, medical, food, petroleum etc.
Specific application:
plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.
