Quick Details
-
Brand Name:
-
Tianbao
-
Model Number:
-
DHB
-
Material:
-
Copper
-
Cross Section:
-
6, 10, 16, 25, 35 square mm
-
Number of Conductor:
-
3/4/6
-
Color:
-
Orange, Orange
-
Insulation:
-
PVC
-
Housing Material:
-
PVC
-
Type:
-
Flexible, no joint
-
Application:
-
Cranes,monorails,electric hoists,electric tools.stacking systems
Quick Details
-
Voltage:
-
600V
-
Current:
-
30A-140A
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Tianbao
-
Model Number:
-
DHB
-
Material:
-
Copper
-
Cross Section:
-
6, 10, 16, 25, 35 square mm
-
Number of Conductor:
-
3/4/6
-
Color:
-
Orange, Orange
-
Insulation:
-
PVC
-
Housing Material:
-
PVC
-
Type:
-
Flexible, no joint
-
Application:
-
Cranes,monorails,electric hoists,electric tools.stacking systems
Material
Conducive material: 99.99% Oxygen-free copper
Housing material: PVC (heat resistance property 70℃--40℃ below)
Features
· Quick and Easy Assembly
· Excellent Electrical Conductivity
· CAD / CAM Designed for Stable Quality
The a dvantages of the Electric Panel Bus Bar:
1. 99.99% Oxygen-free copper
2. No joint, continuous power supply
3. Small space, Low noise
4. Low voltage drop
5. Stable operation, fast speed, good conductivity and contact performance
6. Easy to install, replace and transport
7. Long service life
8. The minimum bend radius reaches 750mm
Application
With advanced technology, skillful manufacture and beautiful design, the Electric Panel Bus Bar is suitable for machinery works, small size steel factory,low powerhoisting, c ranes, monorails, electric hoists, electric tools, stacking systems
and wildly used in the Lifting industry. (ambient temperature is < 55℃)
Technical Parameter
|
3P Electric Panel Bus Bar |
||||
|
Model |
Specification |
Length(m) |
Weight(kg) |
Product Code |
|
DHB3-6/30 |
6mm 2 - 30A |
1m |
0.45 |
68HB5506 |
|
DHB3-10/50 |
10 mm 2 - 50A |
1m |
0.58 |
68HB5510 |
|
DHB3-16/80 |
16 mm 2 - 80A |
1m |
0.75 |
68HB5516 |
|
DHB3-25/120 |
25 mm 2 - 120A |
1m |
1.00 |
68HB5525 |
|
DHB3-35/140 |
35 mm 2 - 140A |
1m |
1.25 |
68HB5535 |
|
4P Electric Panel Bus Bar |
||||
|
Model |
Specification |
L ength(m) |
W eight(kg) |
Product Code |
|
DHB4-6/30 |
6mm 2 -30A |
1m |
0.62 |
68HB7506 |
|
DHB4-10/50 |
10 mm 2 -50A |
1m |
0.83 |
68HB7510 |
|
DHB4-16/80 |
16 mm 2 -80A |
1m |
1.02 |
68HB7516 |
|
DHB4-25/120 |
25 mm 2 -120A |
1m |
1.32 |
68HB7525 |
|
DHB4-35/140 |
35mm 2 - 140A |
1m |
1.45 |
68HB7535 |
|
6P Electric Panel Bus Bar |
||||
|
Model |
Specification |
L ength(m) |
W eight(kg) |
Product Code |
|
DHB6-6/30 |
6mm 2 - 30A |
1m |
0.98 |
68HB11506 |
|
DHB6-10/50 |
10 mm 2 - 45A |
1m |
1.19 |
68HB11510 |
|
DHB6-16/80 |
16 mm 2 - 75A |
1m |
1.53 |
68HB11516 |
|
DHB6-25/120 |
25 mm 2 - 125A |
1m |
2.02 |
68HB11525 |
|
DHB6-35/140 |
35 mm 2 - 160A |
1m |
2.55 |
68HB11535 |
Parts of the Electric Panel Bus Bar and Technical Data:
1. Hanger Clamp
2. End Tension& Power In

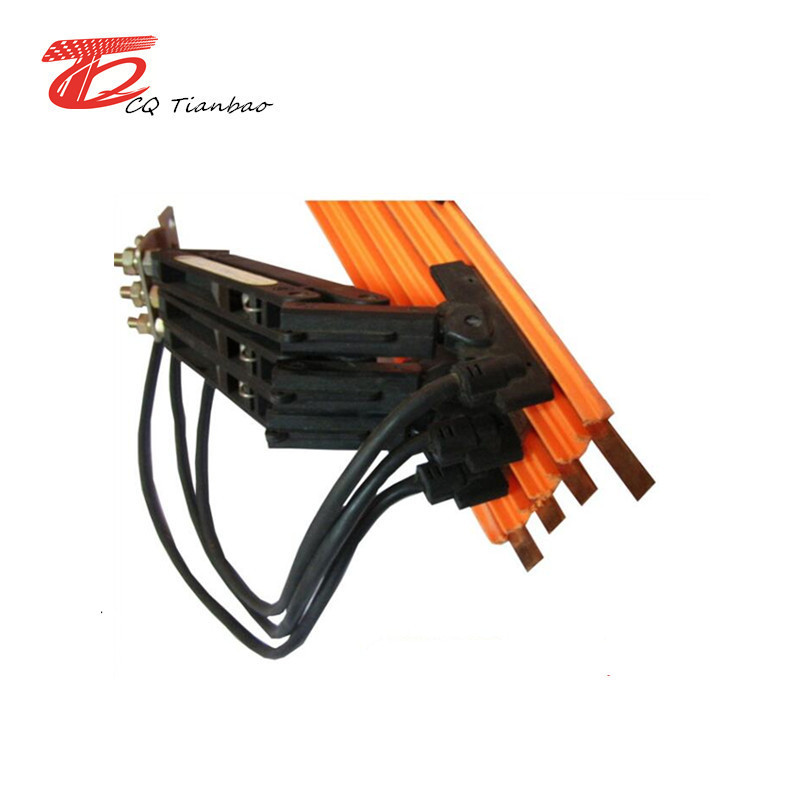

3. Current Collector
4. Middle Power Feeder
5. Fixing Bar/Tow Arm
6. Fixing Support
The Electric Panel Bus Bar for Installation Layout :
Packaging Picture 1
Packaging Picture 2
