Quick Details
-
Model Number:
-
GLJ502-25
-
Warranty:
-
1year
-
Certification:
-
CE;TUV;ISO9000
-
Voltage:
-
110V,120V,220V,380V,400V
-
design head:
-
3-9m
-
Rated power:
-
3kw-20kw
-
Water Head:
-
3-9m
-
Certificate:
-
ISO9001/CE/TUV/From-E
-
Installation method:
-
horizontal installation / vertical installation
-
Rated Voltage:
-
110v/220v/380v/400v
-
Frequency:
-
50Hz/60Hz
-
pipe Diameter:
-
DN250-300mm
-
Valve:
-
Butterfly valve
-
Rated rotated speed(r/m):
-
750-1500rpm/min
-
Keyword:
-
micro hydro turbine
Quick Details
-
Power:
-
3kW~20kW
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Forster
-
Model Number:
-
GLJ502-25
-
Warranty:
-
1year
-
Certification:
-
CE;TUV;ISO9000
-
Voltage:
-
110V,120V,220V,380V,400V
-
design head:
-
3-9m
-
Rated power:
-
3kw-20kw
-
Water Head:
-
3-9m
-
Certificate:
-
ISO9001/CE/TUV/From-E
-
Installation method:
-
horizontal installation / vertical installation
-
Rated Voltage:
-
110v/220v/380v/400v
-
Frequency:
-
50Hz/60Hz
-
pipe Diameter:
-
DN250-300mm
-
Valve:
-
Butterfly valve
-
Rated rotated speed(r/m):
-
750-1500rpm/min
-
Keyword:
-
micro hydro turbine
Replace The Kaplan Turbine With a Low Head Pipe To Install a 3kw To 20kw Tubular Hydro Turbine
Our main products included:
1.Kaplan hydro turbine generators series.
2.Turgo hydro turbine generators series,e.g. vertical type horizontal type.
3.Tubular hydro turbine generators series ,e.g. Bulb type and shaft extension type.
4.Francis hydro turbine generators series.
5.Pelton hydro turbine generators series and double turbine generators series and so on.
6.Other auxiliary equipment for hydropower station, such as generator, control panel, governor, hydroturbine control valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc
Product features:
1, Power station from water to water direction is basically the axial direction penetration.such as bulb turbine hydro power station of the feed water control and outlet pipe bend, simple shape, the path of circulation of hydraulic damage reduction,convenient construction .
2, Tubular turbine has high flow ability and larger specific speed, so when the head and power are under the same conditions,tubular turbine diameter is about 10% smaller than T urn to paddle
3,Hydro-power unit structure is compact,compared with the same specifications of paddle unit,Its size is small,and it can be decorated in dam body,cancel the complex diversionsystem,reduce the construction area of factory building,reduce the excavated volume and the amount of concrete,according to the relevant data analysis,construction cost can be saved 20%-30%.
4, Tubular turbine work for reversible pump turbine running, d ue to the in and out of the water without a sharp turn working condition of pump and the turbine can get a better hydraulic performance.Such as tidal power station can be two way with applications in power generation,pumping,drainage and other three kinds of functions.Therefore,it is suitable for comprehensive exploitation and utilization of low head hydraulic resource.
5,Hydro - power is short in construction period, and results fast generally than vertical axial-flow hydro - power station .
Product parameters:
| Tubular Hydro turbine performance data and supporting table | ||||||||||
| Model | Turbine Parameters | Generator Parameters | Driving mode | Speed Way | Water Intake | |||||
| Design head(m) | Under the design head | Design speed (r/min) | The power of generator | Rated speed(r/min) | Vavel control | Guide vane control | Diameter (mm) | |||
| Flow rate (m3/s) | The output(kw) | |||||||||
| 502-25 | 2 | 0.14 | 2 | 735 | 2 | 750 | Direct connection | 300 | ||
| 2.5 | 0.16 | 3 | 822 | 3 | 750 | |||||
| 3 | 0.17 | 4 | 901 | 4 | 1000 | |||||
| 3.5 | 0.19 | 5 | 973 | 5 | 1000 | |||||
| 4 | 0.2 | 7 | 1000 | 8 | 1000 | Direct connection | ||||
| 4.5 | 0.21 | 8 | 1103 | 8 | 1000 | |||||
| 5 | 0.22 | 9 | 1163 | 10 | 1000 | |||||
| 5.5 | 0.23 | 11 | 1220 | 10 | 1000 | |||||
| 6 | 0.24 | 12 | 1274 | 12 | 1000 | Direct connection | ||||
| 6.5 | 0.25 | 14 | 1326 | 12 | 1500 | |||||
| 7 | 0.26 | 15 | 1376 | 15 | 1500 | |||||
| 7.5 | 0.27 | 17 | 1424 | 15 | 1500 | |||||
| 8 | 0.28 | 19 | 1471 | 20 | 1500 | |||||
| 8.5 | 0.29 | 21 | 1516 | 20 | 1500 | |||||

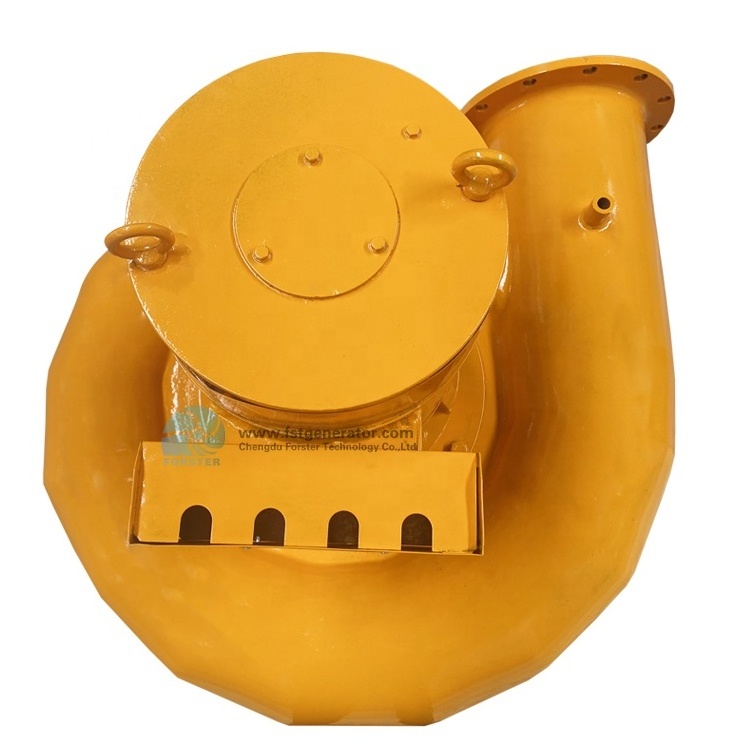

Product pictures:
