Quick Details
-
Voltage:
-
380V or Clients Local Standard
-
Dimension(L*W*H):
-
2600*1400*1700mm
-
Weight:
-
600 KG
-
Product name:
-
Gold trommel screen
-
Application:
-
Gold Washing And screening
-
Feeding size:
-
0-1000mm
-
Capacity:
-
50-1000tph
-
Installation:
-
Engineer Guide
-
After sale service:
-
Life-long Service
-
Quality:
-
High Reputation
-
Testing:
-
Before shipping
-
Price:
-
Negotible
-
Keywords:
-
Gold trommel
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JINCHUAN
-
Voltage:
-
380V or Clients Local Standard
-
Dimension(L*W*H):
-
2600*1400*1700mm
-
Weight:
-
600 KG
-
Product name:
-
Gold trommel screen
-
Application:
-
Gold Washing And screening
-
Feeding size:
-
0-1000mm
-
Capacity:
-
50-1000tph
-
Installation:
-
Engineer Guide
-
After sale service:
-
Life-long Service
-
Quality:
-
High Reputation
-
Testing:
-
Before shipping
-
Price:
-
Negotible
-
Keywords:
-
Gold trommel

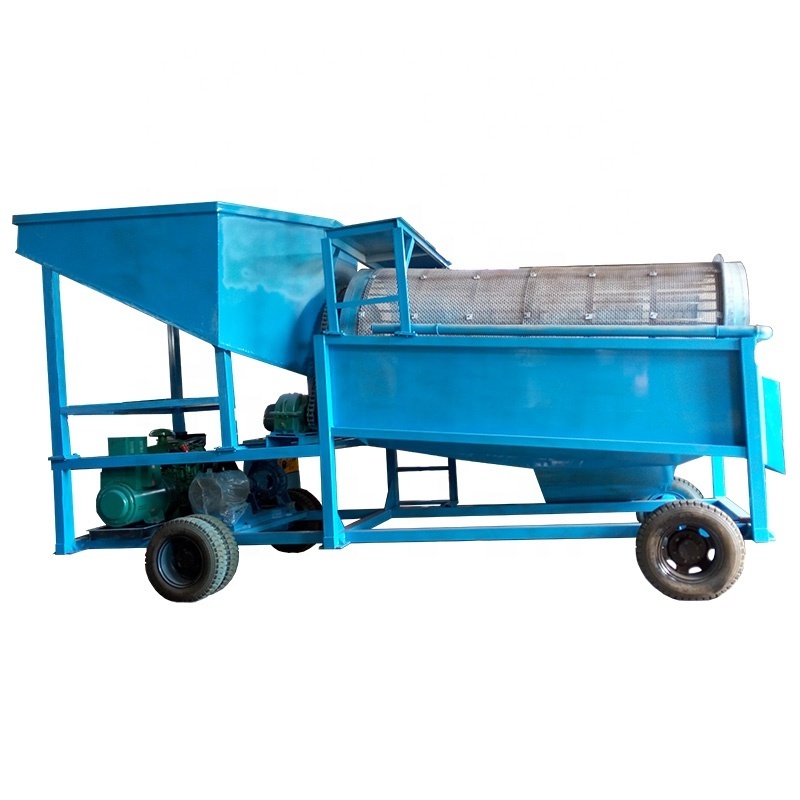

High efficiency rotary trommel screen gold washing and processing plant
High efficiency rotary trommel screen gold washing and processing plant
Gold trommel screen machine provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Main Features of Gold Trommel
♦ The gold washing plant offers the portability of smaller hand fed systems, while maintaining large scale production with a smaller footprint. Once on site, setup takes only minutes and can be accomplished by a single person.
♦ The size and capacity can be customized. As we are the manufacturer, we can help you design the suitable equipment in your plant. This equipment includes the washing function and sieving function. The length of washing part and sieving part can be made as your request.
♦ Mobile with wheels, can free transport/move to other lace when finish the job. It is suit to small scale / large mine processing.
♦ Diesel engine / electric motor, can work in no power field.
♦ Bigger hopper,single / double layer screen designed.
♦ Water pump with water pipe release high pressure water.
♦ It is popular in African, Asian, South American due to its easy to move and easy to operate.
♦ It is low cost, miner just cost a little budget to buy one. www.gelinmachinery.com Many miner came to our factory to buy it for their alluvial gold, sand mineral.
Trommel screen parameter:
|
Model |
Capacity ( t/h ) |
Power ( kw ) |
Diameter ( mm ) |
Length ( mm ) |
Dimension(mm) |
Weight ( T ) |
|
GTS1015 |
50 |
3 |
1000 |
1500 |
2600*1400*1700 |
2.2 |
|
GTS1020 |
100 |
4 |
1000 |
2000 |
3390*1400*2140 |
2.8 |
|
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146*1600*2680 |
4.2 |
|
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460*1900*2820 |
5.1 |
|
GTS1545 |
350 |
11 |
1500 |
4500 |
5960*1900*3080 |
6 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500*2350*4000 |
7.5 |
|
GTS2055 |
600 |
22 |
2000 |
5500 |
7500*2550*4800 |
9.6 |
|
GTS2265 |
800 |
30 |
2200 |
6500 |
8500*2750*5000 |
12.8 |
Trommel screen appication:
♦Gold mining plant for alluvial gold, placer gold, gold sand
♦Gold processing plant for river dirt gold with clay
♦Working together with small sluice box or small shaking table for gold recovery
