Quick Details
-
Brand Name:
-
FFI
-
Power (kW):
-
7
-
Weight (KG):
-
2300 KG
-
Product name:
-
Nail making machine set automatic for concrete nails
-
Application:
-
Hardware industry
-
Certification:
-
CE
-
Advantage1:
-
High Speed
-
Advantage2:
-
Centered Nail Head
-
Nail diameter(mm):
-
2.0-3.0
-
Capacity:
-
800pcs/min
-
Nail length (mm):
-
32-50mm
-
Package:
-
Plywood carton
-
Brand:
-
FFI
Quick Details
-
Production Capacity:
-
50 sets/month
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
FFI
-
Power (kW):
-
7
-
Weight (KG):
-
2300 KG
-
Product name:
-
Nail making machine set automatic for concrete nails
-
Application:
-
Hardware industry
-
Certification:
-
CE
-
Advantage1:
-
High Speed
-
Advantage2:
-
Centered Nail Head
-
Nail diameter(mm):
-
2.0-3.0
-
Capacity:
-
800pcs/min
-
Nail length (mm):
-
32-50mm
-
Package:
-
Plywood carton
-
Brand:
-
FFI
2023 Nail making machine set automatic nail making machine for concrete nails
Product Description
Characteristics
1.Shorter stroke (12mm), traditional machine around 100mm
a.Stable performance, defective rate less than 1/100000
b.Lower mechanical wear
c.Gripping dies and punches are more durable.
2.The nail length can be well controlled.
a.The machine equipped with sensor for detecting longer or shorter nails
b.Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.
3.Metal scraps can be separated with nails very well
a.Effectively protect the nail conveying belt
b.Ensure the good shape nail head
4. High quality nails: consistent nail head and shank length (tolerance 0.5mm), defective rate 1/100000, which is very good for
coil nail collating and strip nail making.
5. Easy operation and high efficient: the machine is fully automatic and runs stably.
6. Low use-cost and tooling cost.
7. Automatic oiling system with oil pump
8. With seven alarming sensors to protect the machine and ensure the nail quality
9. Low maintenance cost
10. Save energy and labor cost
a.Stable performance, defective rate less than 1/100000
b.Lower mechanical wear
c.Gripping dies and punches are more durable.
2.The nail length can be well controlled.
a.The machine equipped with sensor for detecting longer or shorter nails
b.Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.
3.Metal scraps can be separated with nails very well
a.Effectively protect the nail conveying belt
b.Ensure the good shape nail head
4. High quality nails: consistent nail head and shank length (tolerance 0.5mm), defective rate 1/100000, which is very good for
coil nail collating and strip nail making.
5. Easy operation and high efficient: the machine is fully automatic and runs stably.
6. Low use-cost and tooling cost.
7. Automatic oiling system with oil pump
8. With seven alarming sensors to protect the machine and ensure the nail quality
9. Low maintenance cost
10. Save energy and labor cost
Specification
|
Model No./Name
|
Specification
|
|
Unit Price FOB Shanghai
|
|
|
FFI-ZDJ-X130B High Speed Nail Making Machine(Suitable for concrete nails )
|
Nail dia. range
|
2.4-5.0mm
|
USD27800 FOB SHANGHAI
|
|
|
|
Nail length range
|
50-130mm
|
|
|
|
|
Nail making speed
|
≤680pcs/min
|
|
|
|
|
Rated power
|
10kw
|
|
|
|
|
Dimensions
|
1550*13020*1300
|
|
|
|
|
Weight
|
4200kgs
|
|
|
|
FFI-ZDJ-X50 High Speed Nail Making Machine
|
Nail dia. range
|
2.0-3.0mm
|
USD19000 FOB SHANGHAI
|
|
|
|
Nail length range
|
32-50mm
|
|
|
|
|
Nail making speed
|
≤800pcs/min
|
|
|
|
|
Rated power
|
7kw
|
|
|
|
|
Dimensions
|
1500*1100*1220
|
|
|
|
|
Weight
|
2300kgs
|
|
|
|
FFI-ZDJ-X90 High Speed Nail Making Machine
|
Nail dia. range
|
2.0-3.5mm
|
USD18000 FOB SHANGHAI
|
|
|
|
Nail length range
|
45-90mm
|
|
|
|
|
Nail making speed
|
≤760 pcs/min
|
|
|
|
|
Rated power
|
7kw
|
|
|
|
|
Dimensions
|
1500*1320*1250
|
|
|
|
|
Weight
|
2800
|
|
|

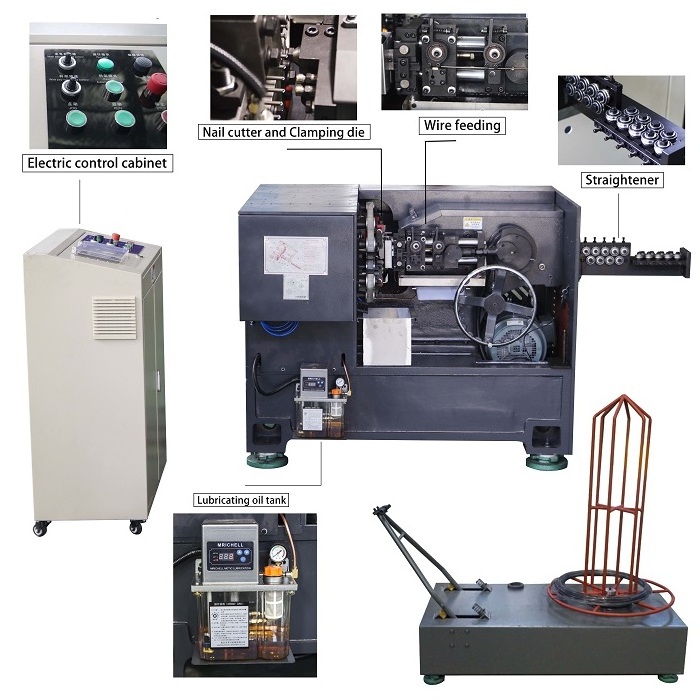

Details Images
Spares
Certifications
Packing & Delivery
Plywood carton with pallet
