- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
12.1
-
Key words:
-
wooden shovel handle round wood rod Broom wood stick making machine
-
Min.length:
-
300mm
-
Max.length:
-
5000mm
-
Rotary cutting excess stock material:
-
1pcs
-
Raw material for plate:
-
1-6
-
Processing diameter range:
-
4-38mm
-
Feed motor power:
-
1.1kw
-
Feed speed:
-
6-30m/min
-
Max.tool diameter:
-
100mm
-
Tool spindle speed:
-
8500r/min
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWEEK
-
Weight (KG):
-
500 KG
-
Power (kW):
-
12.1
-
Key words:
-
wooden shovel handle round wood rod Broom wood stick making machine
-
Min.length:
-
300mm
-
Max.length:
-
5000mm
-
Rotary cutting excess stock material:
-
1pcs
-
Raw material for plate:
-
1-6
-
Processing diameter range:
-
4-38mm
-
Feed motor power:
-
1.1kw
-
Feed speed:
-
6-30m/min
-
Max.tool diameter:
-
100mm
-
Tool spindle speed:
-
8500r/min
Products Description

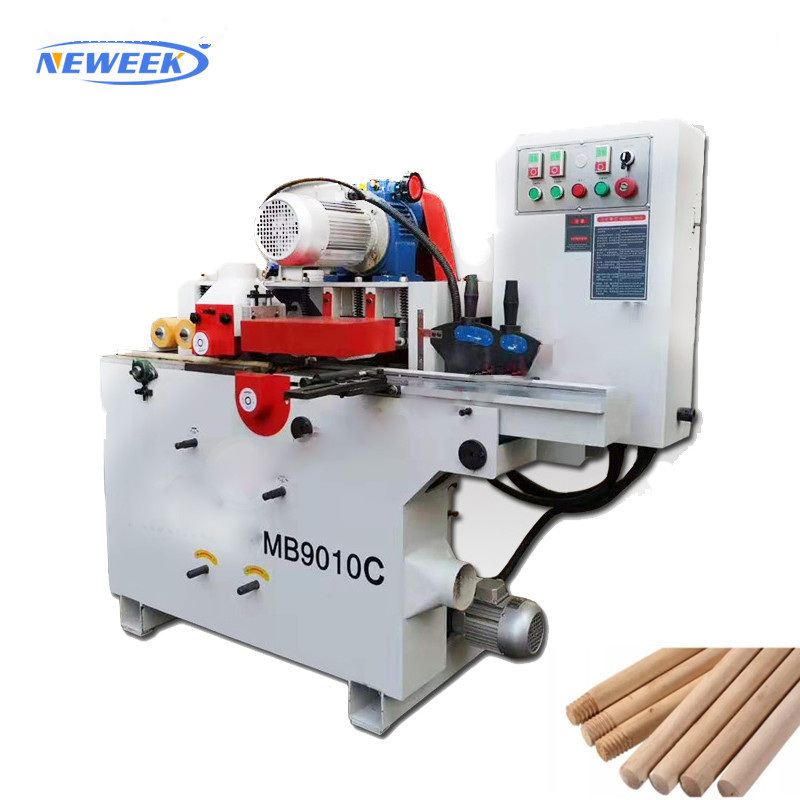

NEWEEK industrial Automatic high speed wooden shovel handle round wood rod Broom wood stick making machine
The high-speed round bar machine is a wooden board processing round stick machine. It adopts two functions of automatic feeding and automatic return. It can be used to process wooden uneven bars, martial arts sticks and other sports equipment, rolling pins, mine pillars, stair railings and other round wooden bars. The amount of cutting on both sides can be adjusted, and multiple sticks can be processed at one time.
Specification
Model
|
MB9010T
|
Min.length
|
300mm
|
Max.length
|
5000mm
|
Rotary cutting excess stock material
|
1pcs
|
Raw material for plate
|
1-6
|
Processing diameter range
|
4-38mm
|
Feed motor power
|
1.1kw
|
Feed speed
|
6-30m/min
|
Uper knife axis motor power
|
5.5kw
|
Down knife axis motor power
|
5.5kw
|
Max.tool diameter
|
100mm
|
Tool spindle speed
|
8500r/min
|
Extraction outlet size
|
150mm
|
Spindle diameter
|
30mm
|
Total power
|
12.1kw
|
Size
|
1200*800*1300mm
|
1. Multi-specification tool,Different sizes of tools produce different sizes of round rods. You can choose the size of the tool and only have one set of tools.
2. High power motor,Cooper wires National Standard Motor, motor retarding device 1.1kw, total power 12.1kw.
3. Control panel,Multiple buttons for simple operation and repair Ergonomic design, restore simple woodworking production
2. High power motor,Cooper wires National Standard Motor, motor retarding device 1.1kw, total power 12.1kw.
3. Control panel,Multiple buttons for simple operation and repair Ergonomic design, restore simple woodworking production
Details Images

1. Gear chain synchronous drive, the running strength is uniform and stable, and the drive is smooth and smooth.
2. Automatic Feeding wheel,Power automatic processing feeding/discharging wheel diameter 60mm, inner hole 25mm
3. Anti-rebound device,Tilt the card, hold the raw materials stably, do not go backwards, operate safely, and protect the personal safety of employees.
4. Reasonable wiring, professional electrician wiring, in line with safe circuit standards, meets the safety line standard worry-free burn-out circuit
2. Automatic Feeding wheel,Power automatic processing feeding/discharging wheel diameter 60mm, inner hole 25mm
3. Anti-rebound device,Tilt the card, hold the raw materials stably, do not go backwards, operate safely, and protect the personal safety of employees.
4. Reasonable wiring, professional electrician wiring, in line with safe circuit standards, meets the safety line standard worry-free burn-out circuit


Packing&Delivery
Packing:
Usually, we use standard export wooden cases for packing this machine. We will first wrap the entire machine with a plastic film to prevent the machine from being damaged and scratched. Then fix the fuselage with a wooden box to prevent the machine from being bumped and damaged during transportation. If you have special requirements, you can contact us.
Delivery:
For the machine, we support TNT, DHL, FedEx, UPS. If you need, we also support delivery by ship. We can also deliver the machine to your agent in China if you have.
Usually, we use standard export wooden cases for packing this machine. We will first wrap the entire machine with a plastic film to prevent the machine from being damaged and scratched. Then fix the fuselage with a wooden box to prevent the machine from being bumped and damaged during transportation. If you have special requirements, you can contact us.
Delivery:
For the machine, we support TNT, DHL, FedEx, UPS. If you need, we also support delivery by ship. We can also deliver the machine to your agent in China if you have.
Certifications
Product Process
Our services
1. The warranty period for this machine is 12 months. During the warranty period, machine parts other than wearing parts are damaged by non-human factors, we free of charge to provide new parts for replacement.
2. We have one-on-one exclusive customer service staff, 24 hours online. In order to better understand this machine, you have any questions, please feel free to contact us, we will provide you with professional answers.
3. We accept product customization. Regarding this machine, if you have special requirements, any parts, we can customize according to your requirements. It is our constant pursuit to make the products that customers are most suitable for.
Thank you for your precious time! For more information about this machine, please feel free to send me an inquiry and contact me!
2. We have one-on-one exclusive customer service staff, 24 hours online. In order to better understand this machine, you have any questions, please feel free to contact us, we will provide you with professional answers.
3. We accept product customization. Regarding this machine, if you have special requirements, any parts, we can customize according to your requirements. It is our constant pursuit to make the products that customers are most suitable for.
Thank you for your precious time! For more information about this machine, please feel free to send me an inquiry and contact me!
